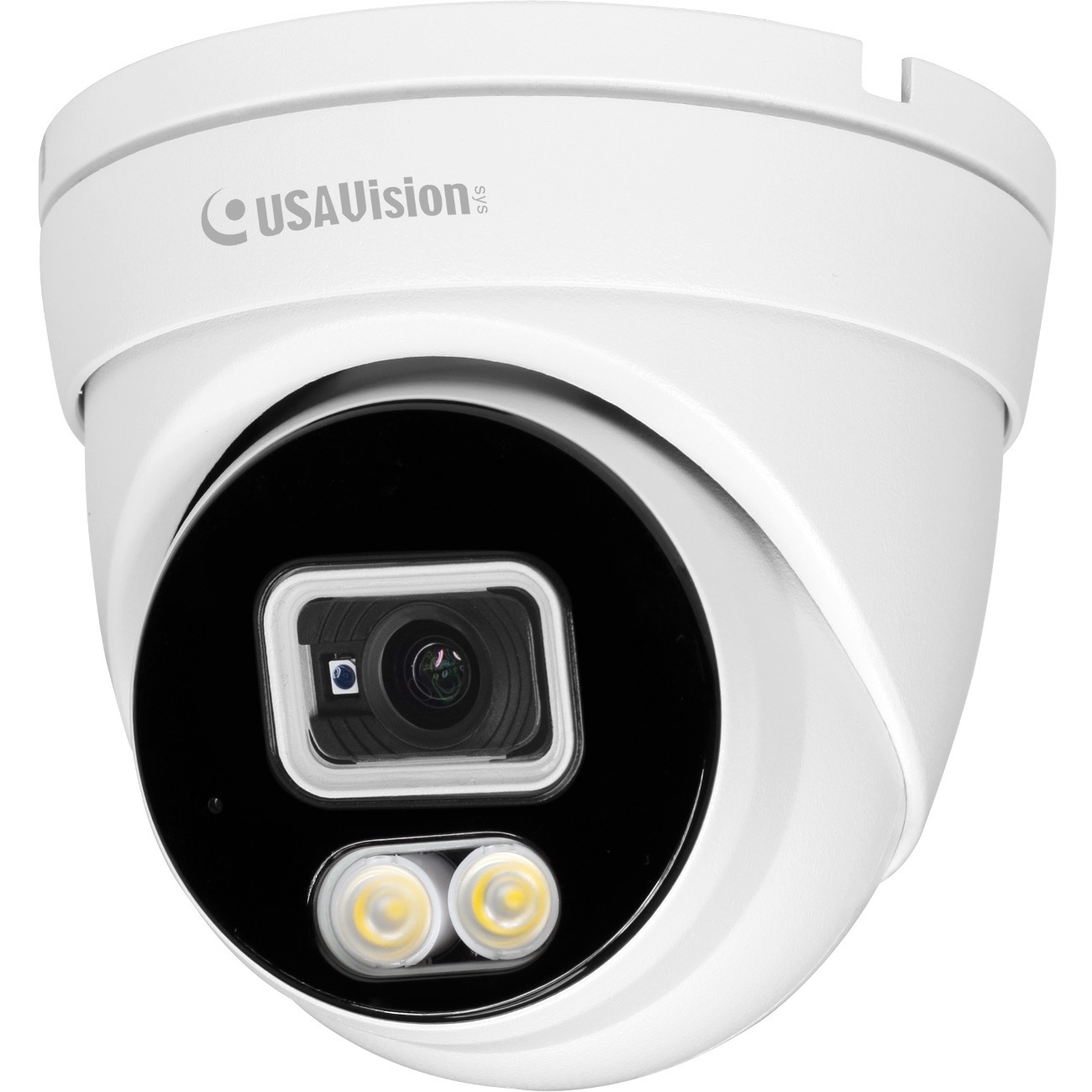

GeoVision UA-CR550F2 5 Megapixel Outdoor Surveillance Camera - Color - Dome

Name: GeoVision UA-CR550F2 5 Megapixel Outdoor Surveillance Camera - Color - Dome
Brand: VISION SYSTEMS - GEOVISION
SKU: 01YY19
Price: 107.46 USD
Availability: InStock

VISION SYSTEMS - GEOVISION

PCN#

01YY19

MFG#

UA-CR550F2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$107.46

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

98.43 ft Infrared/Color Night Vision
2592 x 1944
2.80 mm Fixed Lens
30 fps
CMOS
Wall Mount, Bracket Mount, Power Box Mount, Box Mount
IP66

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

GeoVision UA-CR550F2 5 Megapixel Outdoor Surveillance Camera - Color - Dome

Overview

Tech Specs

Specifications

Manufacturer	GeoVision, Inc
Manufacturer Part Number	UA-CR550F2
Manufacturer Website Address	http://www.geovision.com.tw
Brand Name	GeoVision
Product Model	UA-CR550F2
Product Name	5 MP Super Low Lux Full Color IR Eyeball Dome Camera
Marketing Information	UA-CR550F2 is an outdoor, 5 MP HD Analog Camera with an automatic IR-cut filter. It is built in 2 IR LEDs and 2 full-color warm LEDs to enhance the accuracy of day and night surveillance. The IR illumination can reach up to 30 m (100 ft) while the warm LED is up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). Integrated with USAVision Standalone Video Recorder (UA-XVL810, UA-XVL1610 and UA-XVR810), it supports real-time alert, event playback and more.
Product Type	Surveillance Camera

Technical Information

HD Recording	Yes
Night Vision	Yes
Night Vision Distance	98.43 ft
Night Vision Type	Infrared/Color
Number of IR LEDs	2

Display & Graphics

Image Sensor Type	CMOS
Color Supported	Color
Field of View	Horizontal: 109.7°, Vertical: 57.6°, Diagonal: 131°
Effective Camera Resolution	5 Megapixel

Video

Maximum Video Resolution	2592 x 1944
Maximum Frame Rate	30 fps
Video Signal Format	NTSC PAL
Analog Video Signal Format	TVI AHD CVI CVBS

Lens

Lens Type	Fixed
Maximum Focal Length	2.80 mm
Lens Included	Yes
Lens Mount Type	M12-mount
Maximum Aperture	f/1

Network & Communication

Connectivity Technology	Wired
Remote Management	No

Power Description

Input Voltage

12 V DC

Physical Characteristics

Mount Type	Wall Mount Bracket Mount Power Box Mount Box Mount
Form Factor	Dome
Diameter	3.9"
Weight (Approximate)	14.46 oz

Environmental Conditions

Minimum Operating Temperature	-22°F (-30°C)
Maximum Operating Temperature	131°F (55°C)
Maximum Operating Humidity	95%

Miscellaneous

Features	Built-in IR LED Built-in Microphone Ingress Protection Removable IR Cut-off Filter Day/Night Built-in Infrared Illuminator 2D Digital Noise Reduction (2DNR) Auto Gain Control Automatic White Balance Back Light Compensation (BLC)
Indoor/Outdoor	Outdoor
Package Contents	5 MP Super Low Lux Full Color IR Eyeball Dome Camera Screw Kit Drill Template Paster Download Guide
Ingress Protection Rating	IP66
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
