12MP H.265 SUPER LOW LUX WDR IR FISHEYE

Name: 12MP H.265 SUPER LOW LUX WDR IR FISHEYE
Brand: VISION SYSTEMS - GEOVISION
SKU: JT9042
Price: 381.68 USD
Availability: InStock

VISION SYSTEMS - GEOVISION

PCN#

JT9042

MFG#

125-RFER127-0010

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$381.68

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

32.81 ft Infrared Night Vision
H.265, H.264
3840 x 3000
1.60 mm Fixed Lens
15 fps
CMOS
Fast Ethernet
Ceiling Mount, Wall Mount, Desk Mount
IP66
Audio Support
Day/Night, Built
in IR LED, Ingress Protection, Wide Dynamic Range, HTTPS Encryption, Privacy Masking, Privacy Protection, Password Protection, White Balance, Automatic White Balance, Gain Control

Product Condition: New and Factory Fresh

Limited Warranty24 Month

Shipping Weight: 1 lbs.

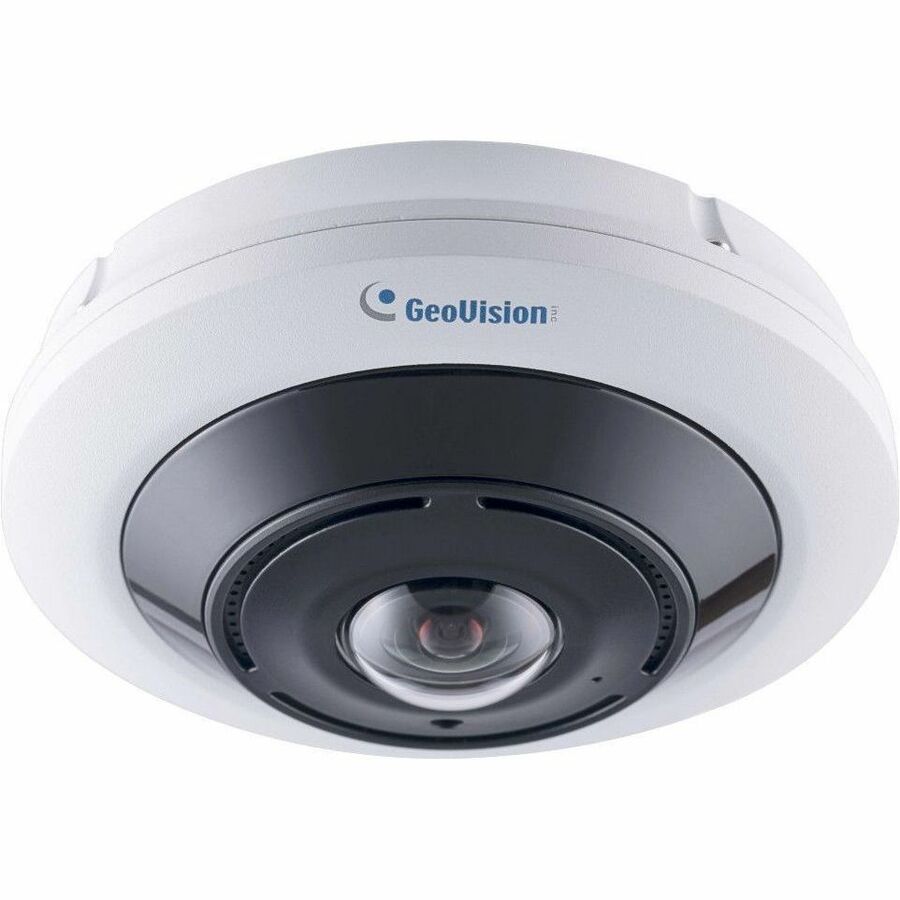

GeoVision GV-RFER12700 12 Megapixel Outdoor Network Camera - Color - Fisheye

Overview

Tech Specs

Specifications

Manufacturer	GeoVision, Inc
Manufacturer Part Number	125-RFER127-0010
Manufacturer Website Address	http://www.geovision.com.tw
Brand Name	GeoVision
Product Model	GV-RFER12700
Product Name	GV-RFER12700 12MP H.265 Super Low Lux WDR IR Fisheye IP Camera
Marketing Information	GV-RFER12700 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths. The camera adheres to IP66 standard and can be powered through PoE.
Product Type	Network Camera

Technical Information

HD Recording	Yes
Night Vision	Yes
Night Vision Distance	32.81 ft
Night Vision Type	Infrared
Number of IR LEDs	3
Camera Iris	Fixed
Infrared (IR) Cut-off Filter	Yes
Languages Support	English German Spanish French Japanese Italian Portuguese Russian Turkish Traditional Chinese Korean

Display & Graphics

Image Sensor Type	CMOS
Image Sensor Size	1/2.3"
Color Supported	Color
Field of View	Horizontal FOV: 180°
Effective Camera Resolution	12 Megapixel

Video

Video Formats	H.265 H.264
Maximum Video Resolution	3840 x 3000
Maximum Frame Rate	15 fps

Audio

Audio Support

Yes

Lens

Lens Type	Fixed
Maximum Focal Length	1.60 mm
Lens Included	Yes
Lens Mount Type	M12-mount
Maximum Aperture	f/2

Exposure

Shortest Shutter Speed	1/30000 Second
Longest Shutter Speed	1 Second

Network & Communication

Connectivity Technology	Wired
Ethernet Technology	Fast Ethernet
Protocols	802.1X DDNS DHCP DNS FTP HTTP HTTPS IPv4 IPv6 NTP ONVIF RTP/RTSP SMTP SNMP TCP UPnP
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Maximum Power Consumption	9.60 W
Input Voltage	12 V DC
Power Source Type	DC PoE

Physical Characteristics

Mount Type	Ceiling Mount Wall Mount Desk Mount
Form Factor	Fisheye
Diameter	4.7"
Weight (Approximate)	14.11 oz

Environmental Conditions

Minimum Operating Temperature	-31°F (-35°C)
Maximum Operating Temperature	140°F (60°C)
Maximum Operating Humidity	90%

Miscellaneous

Features	Day/Night Built-in IR LED Ingress Protection Wide Dynamic Range HTTPS Encryption Privacy Masking Privacy Protection Password Protection White Balance Automatic White Balance Gain Control
Indoor/Outdoor	Outdoor
Package Contents	GV-RFER12700 12MP H.265 Super Low Lux WDR IR Fisheye IP Camera Waterproof Rubber Set Screw Kit Drill Template Paster Download Guide
Ingress Protection Rating	IP66
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

24 Month
