Geist rPDU MN03E1R1-12CF18-3TL6A0H10-S 12-Outlets PDU

Name: Geist rPDU MN03E1R1-12CF18-3TL6A0H10-S 12-Outlets PDU
Brand: VERTIV
SKU: JL0402
Price: 2069.14 USD
Availability: InStock

VERTIV

PCN#

JL0402

MFG#

VP4N6019

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,069.14

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

rPDU | Monitored Unit Level | 60A | 240/415V WYE | 34.5kW | Vertical | (36) Combination C13/C19 | 10ft power cord with 3P+N+E (IP67) | Black Powder Coat

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years.

Shipping Weight: 19 lbs.

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	VP4N6019
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Geist
Product Series	rPDU
Product Model	MN03E1R1-12CF18-3TL6A0H10-S
Product Name	rPDU MN03E1R1-12CF18-3TL6A0H10-S 12-Outlets PDU

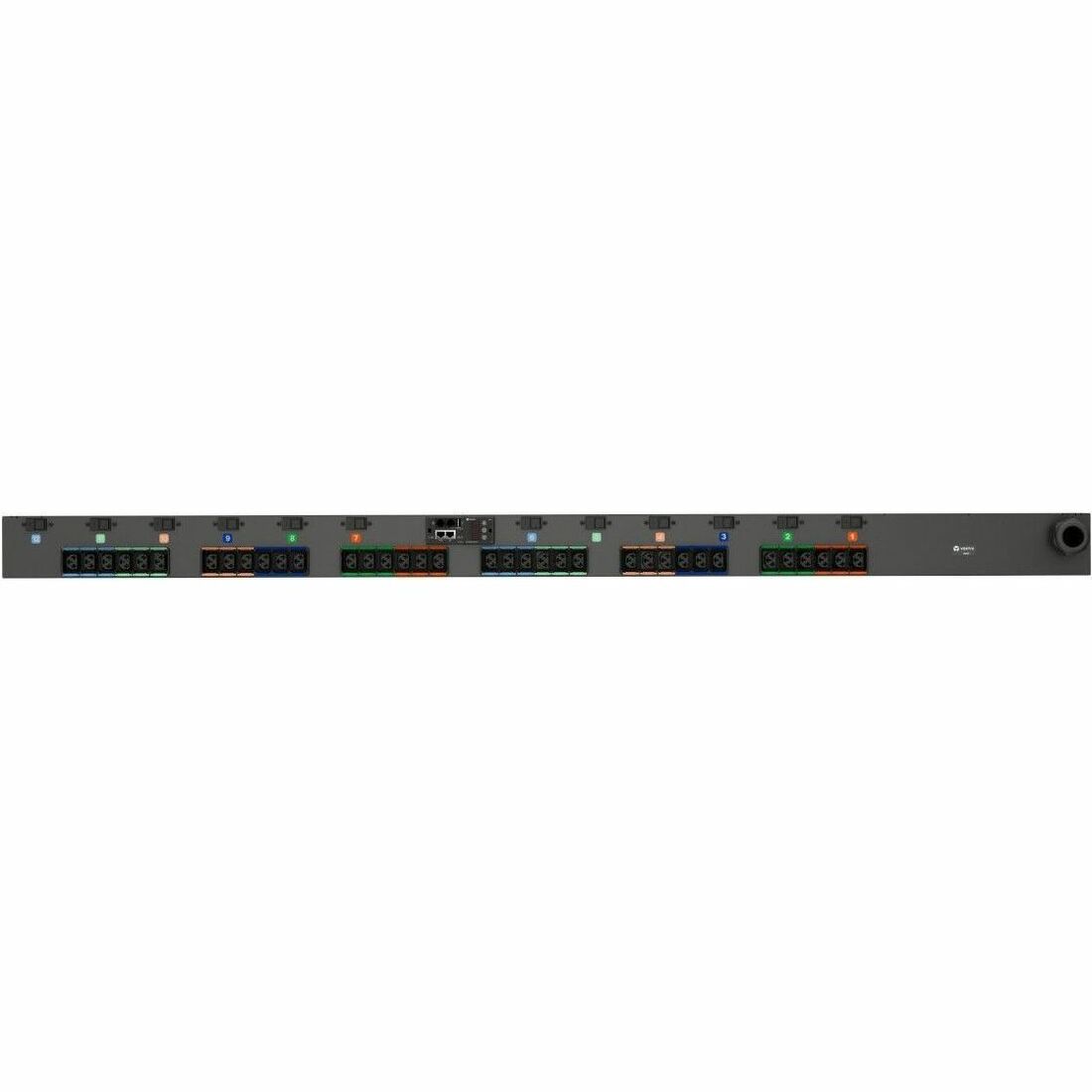

Marketing Information	The Vertiv Geist VP4N6019 is a monitored unit rack power distribution unit (rPDU). It is a 60A, 240V/415V WYE, 0U, vertical rPDU with input power monitoring with 36 Combination C13/C19 outlets and a 3P+N+E (IP67) plug providing 34.5kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD) provides unit level monitoring, as well as serial communication and environmental monitoring. The dual ethernet ports simplify management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. These UL-listed, TAA-Compliant monitored rPDU are individually tested for functionality and reliability, and comes with a standard three-year warranty, which can be extended to five years if registered within 120 days after purchase.
Product Type	PDU

Technical Information

PDU Type	Monitored
Plug/Connector Type	NEMA L6-30P
Plug/Connector Detail	1 x NEMA L6-30P
Receptacle Type	Combination C13/C19
Receptacle Detail	36 x Combination C13/C19
Protection Type	Overcurrent Protection Double Pole Circuit Breaker
Features	LED Display

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	208 V AC
Power Rating (Watt)	4900 W
Input Current	60 A

Management

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Other
Product Color	Black Powder Coat
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Hot-swappable
Rack Height	1U
Height	66.3"
Width	3.8"
Depth	3"

Miscellaneous

Package Contents	rPDU MN03EPB1-36CF13-6PS56D0A10-S 36-Outlets PDU Adjustable Mount Brackets
Application/Usage	IT Equipment
Country of Origin	United States
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years.
