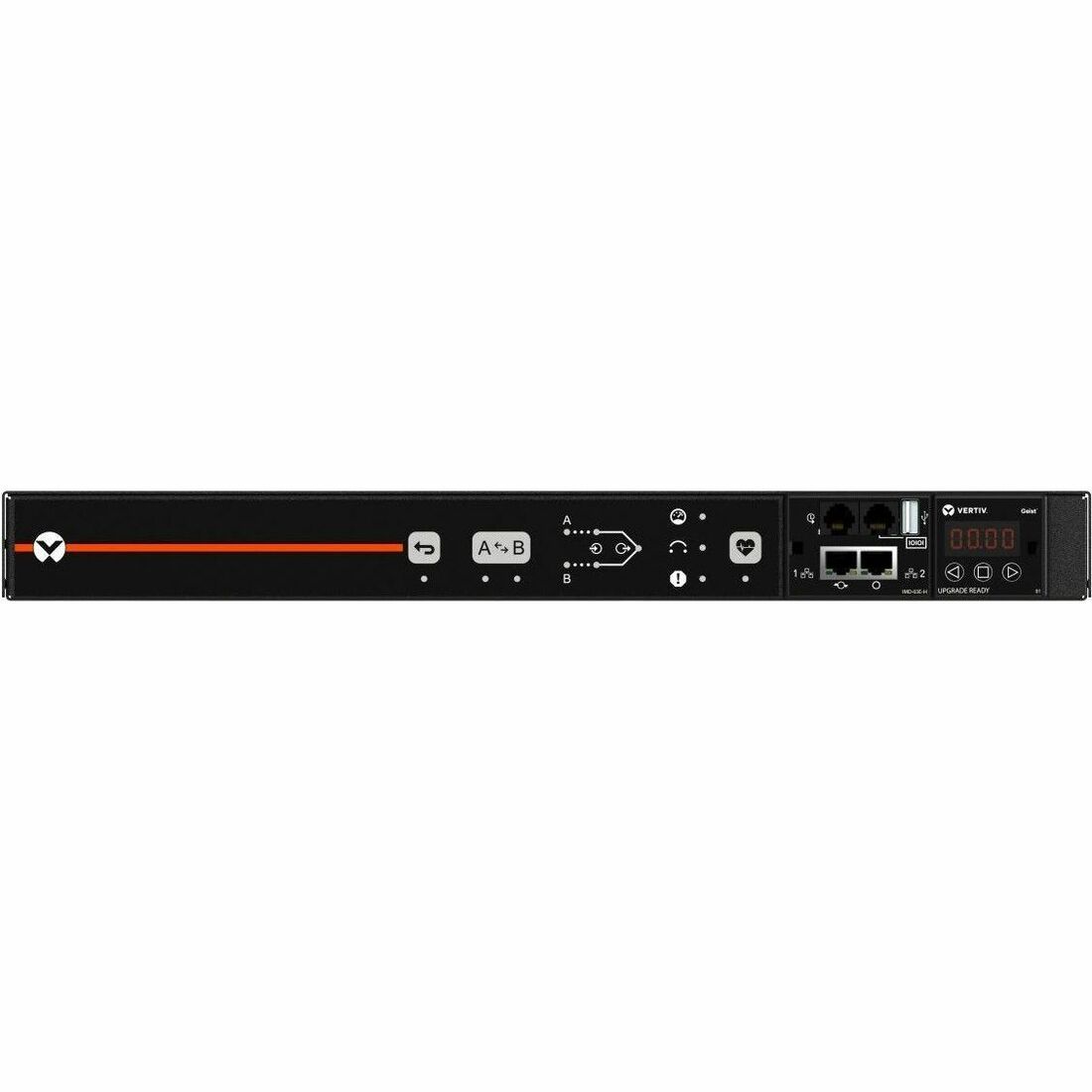

RPDU RACK TRANSFER SWITCH MON MONITORED UNIT LEVEL 16A 230V 3.6KW

Name: RPDU RACK TRANSFER SWITCH MON MONITORED UNIT LEVEL 16A 230V 3.6KW
Brand: VERTIV
SKU: 01RL50
Price: 1169.63 USD
Availability: InStock

VERTIV

PCN#

01RL50

MFG#

VA4G8100

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,169.63

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Auto Transfer Switch, Monitored
1P+N+E (IP44)
12 x Combination C13/C19
230 V AC
Network (RJ
45)
10 ft Cord Length
Horizontal
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years

Shipping Weight: 19 lbs.

Geist rPDU AG03E1R0-12CF13-2PS6PS6B211-D 12-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	VA4G8100
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Geist
Product Series	rPDU
Product Model	AG03E1R0-12CF13-2PS6PS6B211-D
Product Name	rPDU AG03E1R0-12CF13-2PS6PS6B211-D 12-Outlets PDU
Marketing Information	Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase-syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention Benefits Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime. Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs. Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices. Every unit is 100% tested for reliability and functionality.
Product Type	PDU

Technical Information

PDU Type	Auto Transfer Switch Monitored
Plug/Connector Type	1P+N+E (IP44)
Plug/Connector Detail	1 x 1P+N+E (IP44)
Receptacle Type	Combination C13/C19
Receptacle Detail	12 x Combination C13/C19
Features	LED Display
Load Capacity (Watt)	3600 W

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	230 V AC
Input Current	16 A
Input Frequency	60 Hz

Management

DHCP
HTTP
HTTPS
IPv4
IPv6
LDAP
NTP
RADIUS
RSTP
SSH
SMTP
SNMP (v1/v2c/v3)
Syslog
TACACS+
Modbus TCP
CSV datalog
JSON API
JSON datalog

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Cord Length	10 ft
Height	1.7"
Width	17"
Depth	18"

Environmental Conditions

Maximum Operating Temperature

140°F (60°C)

Miscellaneous

Certifications & Standards	CE Marked UKCA Marked IEC 62368-1 EN 55032 EN 55035 C? Mark
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
