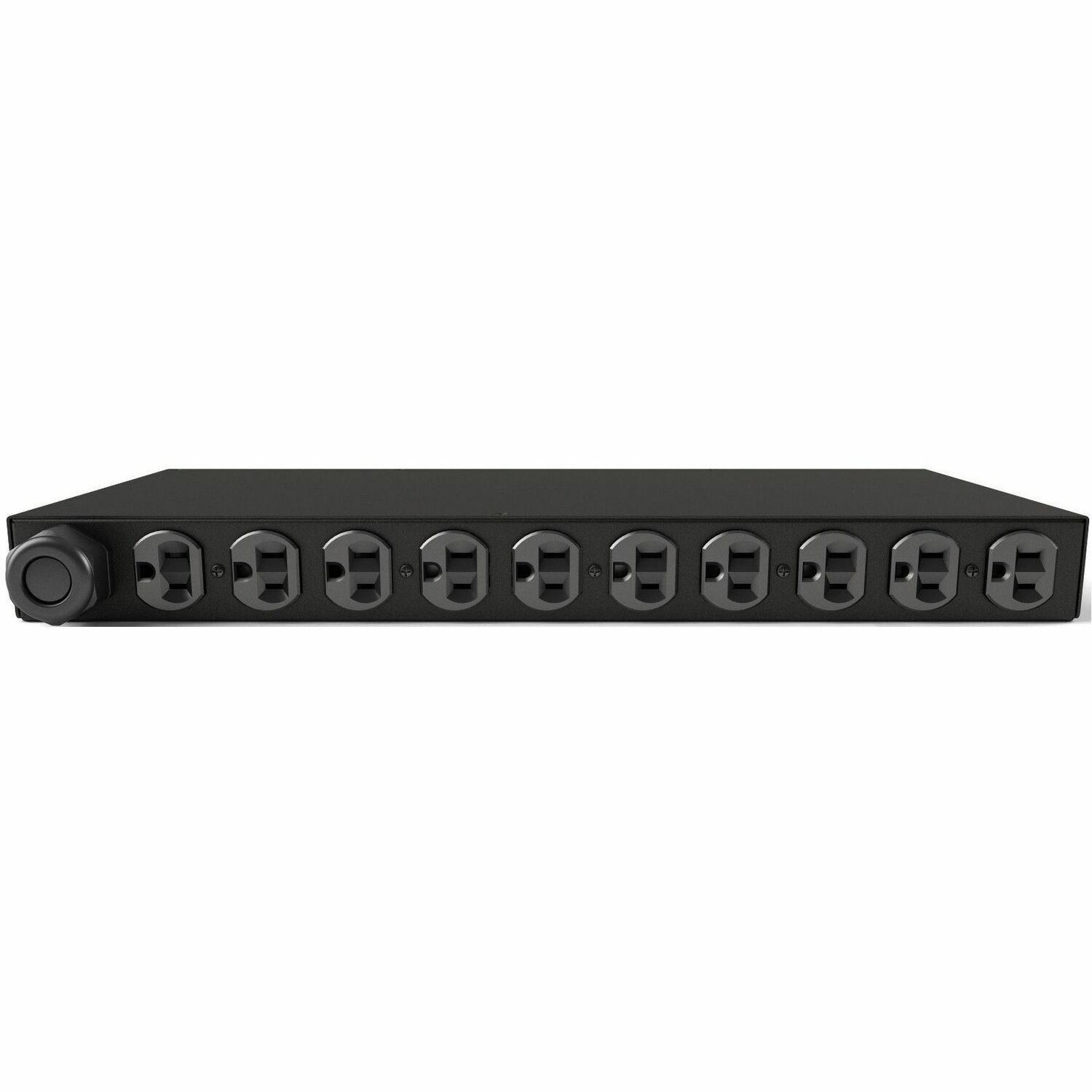

Geist rPDU MN01X1R0-10D203-2TL5A0H10-S 10-Outlets PDU

Name: Geist rPDU MN01X1R0-10D203-2TL5A0H10-S 10-Outlets PDU
Brand: VERTIV - GEIST - CTO & ETO
SKU: JS0877
Price: 369.67 USD
Availability: InStock

VERTIV - GEIST - CTO & ETO

PCN#

JS0877

MFG#

I10101-B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$369.67

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Basic
NEMA L5
20P
10 x NEMA 5
20R
120 V AC
Overcurrent Protection, Single Pole
10 ft Cord Length
1U
Horizontal
Rack
mountable, Cabinet
mountable
Horizontal
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty5 YearAdditional Warranty Information 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years

Shipping Weight: 12 lbs.

Geist rPDU MN01X1R0-10D203-2TL5A0H10-S 10-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	I10101-B
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Geist
Product Series	rPDU
Product Model	MN01X1R0-10D203-2TL5A0H10-S
Product Name	rPDU MN01X1R0-10D203-2TL5A0H10-S 10-Outlets PDU

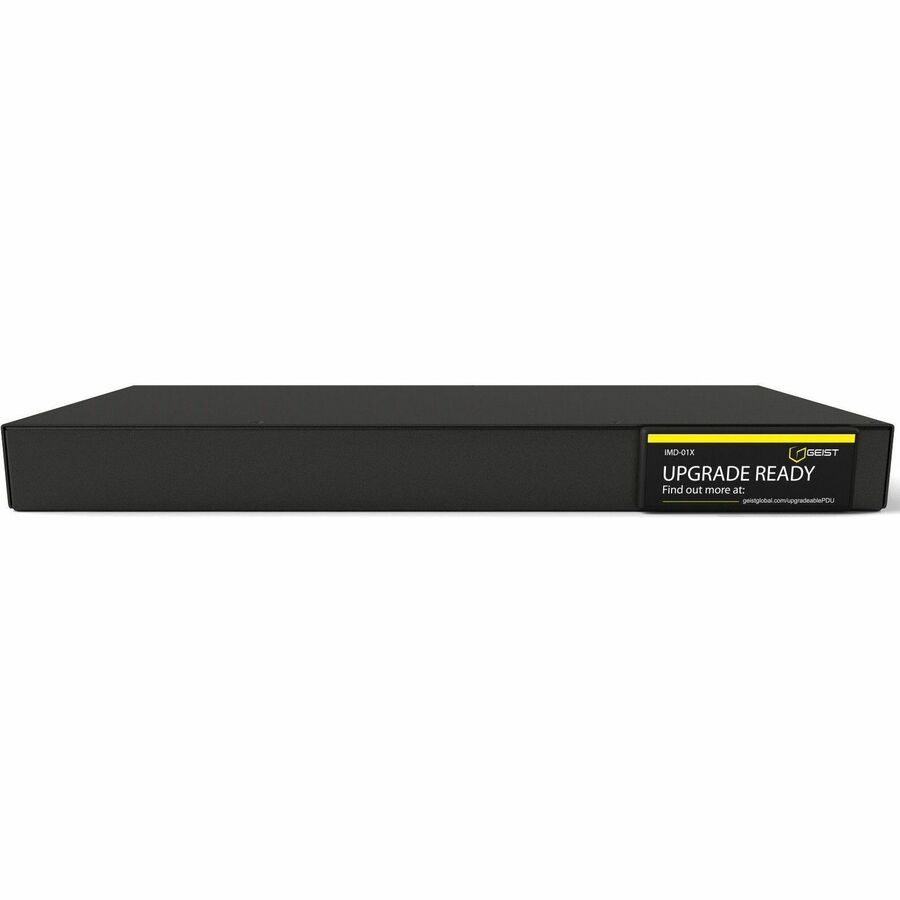

Marketing Information	Basic Upgradeable rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet. Benefits With the Geist Upgradeable hot-swap technology, users may easily transform basic rPDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD). Reliable rack power distribution. Every unit is 100% tested for reliability and functionality. Simple and convenient configuration options for cord lengths and chassis colors. Standard three-year warranty, upgraded to a five-year warranty with product registration.
Product Type	PDU

Technical Information

PDU Type	Basic
Plug/Connector Type	NEMA L5-20P
Plug/Connector Detail	1 x NEMA L5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	10 x NEMA 5-20R
Protection Type	Overcurrent Protection Single Pole

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	120 V AC
Power Rating (Watt)	1900 W
Input Current	20 A
Input Frequency	60 Hz

Physical Characteristics

Color Family	Blue
Product Color	Blue
Mounting Orientation	Horizontal
Mount Type	Rack-mountable Cabinet-mountable
Form Factor	Horizontal
Rack Height	1U
Cord Length	10 ft
Height	1.7"
Width	17"
Depth	8.5"

Environmental Conditions

Maximum Operating Temperature

140°F (60°C)

Miscellaneous

Package Contents	rPDU MN01X1R0-10D203-2TL5A0H10-S 10-Outlets PDU Adjustable Mount Brackets
Application/Usage	IT Equipment Server Rack/Cabinet
Certifications & Standards	UL c-UL Listed 62368-1 FCC Part 15 Class A
Country of Origin	United States
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
