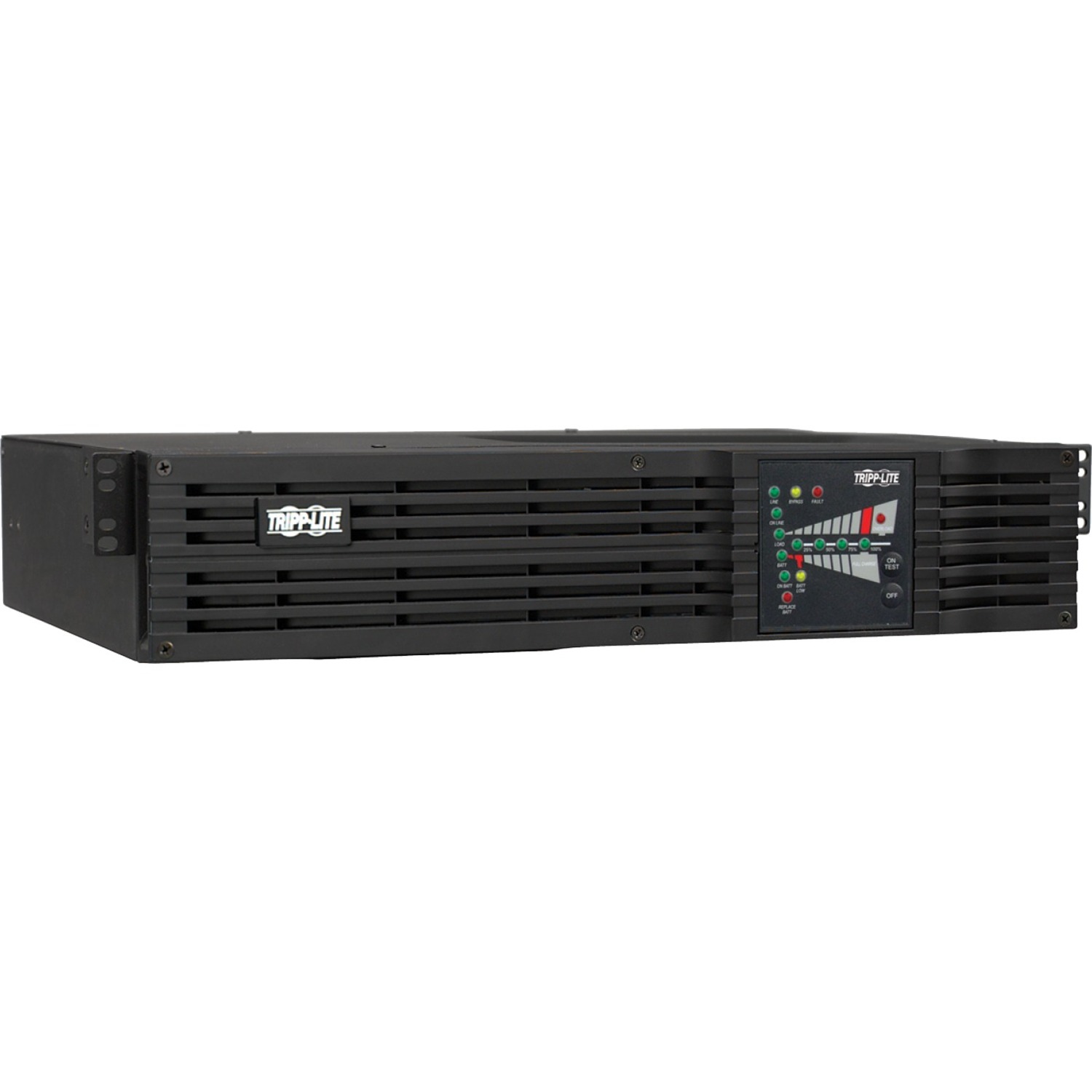

Tripp Lite UPS Smart Online 750VA 600W Rackmount 100V-120V USB DB9 Preinstalled WEBCARDLX 2URM

Name: Tripp Lite UPS Smart Online 750VA 600W Rackmount 100V-120V USB DB9 Preinstalled WEBCARDLX 2URM
Brand: TRIPP LITE
SKU: 1R1389
Price: 1049 USD
Availability: InStock

TRIPP LITE

PCN#

1R1389

MFG#

SU750RTXL2UN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,049.00

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

750 VA/600 W
100 V AC, 110 V AC, 120 V AC
4 Minute Stand
by Time
2U Tower/Rack Mountable
6 x NEMA 5
15R

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 42 lbs.

Tripp Lite UPS Smart Online 750VA 600W Rackmount 100V-120V USB DB9 Preinstalled WEBCARDLX 2URM

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SU750RTXL2UN
Manufacturer Website Address	http://www.tripplite.com
Brand Name	Tripp Lite
Product Line	SmartOnline
Product Model	SU750RTXL2UN
Product Name	SmartOnline SU750RTXL2UN 750VA Tower/Rack Mountable
Marketing Information	750VA online, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 13.5 inches. Extended runtime available with optional BP24V15RT2U (limit 1), BP24V28-2U (limit 1), BP24V70-3U (multi-pack compatible) and BP24V36-2US (multi-pack compatible) external battery packs. Full-time sine wave 100, 110 or 120V output with +/-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150. NEMA 5-15P input plug; NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous communications via USB port, DB9 serial port and pre-installed WEBCARDLX Network Interface. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. PowerAlert monitoring software is available via free download. Emergency Power Off (EPO) interface. Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for viewing in rackmount or tower configurations. Dataline surge suppression for dialup, DSL or network Ethernet connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Fault-tolerant auto-bypass mode. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITWM 2-post rack & wallmount accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs. 250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
Product Type	Double Conversion Online UPS

Technical Information

Receptacle Type	NEMA 5-15R
Receptacle Detail	6 x NEMA 5-15R

Power Description

Load Capacity	750 VA/600 W
Input Voltage	100 V AC 110 V AC 120 V AC
Output Voltage	100 V AC 110 V AC 120 V AC

Battery Information

Backup/Run Time (Full Load)

4 Minute

Physical Characteristics

Height	3.5"
Width	17.5"
Depth	13.5"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	29 lb

Miscellaneous

Package Contents	SmartOnline SU750RTXL2UN 750VA Tower/Rack Mountable PowerAlert Software and Cabling Mounting Hardware for 4-post Rack Enclosures Instruction Manual
Environmentally Friendly	Yes
Country of Origin	China

Warranty

Limited Warranty

2 Year
