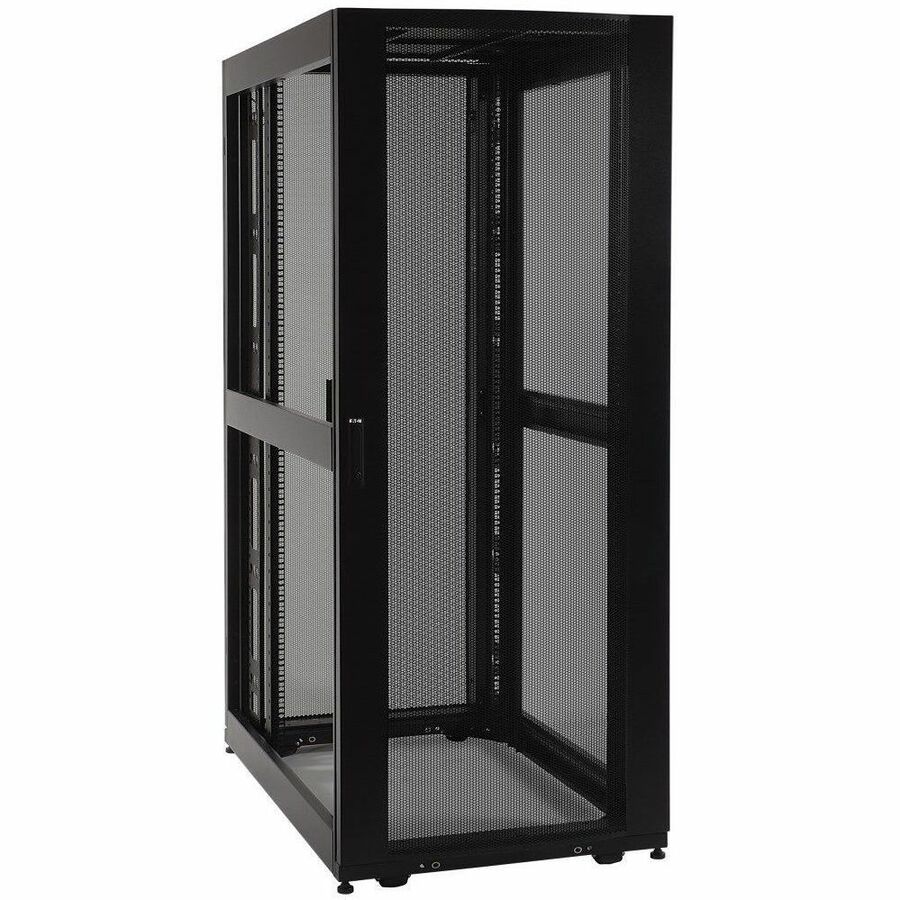

Tripp Lite by Eaton 42U Wide Server Rack, Euro-Series - 800 mm Width, Expandable Cabinet, Side Panels Not Included

Name: Tripp Lite by Eaton 42U Wide Server Rack, Euro-Series - 800 mm Width, Expandable Cabinet, Side Panels Not Included
Brand: TRIPP LITE
SKU: JQ0153
Price: 1089.46 USD
Availability: InStock

TRIPP LITE

PCN#

JQ0153

MFG#

SRX42UBWDEXP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,089.46

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Estimated Shipment:

Product Highlights:

For Server, LAN Switch, Patch Panel, PDU, Data Center, UPS
42U Rack Height27.75" Rack Depth
Floor Standing Enclosed Cabinet
Black Powder Coat
Steel
4960.40 lb Dynamic/Rolling Weight Capacity
6613.87 lb Static/Stationary Weight Capacity

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 318 lbs.

Eaton Tripp Lite Series 42U Wide Server Rack, Euro-Series - 800 mm Width, Expandable Cabinet, Side Panels Not Included

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SRX42UBWDEXP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRX42UBWDEXP
Product Name	SRX42UBWDEXP 42U Server Rack
Marketing Information	42U rack enclosure with 800 mm width houses, organizes and secures rack equipment in high-density server and IT networking areas. Features \| Wide Server Rack Accommodates 42U of Rack Equipment and Side Cable Management This SmartRack® 42U server rack is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. It is 800 millimeters wide to allow more room for cable management and PDU mounting along the sides of the rack, which permits free front-torear airflow. Constructed from heavy-duty steel with a durable black powder-coated finish, the SRX42UBWDEXP has a maximum stationary load capacity of 1360 kilograms and a maximum rolling load capacity of 1020 kilograms. Keeps Important Equipment Secure The reversible front door and split rear doors lock securely to help prevent damage, tampering or theft. The doors and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at their peak. Easy Enclosure and Equipment Installation This 42U server cabinet comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level, smooth, stable surface and through a standard two-meter doorway into position, where it can be stabilized by adjusting the levelers. Four mounting rails adjust in 6.35-millimeter increments to accommodate equipment up to 850 millimeters deep. Toolless 0U mounting rails allow quick installation of up to four compatible PDUs and vertical cable managers. Designed for Baying Multiple Enclosures in a Row This expansion model comes without side panels for baying with other rack cabinets in a row. Integrated baying tabs make it easy to combine multiple units. This rack is also compatible with hot aisle/cold aisle configurations. Center-to-center width can be set at 800 millimeters to match standard data-center floor tiles. Optional side panels, such as Tripp Lite's SR42SIDE (sold separately), may be added later if desired. Meets Payment Card Industry Standards The SRX42UBWDEXP provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
Product Type	Rack Cabinet

Technical Information

Rack Type	Enclosed Cabinet
Application/Usage	Server LAN Switch Patch Panel PDU Data Center UPS
Features	Cable Management Lockable Door

Physical Characteristics

Form Factor	Floor Standing
Color Family	Other
Product Color	Black Powder Coat
Product Material	Steel
Dynamic/Rolling Weight Capacity	4960.40 lb
Static/Stationary Weight Capacity	6613.87 lb
Height	78.5"
Width	31.5"
Depth	41.3"
Weight (Approximate)	350 lb
Rack Height	42U
Rack Depth	27.75"

Miscellaneous

Package Contents	SRX42UBWDEXP 42U Server Rack 2 x Keys 50 x M6 Screws 50 x M6 Washers 50 x M6 Cage Nuts Owner's Manual
Assembly Required	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
