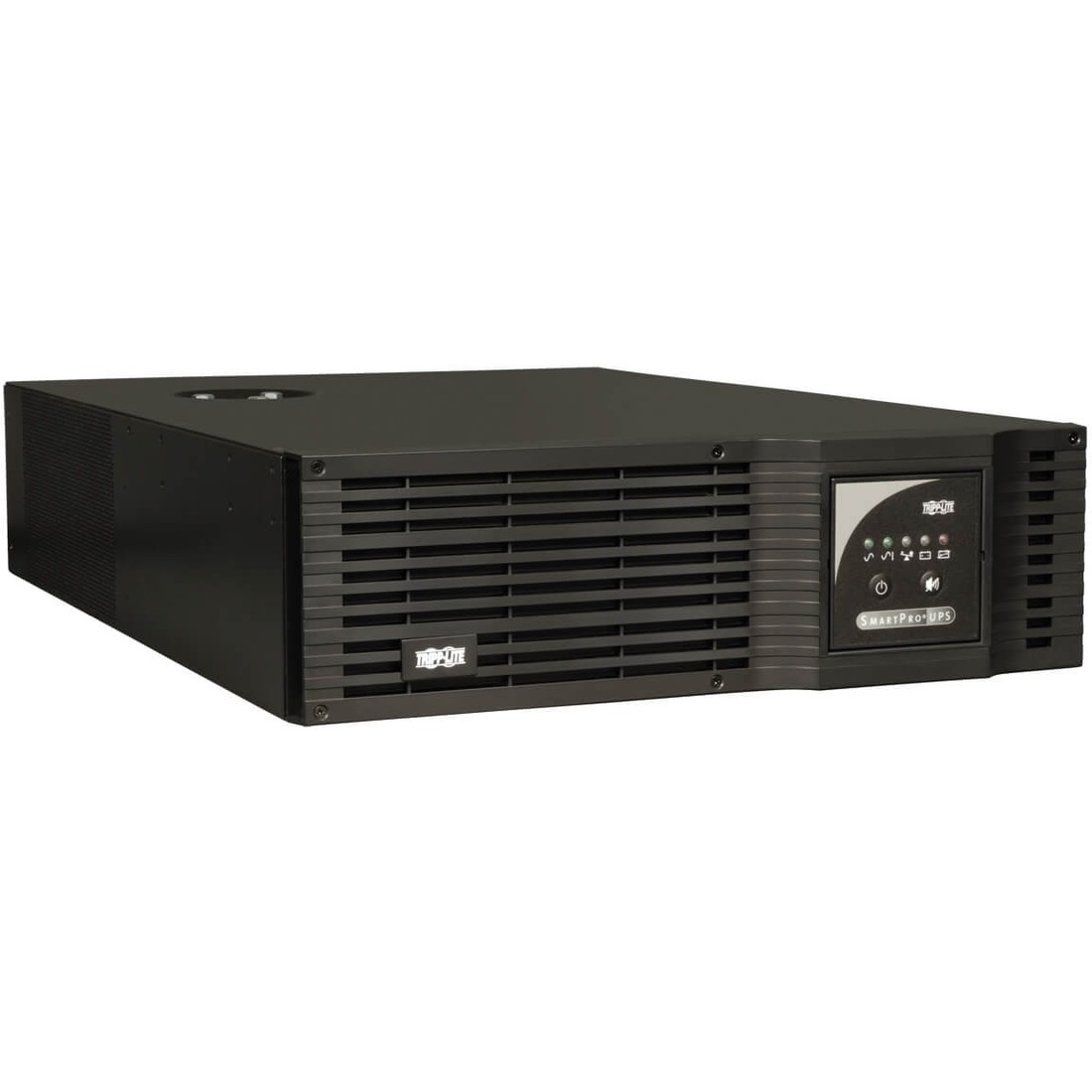

Tripp Lite by Eaton UPS SmartPro 208V 5kVA 3.75kW Line-Interactive Sine Wave UPS 3U Rack/Tower Network Card Options USB DB9 Serial

Name: Tripp Lite by Eaton UPS SmartPro 208V 5kVA 3.75kW Line-Interactive Sine Wave UPS 3U Rack/Tower Network Card Options USB DB9 Serial
Brand: TRIPP LITE
SKU: 454401
Price: 3116.55 USD
Availability: InStock

TRIPP LITE

PCN#

454401

MFG#

SMART5000TEL3U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,116.55

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Estimated Shipment:

Product Highlights:

5000VA/3750W
10 Minute Full Load
1 x NEMA L6
30R, 2 x NEMA L6
20R, 2 x NEMA 5
15R

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 119 lbs.

Tripp Lite by Eaton SmartPro 208V 5kVA 3.75kW Line-Interactive Sine Wave UPS, 3U Rack/Tower, Network Card Options, USB, DB9 Serial - Battery Backup

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SMART5000TEL3U
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartPro
Product Model	SMART5000TEL3U
Product Name	SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS
Marketing Information	Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA L6-30P

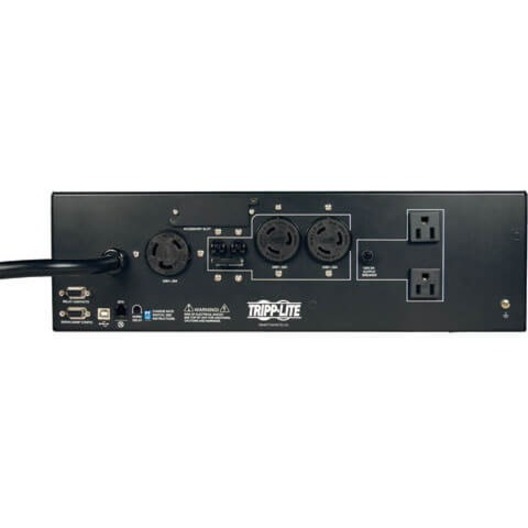

Receptacle Type	NEMA L6-30R NEMA L6-20R NEMA 5-15R
Receptacle Detail	1 x NEMA L6-30R 2 x NEMA L6-20R 2 x NEMA 5-15R
Emergency Power OFF	Yes
Transfer Time	8 ms

Power Description

Load Capacity (VA)	5000 VA
Load Capacity (Watt)	3750 W
Input Voltage	208 V AC
Input Current	24 A
Output Voltage	208 V AC

Management

Network Management

SNMP Manageable

Interfaces/Ports

Modem (RJ-11)	Yes
USB	Yes

Battery Information

Backup/Run Time (Full Load)	10 Minute
Backup/Run Time (Half Load)	24 Minute
Typical Battery Recharge Time	4 Hour
Hot Swappable	Yes

Physical Characteristics

Height	5.3"
Width	17.5"
Depth	25"
Rack Height	3U
Form Factor	Rack/Tower
Weight (Approximate)	143.30 lb

Miscellaneous

Package Contents	Smart Pro 5000TEL3U UPS SMART5000TEL3U UPS System PowerAlert Software and cabling Mounting hardware Warranty information Instruction manual
Additional Information	Ideal in rackmount or tower installations for centralized UPS protection of critical 208V equipment in server rooms, internetworking closets and telecommunications systems. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems Switches: Includes 2 front panel mounted push button switches for system enable, self-test and alarm cancel functions
Certifications & Standards	UL1778 (USA), CSA (Canada), FCC Class A (Emissions)
Software Included	PowerAlert Software
Country of Origin	Taiwan

Warranty

Limited Warranty

2 Year
