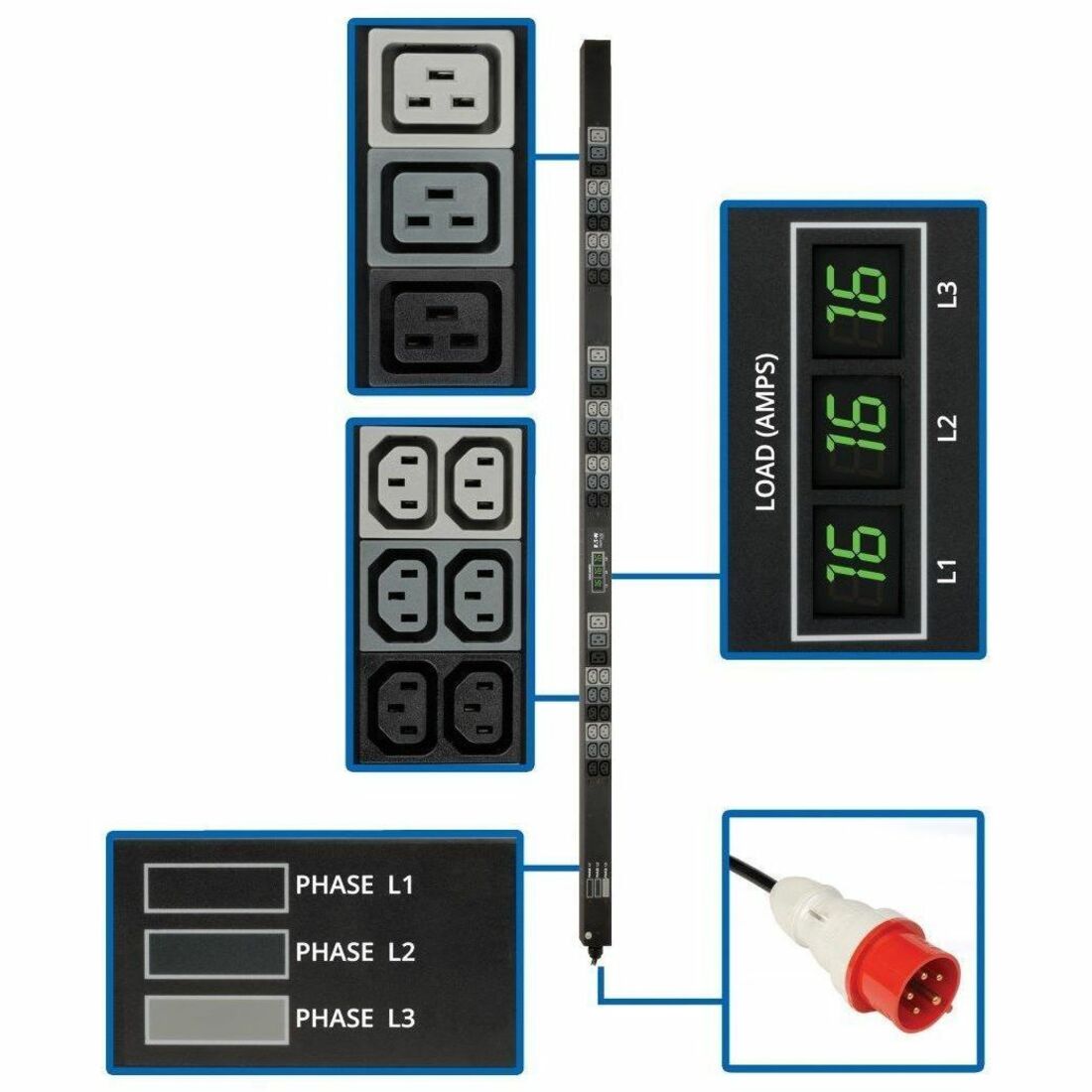

Tripp Lite by Eaton PDU 11.5kW 3-Phase Local Metered PDU 208-240V (36 C13 & 9 C19) IEC-309 16/20A Red 360-415V Input 6 ft. (1.83 m) Cord 0U Vertical

Name: Tripp Lite by Eaton PDU 11.5kW 3-Phase Local Metered PDU 208-240V (36 C13 & 9 C19) IEC-309 16/20A Red 360-415V Input 6 ft. (1.83 m) Cord 0U Vertical
Brand: TRIPP LITE
SKU: RA0458
Price: 537.05 USD
Availability: InStock

TRIPP LITE

PCN#

RA0458

MFG#

PDU3XMV6G20

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$537.05

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

9 x IEC 60320 C19, 36 x IEC 60320 C13
11.50 kVA
Vertical Rackmount?

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 15 lbs.

Eaton Tripp Lite Series 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDU3XMV6G20
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Series	Metered
Product Model	PDU3XMV6G20
Product Name	Metered PDU3XMV6G20 45-Outlets 11.5kVA PDU
Marketing Information	Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Product Type	PDU

Technical Information

Plug/Connector Type	IEC 60309 16A
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	9 x IEC 60320 C19 36 x IEC 60320 C13

Power Description

Input Voltage Range	380 V AC - 415 V AC
Output Voltage	220 V AC 230 V AC 240 V AC
Power Rating (VA)	11500 VA

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Height	70"
Width	2.2"
Depth	1.9"
Weight (Approximate)	9 lb

Miscellaneous

Package Contents	Metered PDU3XMV6G20 45-Outlets 11.5kVA PDU Cord Retention Brackets Mounting Brackets
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
