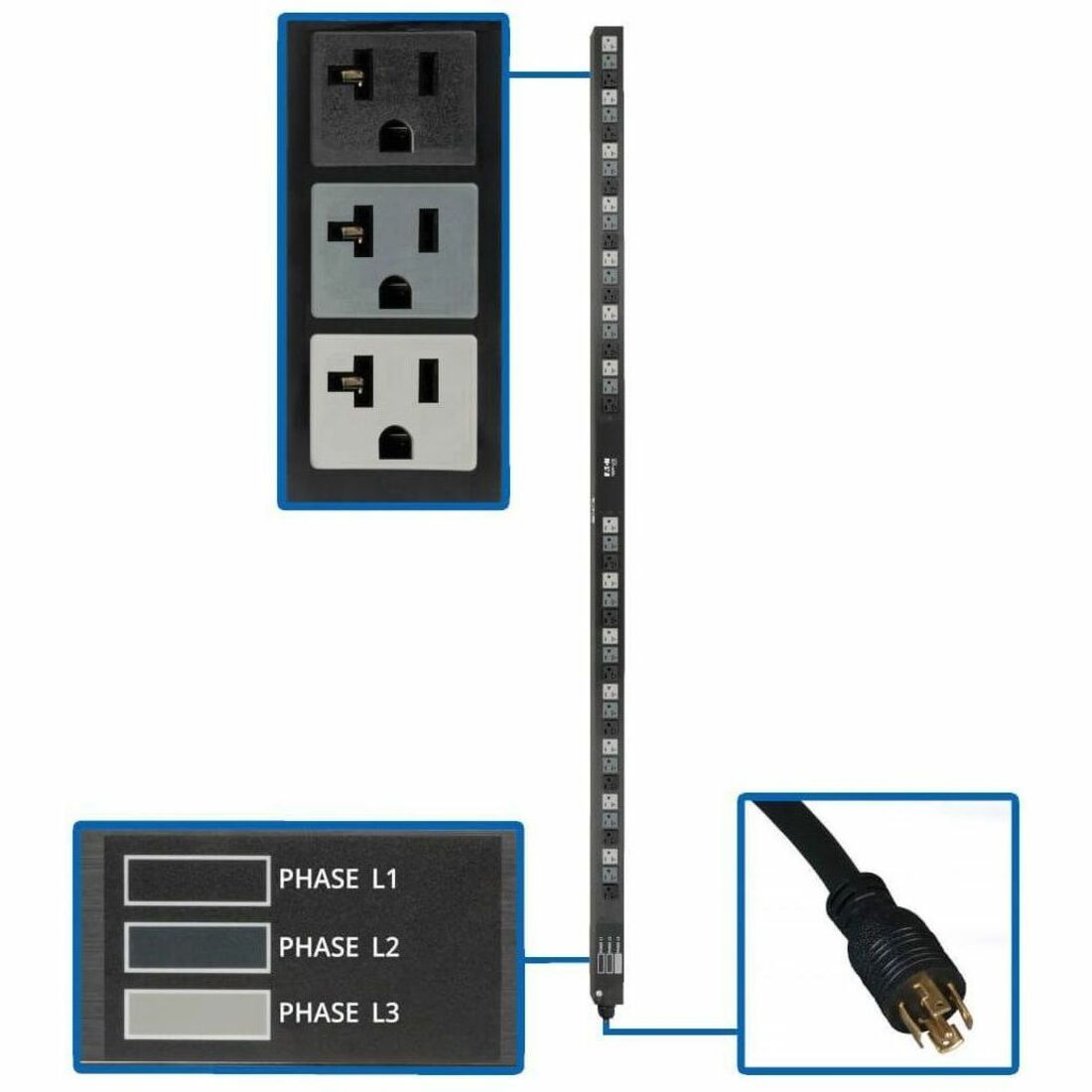

Tripp Lite by Eaton PDU 5.7kW 3-Phase Basic PDU - 42 NEMA 5-15/20R 120V Outlets 208V L21-20P Input 6 ft. Cord 70 in. 0U Rack TAA

Name: Tripp Lite by Eaton PDU 5.7kW 3-Phase Basic PDU - 42 NEMA 5-15/20R 120V Outlets 208V L21-20P Input 6 ft. Cord 70 in. 0U Rack TAA
Brand: TRIPP LITE
SKU: 8JU665
Price: 389.91 USD
Availability: InStock

TRIPP LITE

PCN#

8JU665

MFG#

PDU3V6L2120LV

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$389.91

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Basic
NEMA L21
20P
42 x NEMA 5
15/20R
230 V AC
0U
Vertical/Toolless
Rack
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 15 lbs.

Tripp Lite by Eaton PDU 5.7kW 3-Phase Basic PDU - 42 NEMA 5-15/20R 120V Outlets 208V L21-20P Input 6 ft. Cord 70 in. 0U Rack TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDU3V6L2120LV
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDU3V6L2120LV
Product Name	PDU3V6L2120LV 42-Outlets PDU
Marketing Information	3-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2120LV features 42 NEMA 5-15/20R outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with NEMA L21-20P 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. Easy to Install Vertically in an EIA-Standard 19 in. Rack The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime. TAA-Compliant for GSA Schedule Purchases The PDU3V6L2120LV is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Three Phase
Plug/Connector Type	NEMA L21-20P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	42 x NEMA 5-15/20R
Protection Type	Accidental Power Shutdown Overload Protection Circuit Protection
Locking Receptacles	Cord Retention Bracket

Power Description

Input Voltage	230 V AC
Output Voltage	120 V AC
Power Rating (Watt)	5700 W
Input Current	16 A

Physical Characteristics

Mounting Orientation	Vertical/Toolless
Mount Type	Rack-mountable
Rack Height	0U
Height	70"
Width	2.2"
Depth	1.7"
Weight (Approximate)	12.70 lb

Miscellaneous

Package Contents	PDU3V6L2120LV 42-Outlets PDU Cable Retention Brackets With Installation Hardware Rack-mounting Hardware Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
