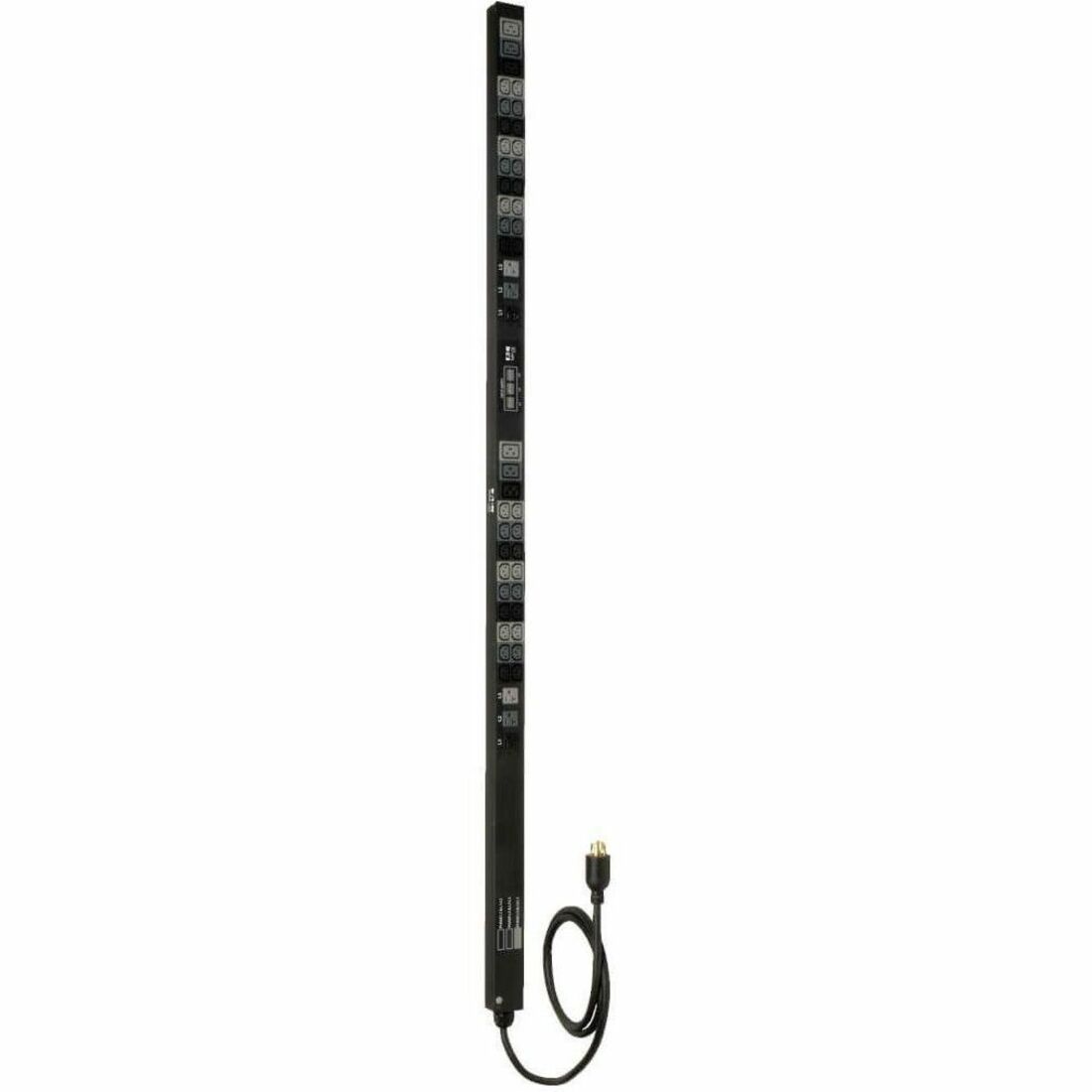

Tripp Lite by Eaton PDU 5.7kW 3-Phase Local Metered PDU 208/120V Outlets (36 C13 6 C19 6 5-15/20R) L21-20P 6 ft. (1.83 m) Cord 0U Vertical TAA

Name: Tripp Lite by Eaton PDU 5.7kW 3-Phase Local Metered PDU 208/120V Outlets (36 C13 6 C19 6 5-15/20R) L21-20P 6 ft. (1.83 m) Cord 0U Vertical TAA
Brand: TRIPP LITE
SKU: PK7845
Price: 445.43 USD
Availability: InStock

TRIPP LITE

PCN#

PK7845

MFG#

PDU3MV6L2120

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$445.43

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5
15/20R
5.70 kVA
Vertical Rackmount, Toolless
mount?

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 16 lbs.

Eaton Tripp Lite Series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDU3MV6L2120
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Series	Metered
Product Model	PDU3MV6L2120
Product Name	3-Phase Metered PDU
Marketing Information	Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L21-20P
Receptacle Type	IEC 60320 C13 IEC 60320 C19 NEMA 5-15/20R
Receptacle Detail	36 x IEC 60320 C13 6 x IEC 60320 C19 6 x NEMA 5-15/20R

Power Description

Input Voltage	230 V AC
Output Voltage	120 V AC 208 V AC
Power Rating (Watt)	5700 W

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Height	70"
Width	1.9"
Depth	2.2"
Weight (Approximate)	12.60 lb

Miscellaneous

Package Contents	Metered Rackmount PDU Cord Retention Brackets Rack Mounting Brackets User Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
