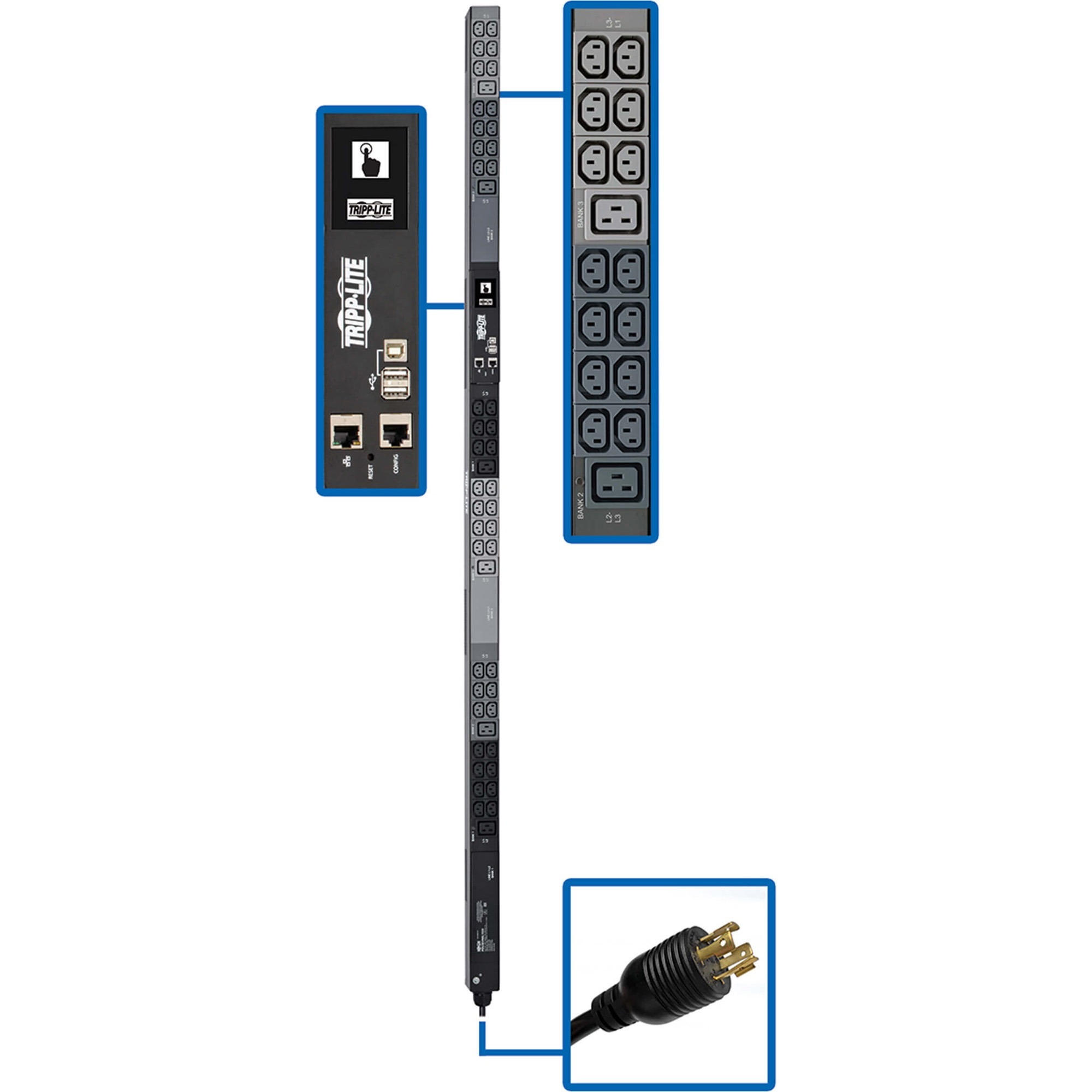

Tripp Lite 3-Phase PDU Monitored 6.6kW 208/240V 42 C13 6 C19 L15-20P 0U TAA

Features

6.6kW 3-Phase 0U PDU Distributes and Monitors Network-Grade Power

This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for data centers, server rooms and high-density network closets, the PDU3EVN6L1520 features 42 C13 and six C19 208/240V outlets in three load banks, which distribute AC power to rack equipment. The banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Built-In LX Platform Network Management Card Allows Remote Access 24/7

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The monitored PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

Color Touchscreen LCD Offers Important Data at a Glance

An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU, the LCD also displays status and environmental data, such as temperature and humidity.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. A six-foot cord with NEMA L15-20P 208/240V 3-phase input connects the PDU to a compatible AC power source, generator or protected UPS.

TAA-Compliant for GSA Schedule Purchases

The PDU3EVN6L1520 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• IEC 60320 C13
• IEC 60320 C19

• 42 x IEC 60320 C13
• 6 x IEC 60320 C19

• IPv4
• IPv6
• HTTP
• HTTPS
• SMTP
• SNMPv1
• SNMPv2
• SNMPv3
• telnet
• SSH
• FTP
• DHCP
• NTP

• PDU3EVN6L1520 48-Outlets PDU
• Built-in LX Platform Interface
• Configuration Cable
• 48 x Plug-lock Insert Sleeves
• Rack-mounting Hardware
• Spare Mounting Buttons
• Owner's Manual
