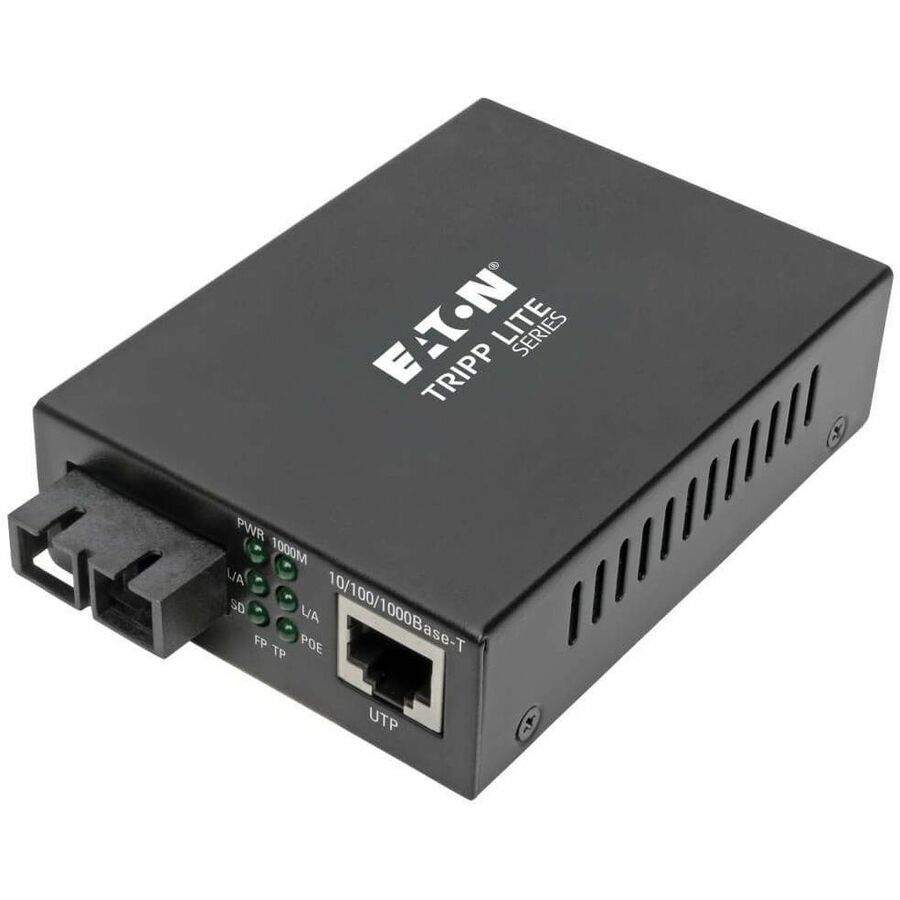

Tripp Lite by Eaton Gigabit Multimode Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 SC, 1310 nm, 2 km (1.2 mi.)

Name: Tripp Lite by Eaton Gigabit Multimode Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 SC, 1310 nm, 2 km (1.2 mi.)
Brand: TRIPP LITE
SKU: 08JY39
Price: 132.86 USD
Availability: InStock

TRIPP LITE

PCN#

08JY39

MFG#

N785-INT-PSCMM2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$132.86

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
1 x SC Ports
DuplexSC Port
Multi
mode
1310 nm Fiber
Gigabit Ethernet
10/100/1000Base
T
1.24 Mile
AC Adapter
Pole, Ceiling Mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 3 lbs.

Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 SC, 1310 nm, 2 km (1.2 mi.)

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	N785-INT-PSCMM2
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	N785-INT-PSCMM2
Product Name	N785-INT-PSCMM2 Transceiver/Media Converter
Marketing Information	Extends your copper Gigabit Ethernet network connection up to 550 m over LC fiber optic cable with the addition of PoE. Features \| Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. Supports Power over Ethernet to Save You Money and Give You More Installation Choices PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Supports Auto-Sensing of Network Speed and Other Advanced Functions Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter's power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active. Completely Plug-and-Play with No Additional Software Required for Connection The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Maximum Distance Supported	1.24 Mile

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T

Power Description

Power Source	AC Adapter
Plug/Connector Type	NEMA 5-15P AS3112 BS 1363 CEE 7/16
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Pole Ceiling Mountable
Height	1"
Width	2.8"
Depth	3.7"

Miscellaneous

Package Contents	N785-INT-PSCMM2 Transceiver/Media Converter External Power Supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A) 4 x International Power Cables (North America, Europe, U.K., Australia) Owner's Manual
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Restriction of Hazardous Substances (RoHS) 3 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

2 Year
