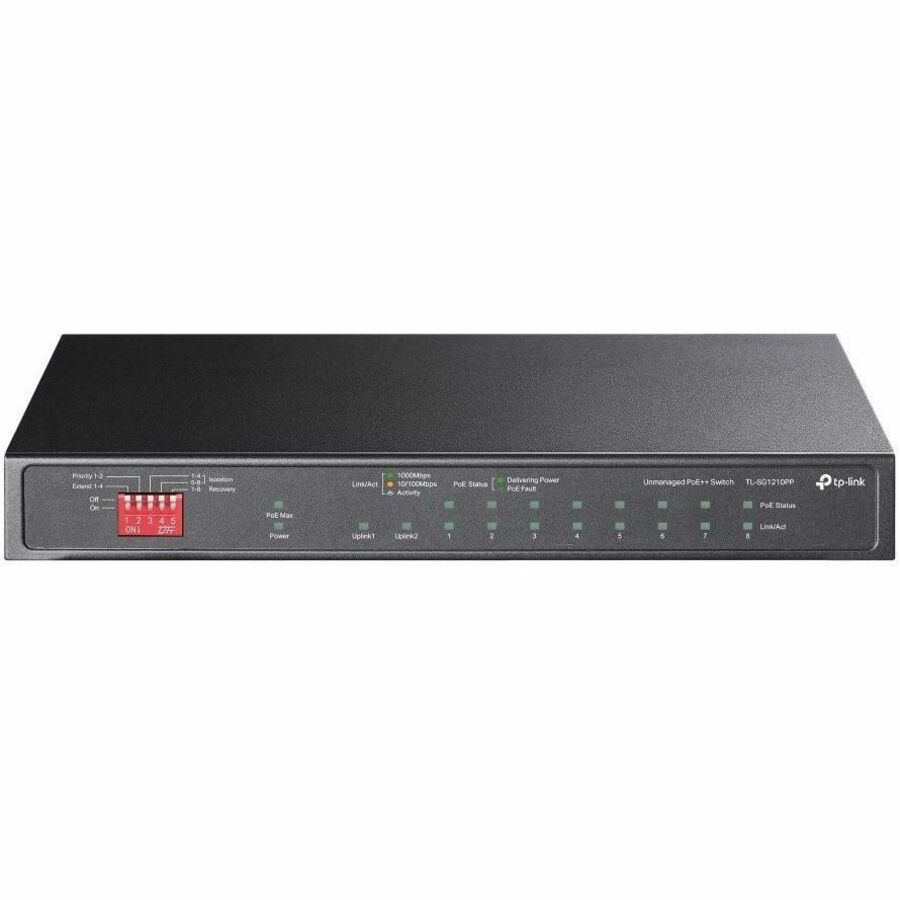

10-PORT GIG POE+ DESKTOP SWITCH 10-PORT GIG POE+ DESKTOP SWITCH

Name: 10-PORT GIG POE+ DESKTOP SWITCH 10-PORT GIG POE+ DESKTOP SWITCH
Brand: TP-LINK SYSTEMS INC.
SKU: S11321
Price: 150.29 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

S11321

MFG#

TL-SG1210PP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$150.29

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

10 Ports
Gigabit Ethernet
1000Base
X, 10/100/1000Base
T
2 Layer Supported
Modular
1 SFP Slots
144.10 W Power Consumption
123 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
Desktop, Wall Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 4 lbs.

TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	TLSG1210PP
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	TP-Link
Product Model	TL-SG1210PP
Product Name	10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
Marketing Information	TL-SG1210PP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. Power Over Ethernet 8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. Overload Arrangement TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port. Intelligent Power Management Priority (port 1 > port 2 ......> port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6.
Product Type	Ethernet Switch

Technical Information

Features

Fanless

Interfaces/Ports

Total Number of Network Ports	10
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	2 x Gigabit Ethernet PoE++ 6 x Gigabit Ethernet PoE+ 1 x Gigabit Ethernet Combo 1 x Gigabit Ethernet Network Port

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X 10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP (mini-GBIC)
Shared SFP Slot	Yes
Number of SFP Slots	1

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3af IEEE 802.3at IEEE 802.3x IEEE 802.1p IEEE 802.3bt IEEE 802.3i IEEE 802.3u

Management & Protocols

Manageable

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	123 W
Input Voltage	53.5 V DC
Power Source	DC Power Adapter PoE++
Power Consumption	144.10 W

Physical Characteristics

Form Factor	Desktop Wall Mountable
Height	1"
Width	8.2"
Depth	5"

Miscellaneous

Application/Usage

Network
IP Camera
IP Phone
