OMADA 24PORT L2+ MANAGED SWITCH OMADA 24-PORT L2+ MANAGED SWITCH

Name: OMADA 24PORT L2+ MANAGED SWITCH OMADA 24-PORT L2+ MANAGED SWITCH
Brand: TP-LINK SYSTEMS INC.
SKU: JT7423
Price: 192.38 USD
Availability: InStock

TP-LINK SYSTEMS INC.

PCN#

JT7423

MFG#

SG3428

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$192.38

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
T, 1000Base
X
2 Layer Supported
Modular
4 SFP Slots
20.60 W Power Consumption
Twisted Pair, Optical Fiber
Rack
mountable, Desktop

Product Condition: New and Factory Fresh

Shipping Weight: 7 lbs.

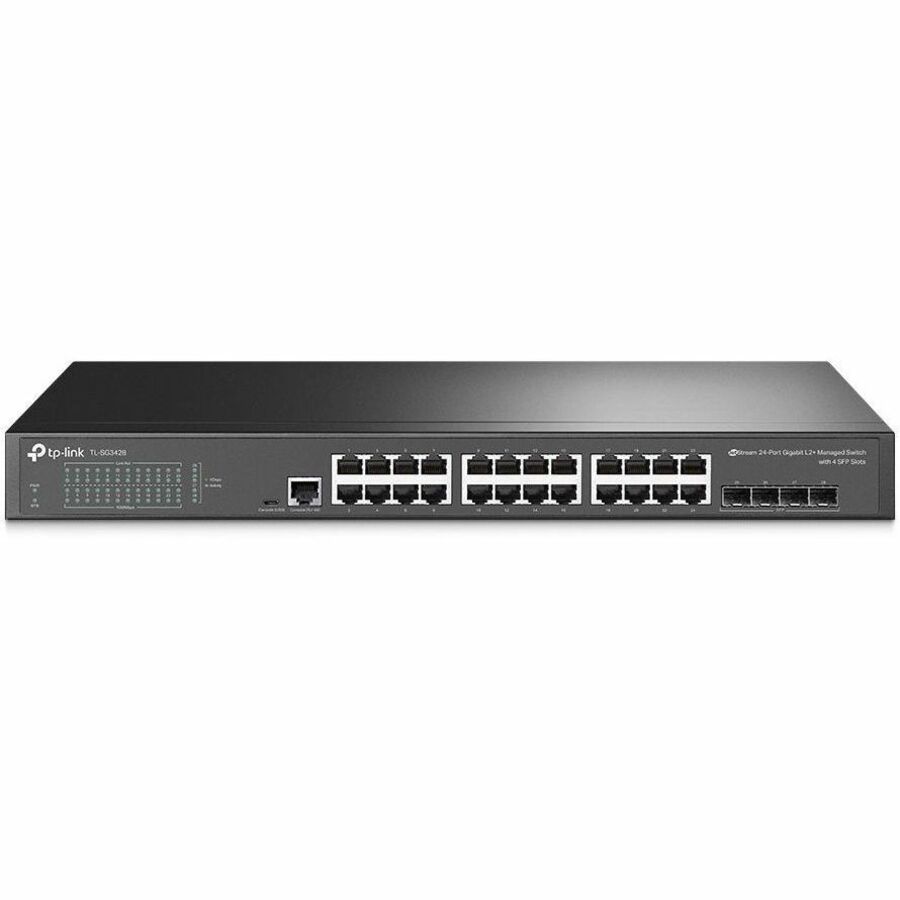

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots

Overview

Tech Specs

Specifications

Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	SG3428
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	TP-Link
Product Line	Omada
Product Model	SG3428
Product Name	Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots

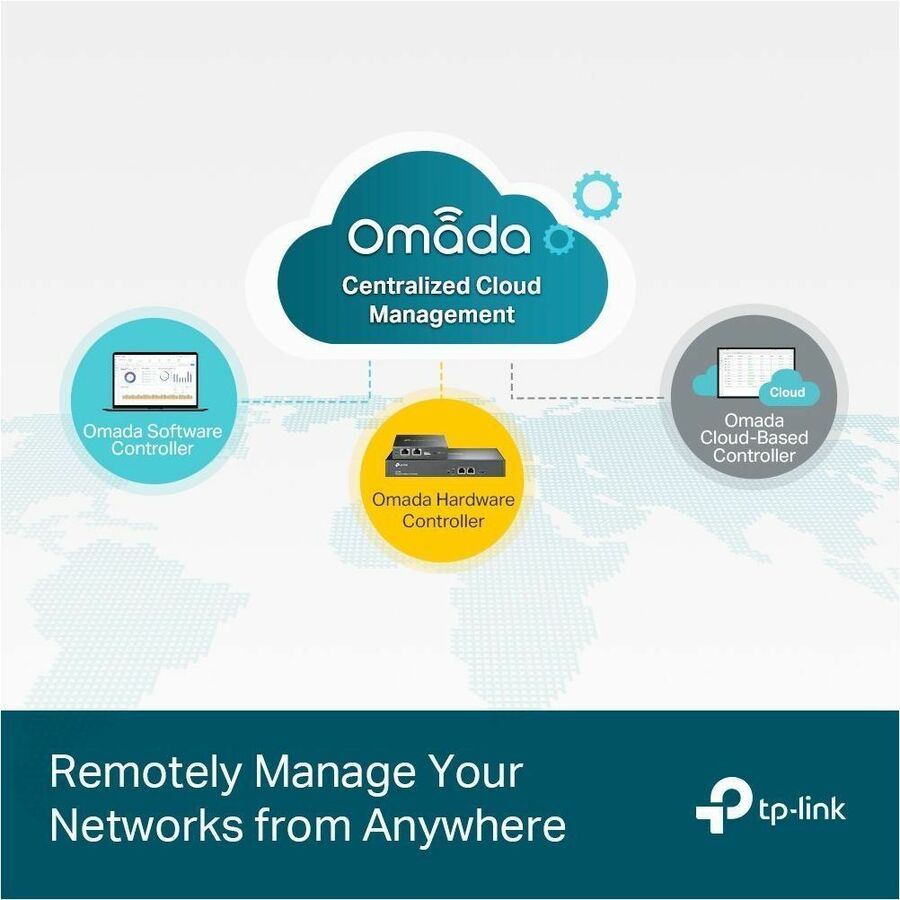

Marketing Information	28× Gigabit Ports (4× SFP) Fanless Design for Silent Operation Centralized Management Omada App Zero-Touch Provisioning Static Routing Ethernet Ring Protection Switching Software Defined Networking (SDN) with Cloud Access Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Product Type	Ethernet Switch

Technical Information

Features

Fanless
Zero-Touch Provisioning (ZTP)

Interfaces/Ports

Total Number of Network Ports	24
Modular	Yes
Network (RJ-45)	Yes

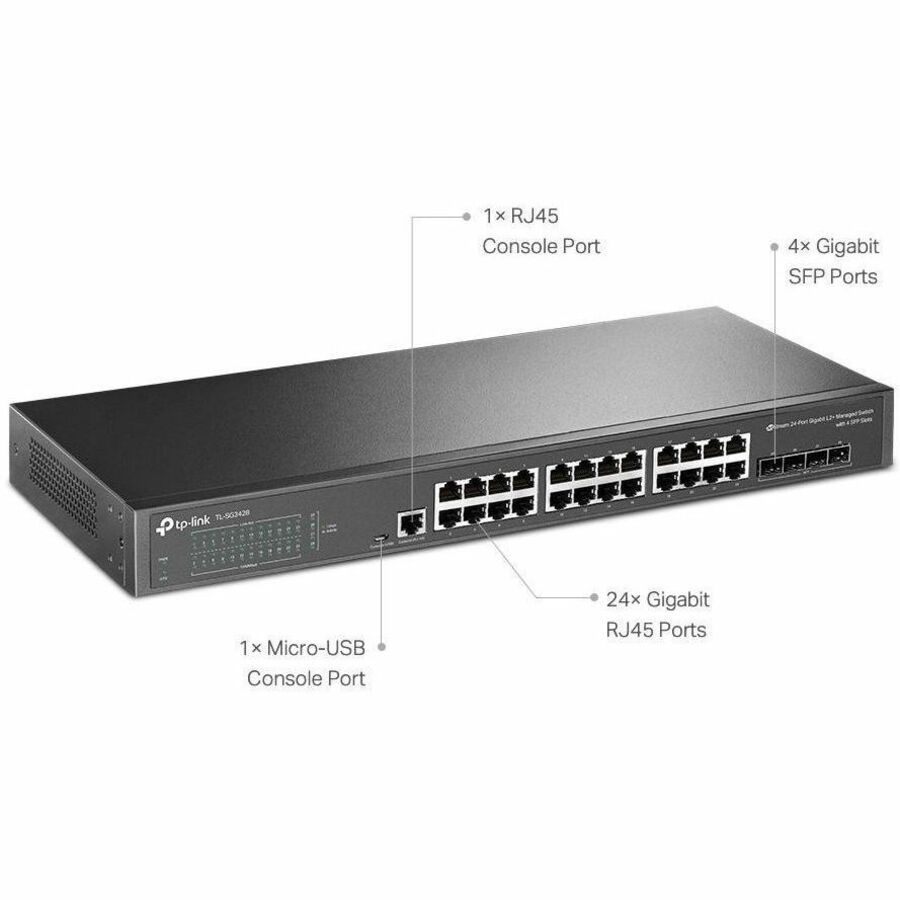

Port/Expansion Slot Details	24 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	4

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3ab IEEE 802.3x IEEE 802.1Q IEEE 802.1p IEEE 802.1x IEEE 802.3ah

Management & Protocols

Manageable

Yes

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply
Power Consumption	20.60 W

Physical Characteristics

Product Material	Metal
Form Factor	Rack-mountable Desktop
Height	1.7"
Width	17.3"
Depth	7.1"

Miscellaneous

Package Contents	Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots Power Adapter Installation Guide Rackmount Kit Rubber Feet
Application/Usage	Network Wireless Access Point
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
