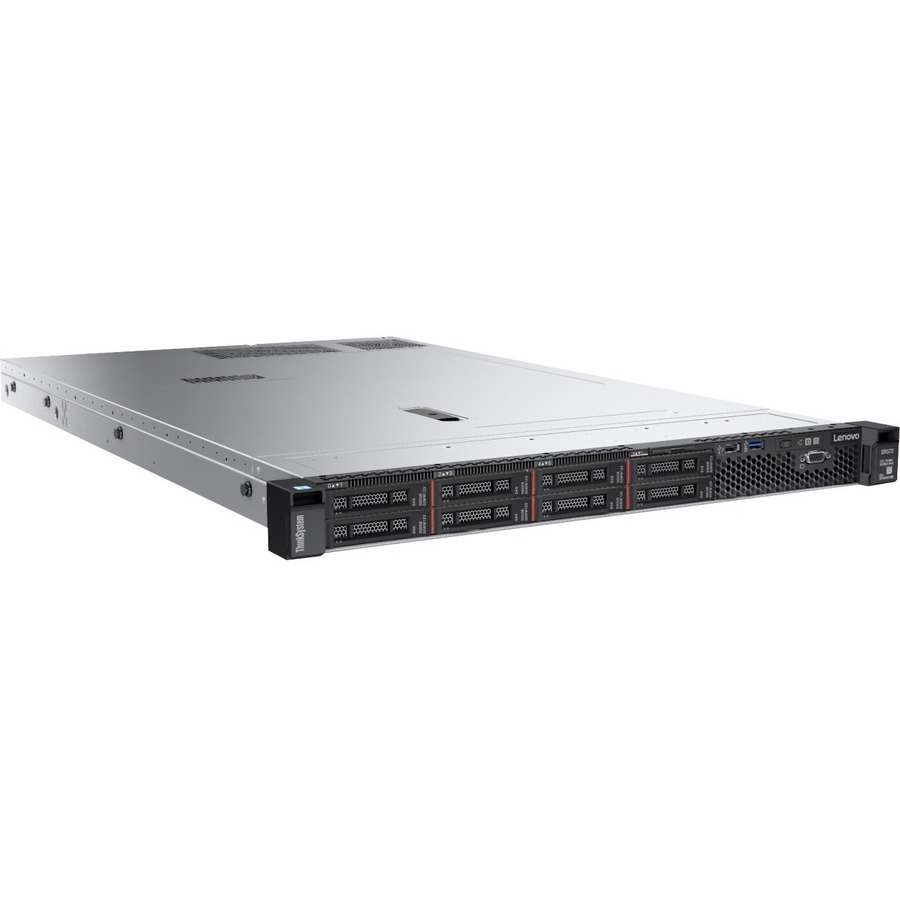

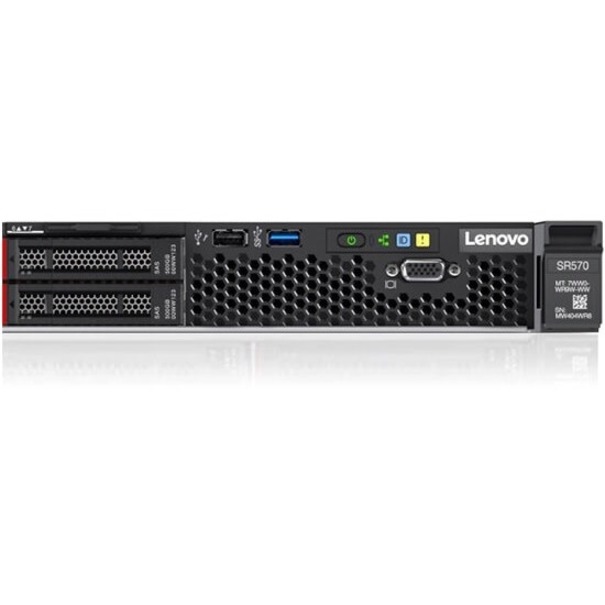

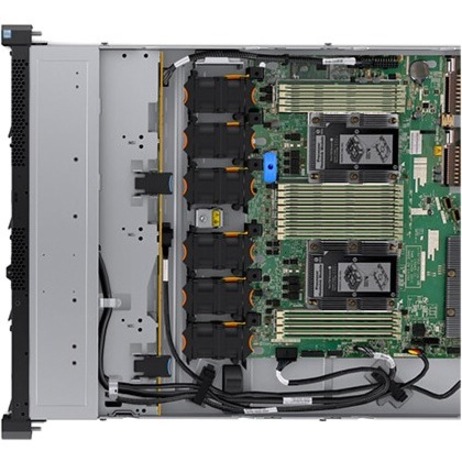

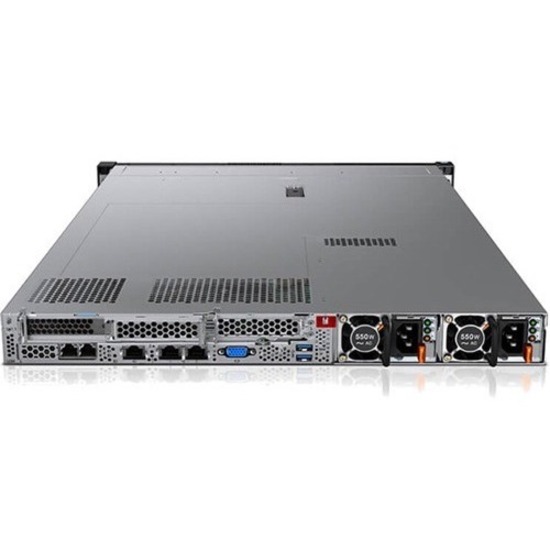

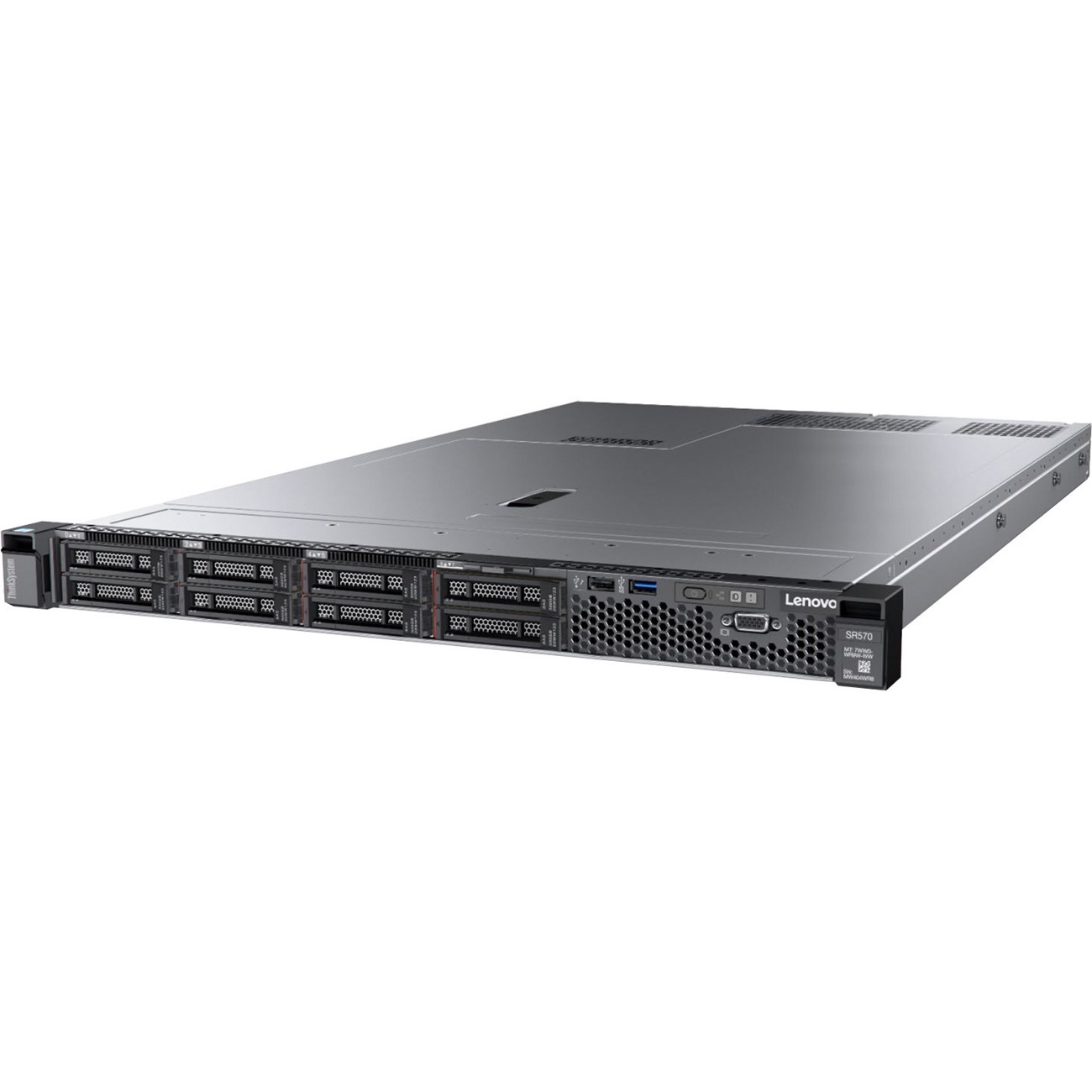

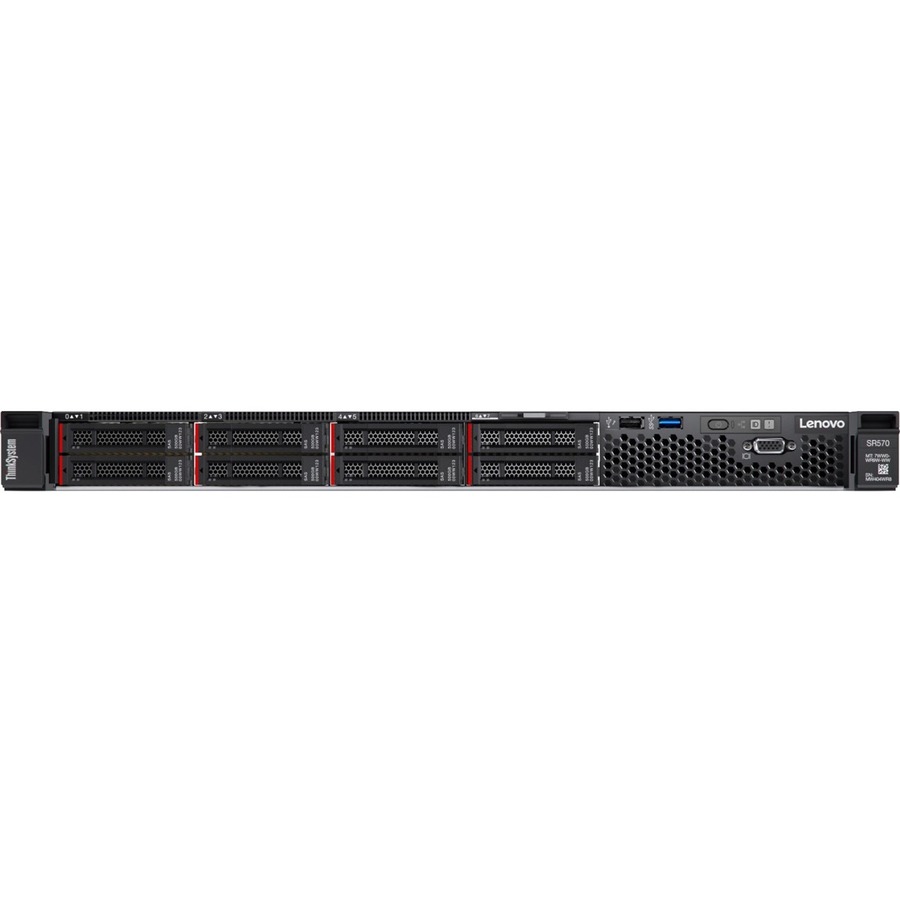

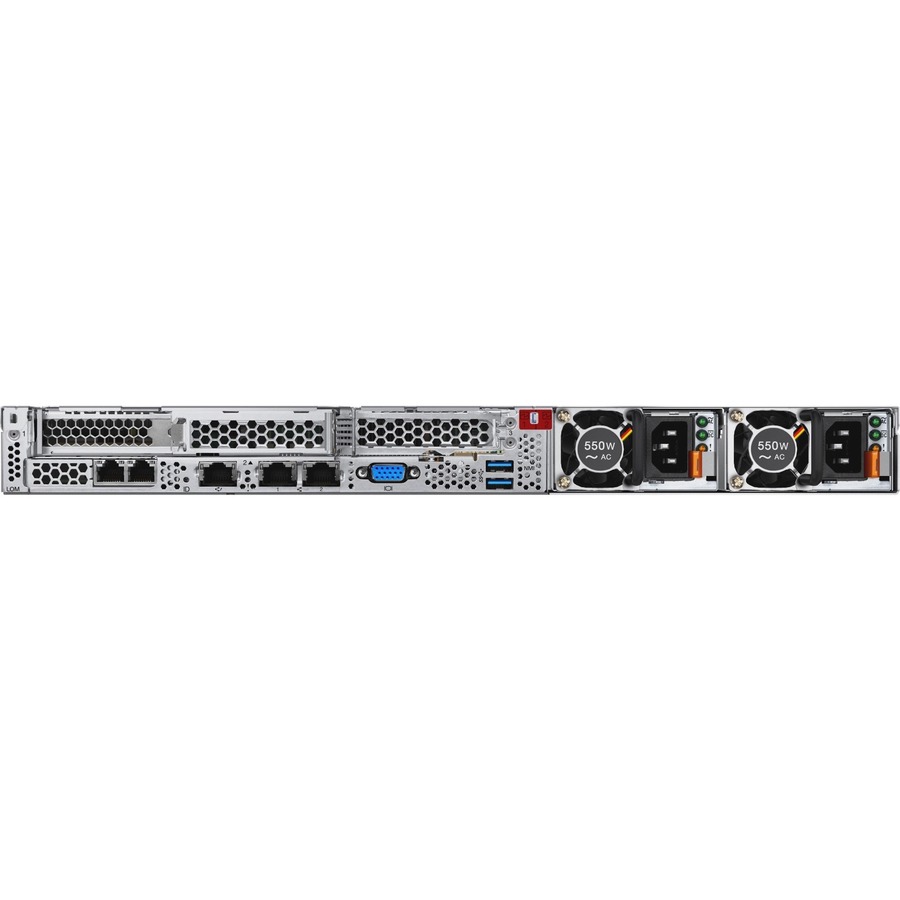

Lenovo ThinkSystem SR570 7Y03A06GNA 1U Rack Server - 1 x Intel Xeon Bronze 3204 1.90 GHz - 16 GB RAM - 12Gb/s SAS Controller

Name: Lenovo ThinkSystem SR570 7Y03A06GNA 1U Rack Server - 1 x Intel Xeon Bronze 3204 1.90 GHz - 16 GB RAM - 12Gb/s SAS Controller
Brand: TOPSELLER LENOVO DCG BTO SERVER
SKU: 6KA139
Price: 2747.43 USD
Availability: InStock

TOPSELLER LENOVO DCG BTO SERVER

PCN#

6KA139

MFG#

7Y03A06GNA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,747.43

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C622 Chip
2 Processor Support
1 TB RAM Support
TruDDR4
0, 1, 5, 10, 50, JBOD RAID Levels
Matrox G200 Up to 16 MB Graphic Card
Gigabit Ethernet
4 x LFF Bay(s)
Hot Swappable Bays
1 x 750 W
Intel Optane Memory Ready

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThree-year customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered

Shipping Weight: 40 lbs.

Lenovo ThinkSystem SR570 7Y03A06GNA 1U Rack Server - 1 x Intel Xeon Bronze 3204 1.90 GHz - 16 GB RAM - 12Gb/s SAS Controller

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7Y03A06GNA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	SR570
Product Model	7Y03A06GNA
Product Name	ThinkSystem SR570 7Y03A06GNA Server
Marketing Information	Lenovo ThinkSystem SR570 is a 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as the balance of performance, memory, and flexible storage configurations. The SR570 server is designed to handle a wide range of workloads, such as virtualization and cloud computing, infrastructure security, web serving, and application development.
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	1
Processor Manufacturer	Intel
Processor Type	Xeon Bronze
Processor Generation	2nd Gen
Processor Model	3204
Processor Core	Hexa-core (6 Core)
Processor Speed	1.90 GHz
Cache	8.25 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C622

Memory

Standard Memory	16 GB
Maximum Memory Supported	1 TB
Memory Technology	TruDDR4
Memory Clock Speed	2.67 GHz
Error Checking	ECC
Number of Total Memory Slots	16
Number of Occupied Memory Slots	1
Intel Optane Memory Ready	Yes
Signal Processing	Registered (Buffered)

Storage

Number of Hard Drives	No
Number of Solid State Drives	No
Optical Drive Type	No

Controllers

Controller Type	12Gb/s SAS
Controller Model	530-8i
RAID Supported	Yes
RAID Levels	0, 1, 5, 10, 50, JBOD

I/O Expansions

Number of Total Expansion Bays	4
Number of 3.5" Bays	4
Number of LFF Bays	4
Hot Swappable Bays	Yes
Total Number of Expansion Slots	3.0
PCI Express Details	Slot 1: PCIe 3.0 x8; low profile Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length Slot 3: PCIe 3.0 x8 or x16; low profile

Display & Graphics

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200
Graphics Memory Capacity	16 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 2.0 Ports	1
Number of USB 3.0 Ports	3
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
VGA	Yes
Number of VGA Ports	2
Remote Management	Yes
Remote Management Controller	XClarity Controller

Operating System

Operating System Supported	Windows Server 2016 Windows Server 2019 Windows Server 2012 R2 Red Hat Enterprise linux 7.4 Red Hat Enterprise Linux 6.9 Red Hat Enterprise Linux 7.6 Red Hat Enterprise Linux 7.7 SUSE Linux Enterprise Server 15 SP1 SuSE Linux Enterprise Server 15 SUSE Linux Enterprise Server 12 SP4
Operating System	No

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Plug/Connector Type	C13/C14
Maximum Power Supply Wattage	750 W
Hot Swappable Power Supply	Yes

Physical Characteristics

Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.1"
Depth	28.1"
Weight (Approximate)	35.27 lb

Miscellaneous

Package Contents	ThinkSystem SR570 7Y03A06GNA Server Tool-less Rail Kit Rack Installation Guide Electronic Publications Flyer 2.8 m C13-C14 Rack Power Cable
Security Features	Power-on password Administrator's password Secure firmware updates Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting)
Energy Star	Yes
Environmentally Friendly	Yes
Energy Efficiency Certification	ENERGY STAR 2.1
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered
