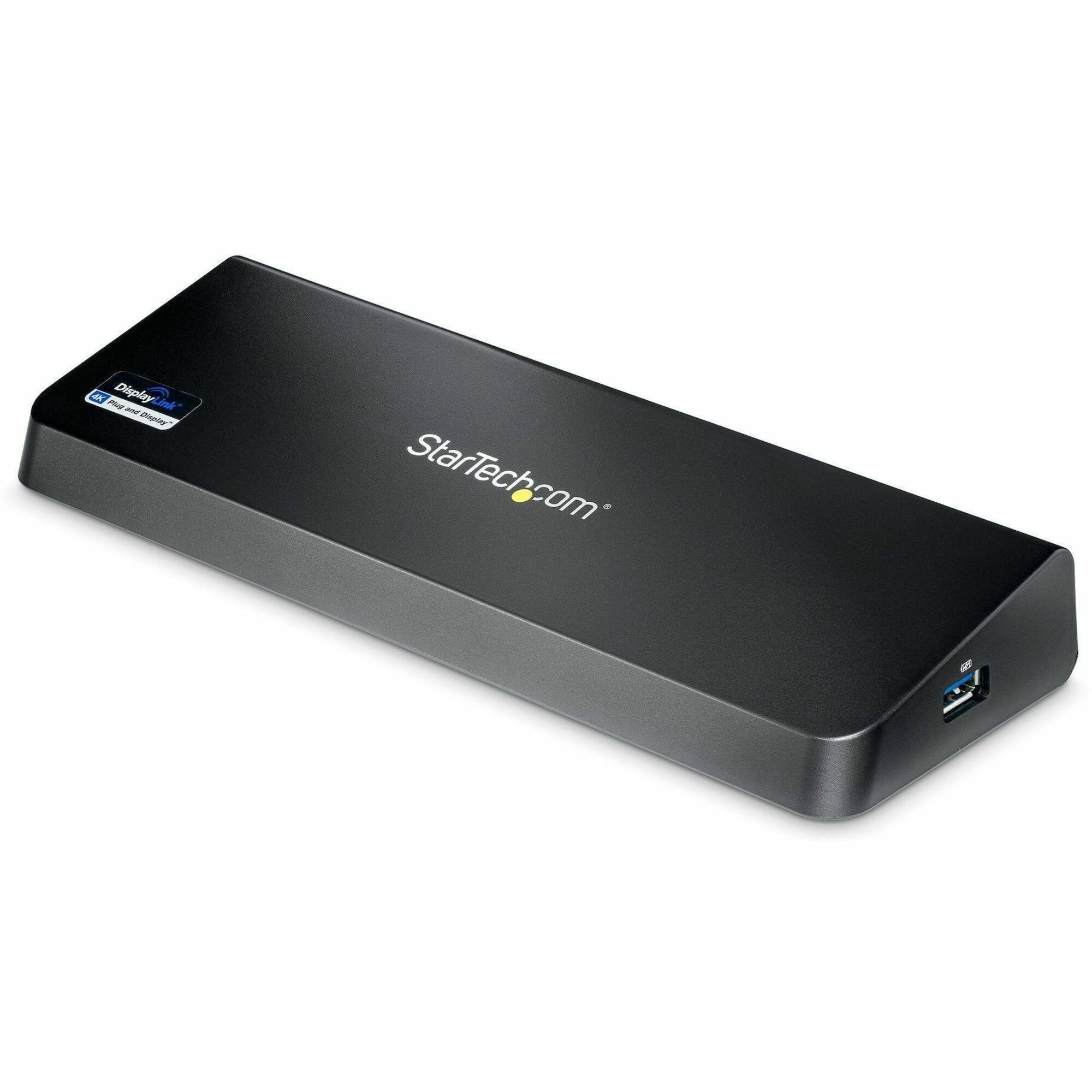

StarTech.com USB 3.0 Docking Station - Windows / macOS Compatible - Supports Dual Displays, HDMI / DisplayPort or 4K Ultra HD on a Single Monitor - USB3DOCKHDPC

by
STARTECH
PCN#
YB0735
MFG#
USB3DOCKHDPC
$108.40
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Dual Monitor Docking Station
  • HDMI and DisplayPort Ports
  • 4K Ultra HD on One Monitor

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 3 lbs.
StarTech.com USB 3.0 Docking Station - Windows / macOS Compatible - Supports Dual Displays, HDMI / DisplayPort or 4K Ultra HD on a Single Monitor - USB3DOCKHDPC
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

USB3DOCKHDPC

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

4K Docking Station for Laptops - DP and HDMI - USB 3.0

Marketing Information

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).

4K Ultra HD Resolutions

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).

Maximum Supported Resolutions*

Video Output Configuration Max DisplayPort Resolution Max HDMI Resolution

DisplayPort (Single Display)

3840 x 2160p (4K) N/A HDMI (Single Display) N/A 2560 x 1440p DisplayPort and HDMI (Two Displays) 2048 x 1152p 2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Integrated USB 3.0 Hub

The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

USB Fast Charge

The USB 3.0 dock's always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.

Easy to Use

This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.

Product Type

Docking Station
Technical Information

Connectivity Technology

Wired

Charging Capability

Yes

Synchronizing Capability

Yes

Device Supported

Notebook

Cable Length

2 ft

Number of Displays Supported

2

Supported Resolutions

  • 3840 x 2160
  • 2560 x 1440
  • 2048 x 1152
Network & Communication

Ethernet Technology

Gigabit Ethernet
Interfaces/Ports

Host Interface

USB 3.0

Total Number of USB Ports

4

Number of USB 3.0 Ports

4

USB Type-A

Yes

Network (RJ-45)

Yes

DisplayPort

Yes

Headphone

Yes

Headphone/Microphone Combo Port

Yes

Microphone

Yes

HDMI

Yes
Controls/Indicators

Status Indicators

LED Indicators:
  • 1 - Link (Green)
  • 1 - Activity (Yellow)
Software

Operating System Supported

  • macOS 14
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows 11
  • Mac OS X Server 10.8 Mountain Lion
  • Mac OS X 10.12 Sierra
  • Mac OS X 10.14 Mojave
  • Mac OS X 10.15 Catalina
  • Mac OS X 11.0 Big Sur
  • Mac OS X 12.0 Monterey
  • Mac OS X 13.0 Ventura
  • ChromeOS 55+
Physical Characteristics

Color Family

Black

Product Color

Black

Height

0.90"

Width

3"

Length

8.9"

Weight (Approximate)

9.80 oz
Miscellaneous

Kensington Security Slot

Yes

Compatibility

  • Apple Mac Laptops

Microsoft Products:

  • Surface Pro 4
  • Surface Pro 3
  • Surface 3
  • Surface Pro 2
  • Surface Book

Brand Compatibility

  • Apple
  • Microsoft

Environmentally Friendly

Yes

Country of Origin

Taiwan

TAA Compliant

Yes
