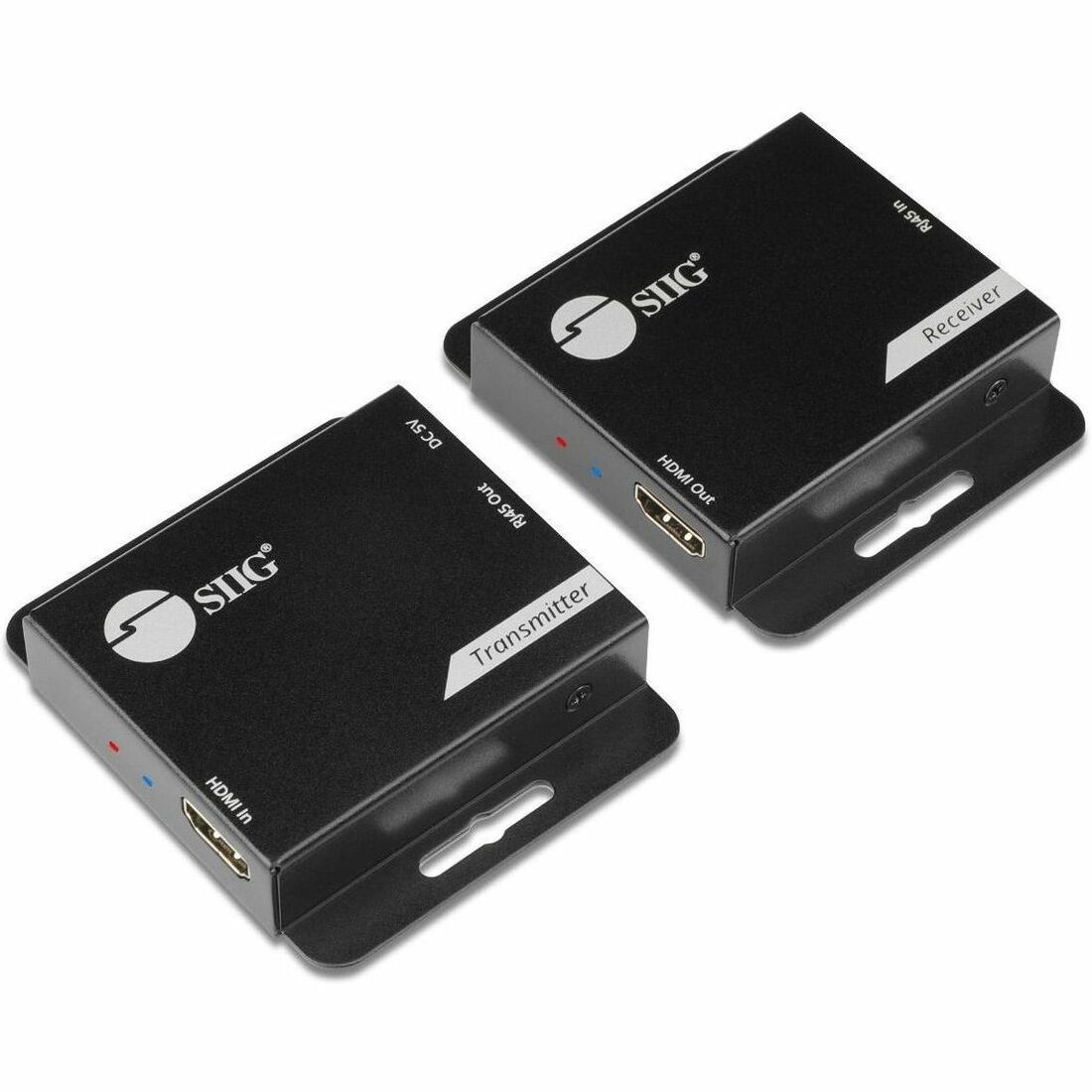

HDMI OVER CAT6 EXTENDER 60M 1080P POC METAL HOUSING

Name: HDMI OVER CAT6 EXTENDER 60M 1080P POC METAL HOUSING
Brand: SIIG
SKU: RS8916
Price: 46.35 USD
Availability: InStock

SIIG

PCN#

RS8916

MFG#

CE-H3EX01-S1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$46.35

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

HDMI Over Cat6 Extender
Extends HDMI audio/video signals up to 197ft over Cat6 cable. Supports 720p/1080i/1080p at 60Hz resolutions, PoC, HDCP1.4, 3D, Mountable Metal Housing Design

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

SIIG HDMI Over Cat6 Extender - 60m - 1080p - PoC - Metal Housing

Overview

Tech Specs

Specifications

Manufacturer	SIIG, Inc
Manufacturer Part Number	CE-H3EX01-S1
Manufacturer Website Address	http://www.siig.com
Brand Name	SIIG
Product Name	Full HD HDMI Extender with IR
Marketing Information	Easily extend HDMI audio/video signals over a cost effective Cat5e/6 network cable, while maintaining signal strength and superior quality and supports up to 1080p resolution and extends transmission distance up to 164ft (50m) with nearly zero latency Extend Distance This Full HD HDMI Extender with IR designed to extends/splits HDMI signals up to 164ft (50m) through RJ45 network to a remote HDMI display for reliability transmission IR Extension Built-in on way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 20-60KHz carrier frequency Note:Remote controller should be used within 15 feet of transmitter to send signal to the receiver. The best result for the sensor is to point directly High Performance Offers a true 10.2Gbps video bandwidth and supports pure unaltered uncompressed 7.1-ch. surround sound from HDMI Full HD Video Resolution Supports video resolution up to 1080p (1920x1080) @60Hz YUV 4:4:4 8-bit, HDCP 1.2 to deliver a clear picture quality and allows EDID auto-learning for remote and local displays Multiple Connectivity Ports Comes with one HDMI video input port, one HDMI video output port, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, two reset buttons, two DC power jacks (5V/1A)
Product Type	Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology	Wired
Maximum Operating Distance	164 ft

Video

Supported Video Modes	1080p 1080i 720p 480i 480p
Maximum Video Resolution	1920 x 1080

Interfaces/Ports

Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	2
Number of HDMI Inputs	1
Number of HDMI Outputs	1
Remote (IR) Input	1
Remote (IR) Output	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6e Category 5e

Physical Characteristics

Color Family	Black
Product Color	Black
Transmitter Height	0.97"
Transmitter Width	2.60"
Transmitter Depth	2.80"
Receiver Height	0.97"
Receiver Width	2.60"
Receiver Depth	2.80"
Form Factor	Wall Mountable
Transmitter Weight (Approximate)	3.04 oz
Receiver Weight (Approximate)	2.88 oz

Miscellaneous

Package Contents	Full HD HDMI Extender with IR 1 x 3.5mm IR Emitter Extension Cable 1 x 3.5mm IR Receiver Extension Cable 2 x DC Power Adapter, 5V/1A 1 x User Reference Guide
Application/Usage	Home Theater Lecture Hall Digital Signage System Educational Facilities Surveillance System Library Control Center Shopping Center Office Restaurant Conference Room Hospital Showroom Church Display Computer Monitor Desktop PC
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
