SDM-M2-0812 INTEL SMART DISPLAY MODULE WITH AN INTEL ATOM PROCESSOR

by
SHARP
PCN#
JS5368
MFG#
SDM-M2-0812

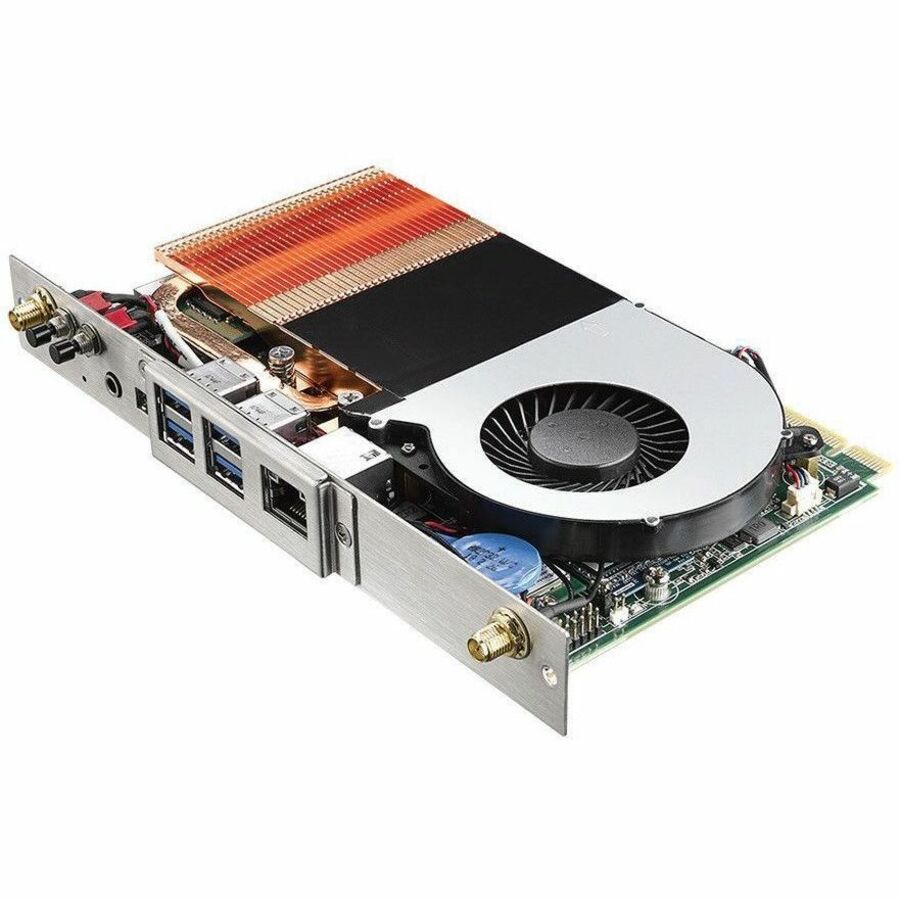

main product photo
fotorama-image
fotorama-image
$1,021.07
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Intel
  • Core i3
  • i3

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 YearAdditional Warranty Information3 Years warranty, additional services available
Shipping Weight: 3 lbs.
NEC Display SDM Slot-In PC Midrange
Overview
Tech Specs
Specifications

Manufacturer

Sharp

Manufacturer Part Number

SDM-M2-0812

Manufacturer Website Address

http://www.sharp-nec-displays.com/

Brand Name

NEC Display

Product Model

SDM-M2-0812

Product Name

SDM Slot-In PC Midrange

Marketing Information

Intel® Smart Display Module (SDM) 8th Generation - The Midrange Core i3 SDM

This Core i3 powered Intel® SDM Large Slot-in PC supports a wide variety of applications such as flight and passenger information, retail and corporate signage as well as interactive and kiosk applications.

Tailor-made solutions can be provided with a wide choice of solid-state drives, RAM and operating systems.

  • Versatile Performance - the Core i3-8100H processor with 8GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time, powering the next generation of embedded computing
  • Tailored for your needs - customer specific configurations for RAM, SSD, operating system and pre-installed software
  • High usage flexibility -thanks to wide connectivity such as 4 x USB, MiniDP++, Gigabit Ethernet, Audio and optional WiFi, there's no need to add additional adapters or signal splitters
  • Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232
  • 100% compatibility and enhanced feature-set - in combination with supported NEC large format displays
  • Built for business - the TPM chipset provides enhanced hardware security through integrated cryptographic keys
  • High reliability - ideally suited for 24/7 operation due to the use of industrial grade components


Product Type

Single Board Computer
Processor & Chipset

Processor Manufacturer

Intel

Processor Type

Core i3

Processor Model

i3-8100H

Processor Core

Quad-core (4 Core)

Processor Speed

3 GHz

Chipset Manufacturer

Intel

Chipset Model

QM370
Memory

Standard Memory

8 GB

Memory Technology

DDR4 SDRAM
Storage

Total Solid State Drive Capacity

128 GB
Display & Graphics

Graphics Controller Manufacturer

Intel

Graphics Controller Model

UHD Graphics 630

Graphics Memory Accessibility

Shared
Network & Communication

Ethernet Technology

Gigabit Ethernet
Interfaces/Ports

HDMI

Yes

Total Number of USB Ports

5

Network (RJ-45)

Yes

DisplayPort

Yes

Mini DisplayPort

Yes
Software

Operating System

Windows 10 IoT Enterprise LTSC x64
Physical Characteristics

Form Factor

Slot-in PC

Weight (Approximate)

2.20 lb
Miscellaneous

Application/Usage

  • LCD Display
  • Digital Signage

Compatibility

  • M491 Display
  • M491-MPi4E Display
  • M551 Display
  • M551-MPi4E Display
  • M651 Display
  • M651-MPi4E Display
  • M751 Display
  • M861 Display
  • M981 Display
  • MA431 Display
  • MA431-MPi4E Display
  • MA491 Display
  • MA491-MPi4E Display
  • MA551 Display
  • MA551-MPi4E Display
  • ME501 Display
  • ME501-MPi4E Display
  • ME551 Display
  • ME551-MPi4E Display
  • ME651 Display
  • ME651-MPi4E Display
  • P435 Display
  • P435-MPi4E Display
  • P495 Display
  • P495-MPi4E Display
  • P555 Display
  • P555-MPi4E Display
Warranty

Limited Warranty

3 Year

Additional Warranty Information

3 Years warranty, additional services available
