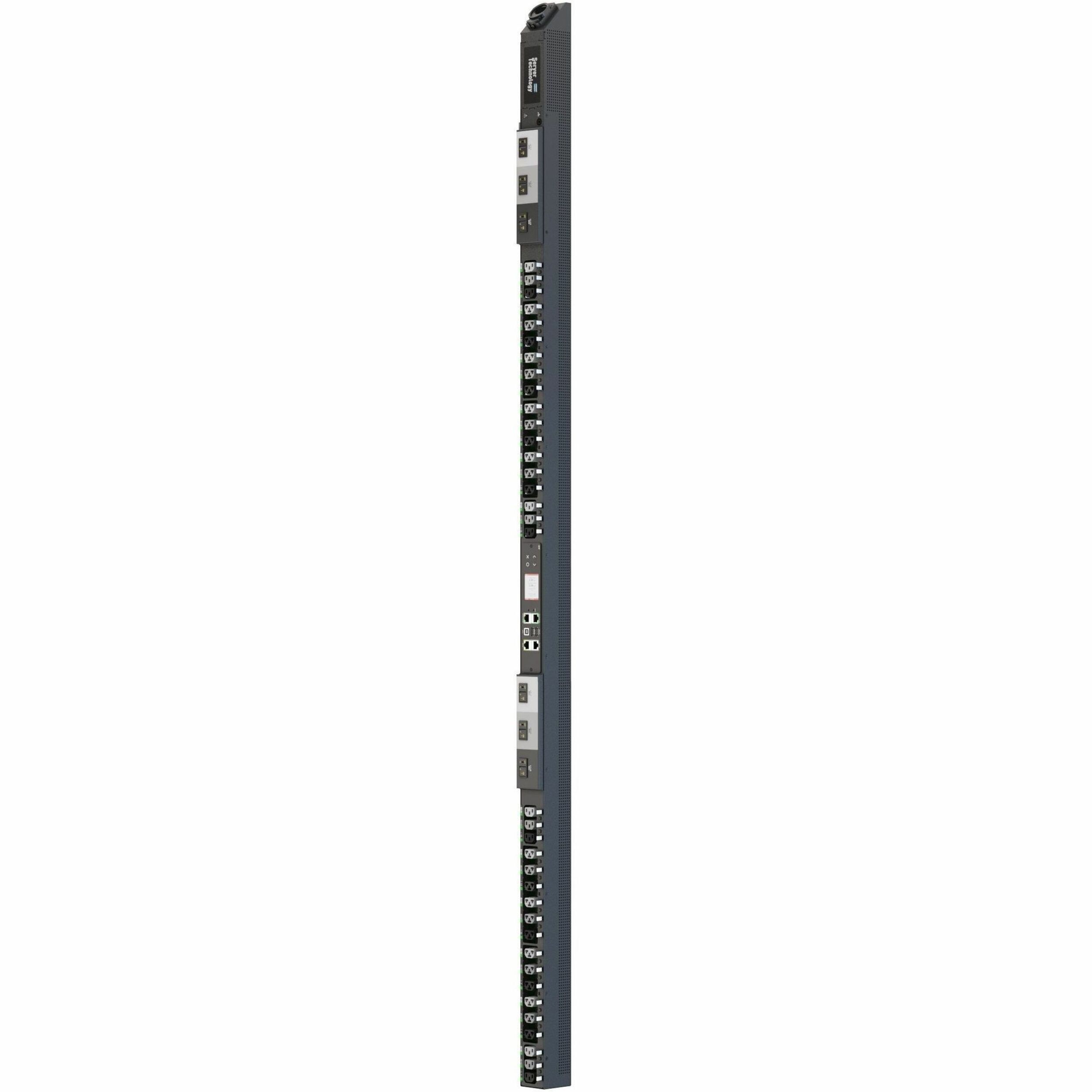

PRO4 SMRTPOP 12C13 24CX 208-240V 50A CS8365 PLUG

Key Features | HDOT Cx Outlets

Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.

45 Degree Angled Infeed

The angled infeed improves accessibility, provides infeed strain relief, and its bend radius is suitable with 60A rated cords.

Network Monitoring

Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.

Multi-Unit Linking & Cascading

Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.

Multi-Color LCD

An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.

Hot Swappable Controller

The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.

Power Quality Measurements

Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.

RGB LED Outlet Indicators

RGB LEDs identify an outlet's on/off state, if it's above/below a certain power threshold, or if it's in suspect of a power measurement irregularity.

Waveform Capture

Capture voltage and current waveforms automatically or upon demand.

RamLock Locking Outlets

A mechanical locking mechanism built to secure the broadest range of C14 and C20 plugs in place.

Environmental Monitoring

Support up to 12 daisy chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.

Per-Inlet Power Sensing

PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.

Per-Outlet Power Sensing

POPS® (Per Outlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, and Energy per outlet.

Branch Circuit Protection

This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.

• IEC 60320 C13
• CX

• 12 x IEC 60320 C13
• 24 x CX

• Branch Circuit
• Circuit Protection
• Fuse

• HTTP/HTTPS
• TLSv1.2
• SSHv2
• Telnet
• SNMPv2c
• v3 (GET, SET, Traps)
• IPv4
• IPv6
• LDAPv3/LDAPS
• TACACS+
• RADIUS
• FTP/SFTP

Safety (Listed & Certified, cTUVus mark):

• UL 62368-1
• CSA C22.2 No. 62368-1

EMC:

• FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
• CAN ICES-003, Class A
