SMART PRIMARY PRO1 CONFIG ALT PHASE HDOT OUTLETS 415V 3PH WYE12BR

Name: SMART PRIMARY PRO1 CONFIG ALT PHASE HDOT OUTLETS 415V 3PH WYE12BR
Brand: SERVER TECHNOLOGY
SKU: 02HL67
Price: 2515.14 USD
Availability: InStock

SERVER TECHNOLOGY

PCN#

02HL67

MFG#

C1S24TB-5QAE2766

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,515.14

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Monitored
IEC 60309 3P+N+G 6Hr 60A
12 x IEC 60320 C13, 12 x CX
230 V AC, 415 V AC
Branch Circuit, Circuit Protection, Fuse
Network (RJ
45)
Rack
mountable, Cabinet
mountable, Button Mount

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 30 lbs.

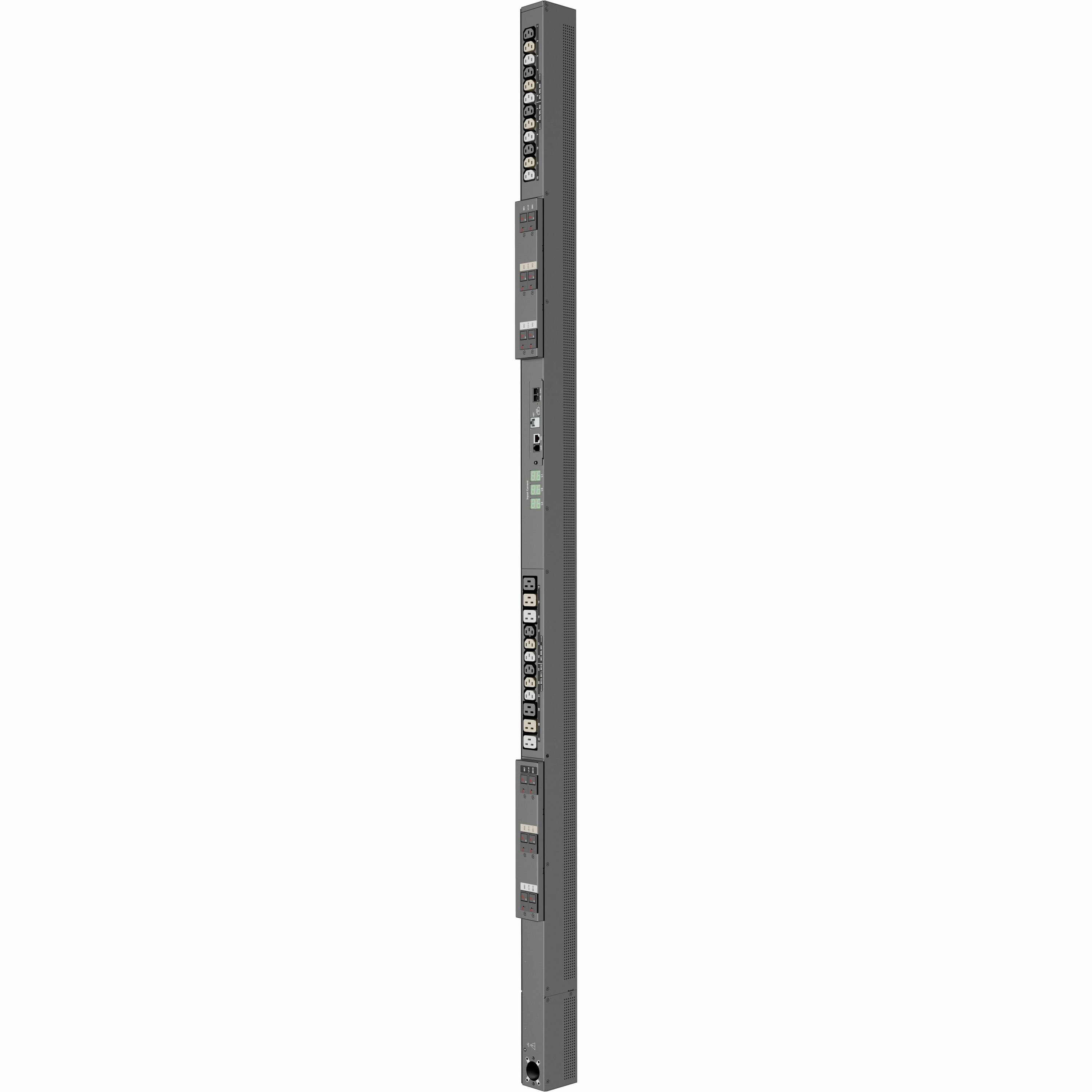

Server Technology PRO1 Smart 24-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	C1S24TB5QAE2766
Manufacturer Website Address	http://www.legrand.us
Brand Name	Server Technology
Product Line	PRO1
Product Series	Smart
Product Name	PRO1 Smart 24-Outlets PDU
Marketing Information	The Server Technology® PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Smart "Primary" PDU can be connected to as many as three (with optional module) PRO1 Smart "Link" PDU to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P+N+G 6Hr 60A
Receptacle Type	IEC 60320 C13 CX
Receptacle Detail	12 x IEC 60320 C13 12 x CX
Protection Type	Branch Circuit Circuit Protection Fuse
Features	LED Display

Power Description

Input Voltage	230 V AC 415 V AC
Output Voltage	240 V AC
Power Rating (Watt)	34.50 kW
Input Current	60 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

HTTP/HTTPS
TLSv1.2
SSHv2
Telnet
SNMPv2c
v3 (GET, SET, Traps)
IPv4
IPv6
LDAPv3/LDAPS
TACACS+
RADIUS
FTP/SFTP

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mount Type	Rack-mountable Cabinet-mountable Button Mount
Height	70"
Width	2.2"
Depth	3"

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Operating Humidity	8%
Maximum Operating Humidity	90%
Minimum Storage Temperature	-40°F (-40°C)
Maximum Storage Temperature	185°F (85°C)

Miscellaneous

Package Contents	PRO1 Smart 24-Outlets PDU Standard Button Mounts
Application/Usage	IT Equipment Server Rack/Cabinet
Certifications & Standards	Safety (Listed & Certified, cTUVus mark): UL 62368-1 CSA C22.2 No. 62368-1 EMC: FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A CANICES-003, Class A

Warranty

Limited Warranty

2 Year
