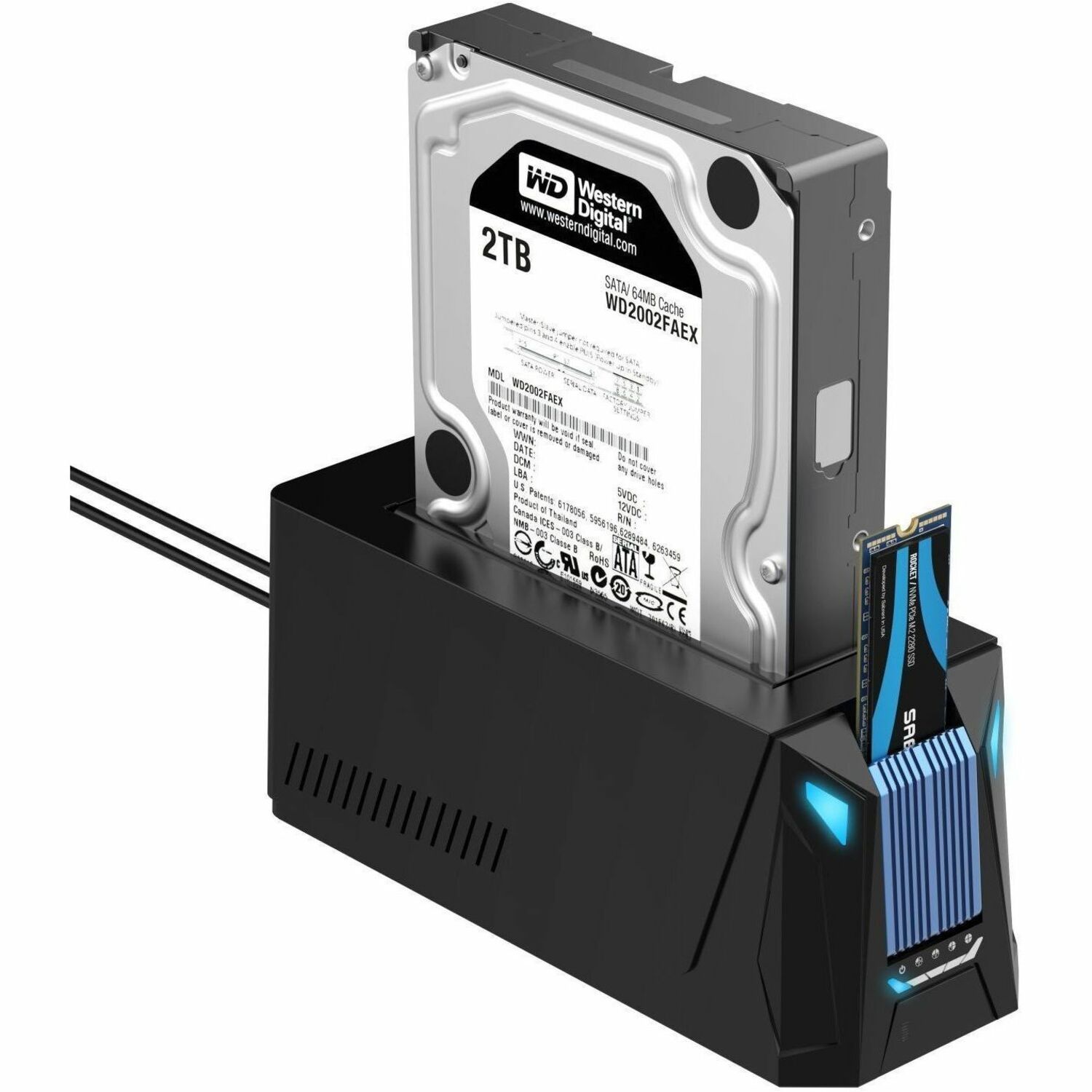

USB C DOCKING STATION FOR M.2 PCIE/NVME SATA 2.5IN SSD HDD

by
SABRENT
PCN#
09TN85
MFG#
DS-UNHC
$80.24
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Hot Swappable Bays
  • 1 x HDD Supported
  • 1 x SSD Supported

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 1 lbs.
Sabrent Drive Dock for 3.5" , 2.5" PCI Express NVMe, SATA - USB 3.2 (Gen 2) Host Interface
Tech Specs
Specifications

Manufacturer

Sabrent, Inc

Manufacturer Part Number

DS-UNHC

Manufacturer Website Address

http://www.sabrent.com

Brand Name

Sabrent

Product Name

USB-C Docking Station for M.2 PCIe/NVMe and SATA 2.5/3.5-Inch SSD & HDD

Marketing Information

Product Features | Connect, Clone and Go

Supports single- and dual-drive modes, including PCIe and SATA simultaneously. 2.5"/3.5" drives supported along with M.2 PCIe. Drives can be accessed at the same time. Offline clone functionality.

Everything Included

Includes USB Type-A to Type-C and Type-C to Type-C cables. External power adapter is included, required for 3.5" and multi-drive use. Thermal padding is also in the box for your convenience for cool M.2 PCIe SSD operation.

Designed to Last

Constructed of high-quality ABS plastic to improve device ruggedness. The built-in aluminum M.2 heatsink also helps dissipate heat away from your drives during operation.

Easy to Use

Plug & play with no drivers required. Hot-swappable. Easy, tool-less installation of drives into the device. LED indicators keep you informed of status.

Simplify Your Life

Reliably access and clone your 2.5"/3.5" SATA SSDs/HDDs and M.2 PCIe SSDs with the Sabrent USB Type-C Docking Station. Simultaneous SATA and PCIe access is supported. An external power adapter is included to ensure a consistent connection for all drives, but is not necessary for single SSD operation. Both Type-A to Type-C and Type-C to Type-C USB cables are also included to match any host. The docking station can transfer at up to 10Gbps (USB 3.2 Gen 2) with a compatible port, but will fallback to earlier USB revisions if necessary.

Built to last with additional features to keep your drives healthy, such as a dustguard and built-in M.2 heatsink with applicable silica thermal padding. If you're constantly working drives, this product can be a lifesaver. The docking station is plug and play with modern operating systems. Drive installation is tool-less and straightforward. Convenient LED indicators indicate device and drive power statuses with an additional four to gauge cloning progress. This attractive docking station will fit into your gaming décor and simplify your life.

Product Type

Drive Dock
Technical Information

Number of Hard Drives Supported

1

Number of Hard Drives Installed

0

Number of Solid State Drive Supported

1

Number of Solid State Drive Installed

0

Maximum Data Transfer Rate

10 Gbit/s
I/O Expansions

Number of Total Expansion Bays

1

Number of 2.5"/3.5" Bays

1

Hot Swappable Bays

Yes
Interfaces/Ports

Drive Interface

  • PCI Express NVMe
  • SATA

Host Interface

USB 3.2 (Gen 2)

Number of USB Ports

1
Software

Operating System Supported

  • Windows 8.1
  • Windows 7
  • Windows 8
Physical Characteristics

Product Material

ABS Plastic

Compatible Drive Bay Width

  • 3.5"
  • 2.5"

Height

2.6"

Width

2.4"

Depth

6.1"

Weight (Approximate)

7 oz
Miscellaneous

Package Contents

  • USB-C Docking Station for M.2 PCIe/NVMe and SATA 2.5/3.5-Inch SSD & HDD
  • 12V/2A Power Adapter
  • 40-Inch USB Type-A To Type-C And Type-C To Type-C Cables.
  • Silica Thermal Pad
  • User Manual
Warranty

Limited Warranty

1 Year
