SMARTPOPS 3PH 208V 30A 18C13 18CX 3XNEMA 5-20R NEMA L21-30P PLUG

Name: SMARTPOPS 3PH 208V 30A 18C13 18CX 3XNEMA 5-20R NEMA L21-30P PLUG
Brand: RARITAN
SKU: NP3066
Price: 2474.9 USD
Availability: InStock

RARITAN

PCN#

NP3066

MFG#

PX4-441A-E7

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,474.90

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered, Metered
by
Outlet
NEMA L21
30P (4P5W)
18 x IEC 60320 C13, 18 x IEC 60320 C19, 3 x NEMA 5
20R
208 V AC
Branch Circuit, Circuit Breaker, Overload Protection
Network (RJ
45)
9.84 ft Cord Length
Button Mount

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

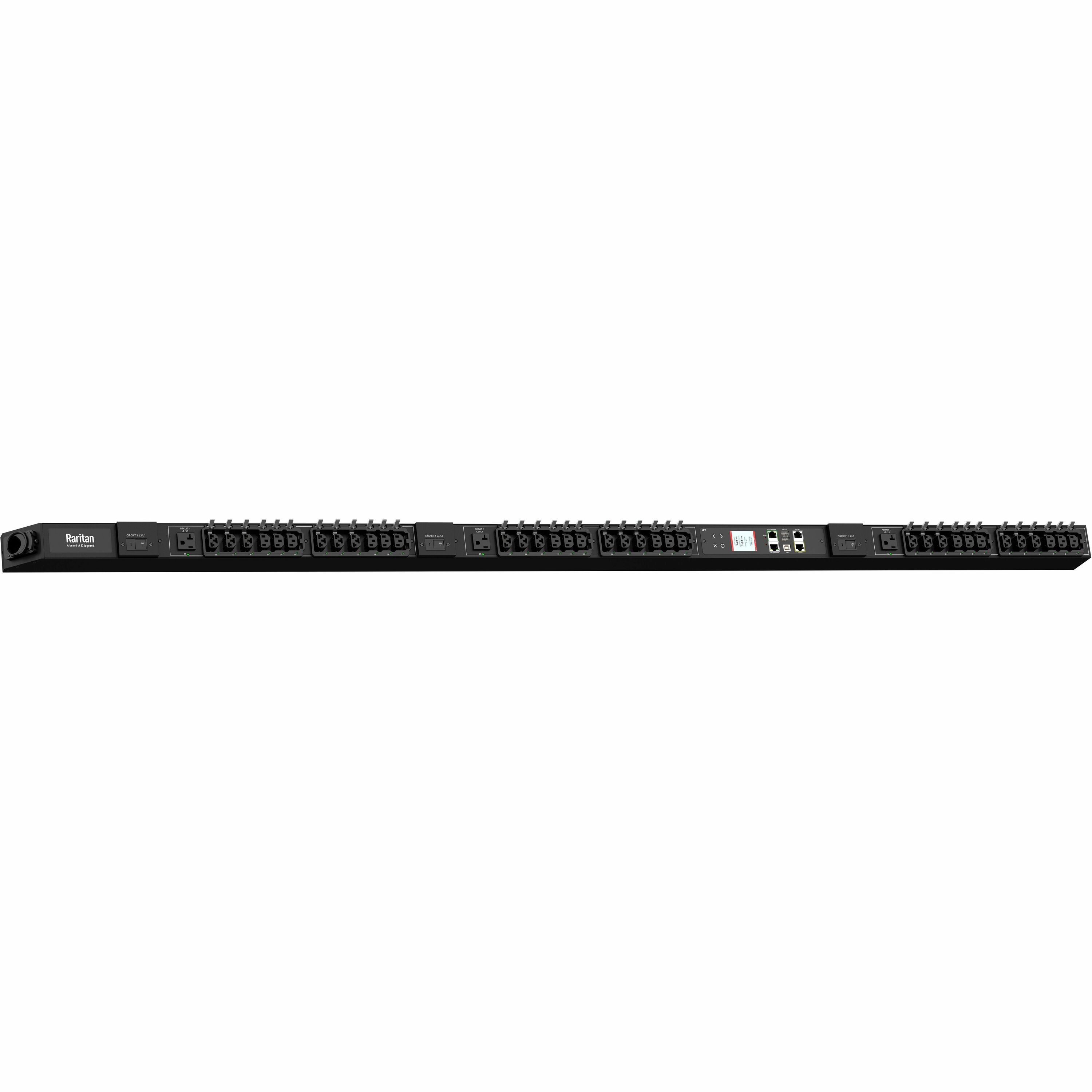

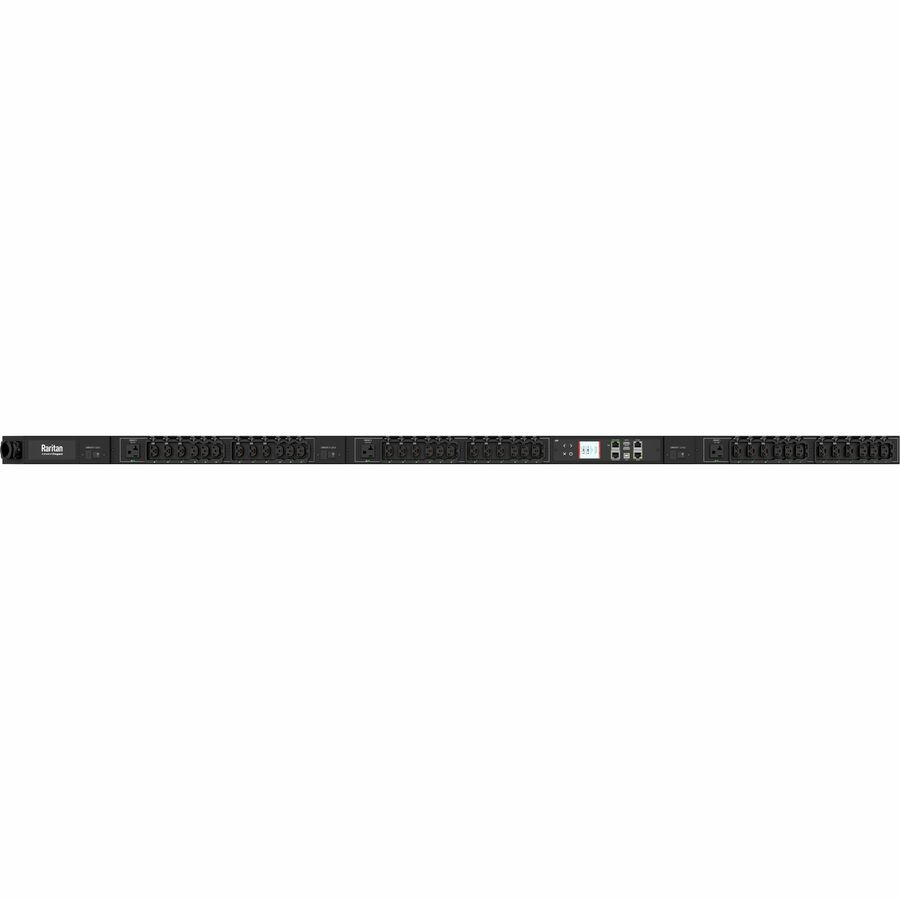

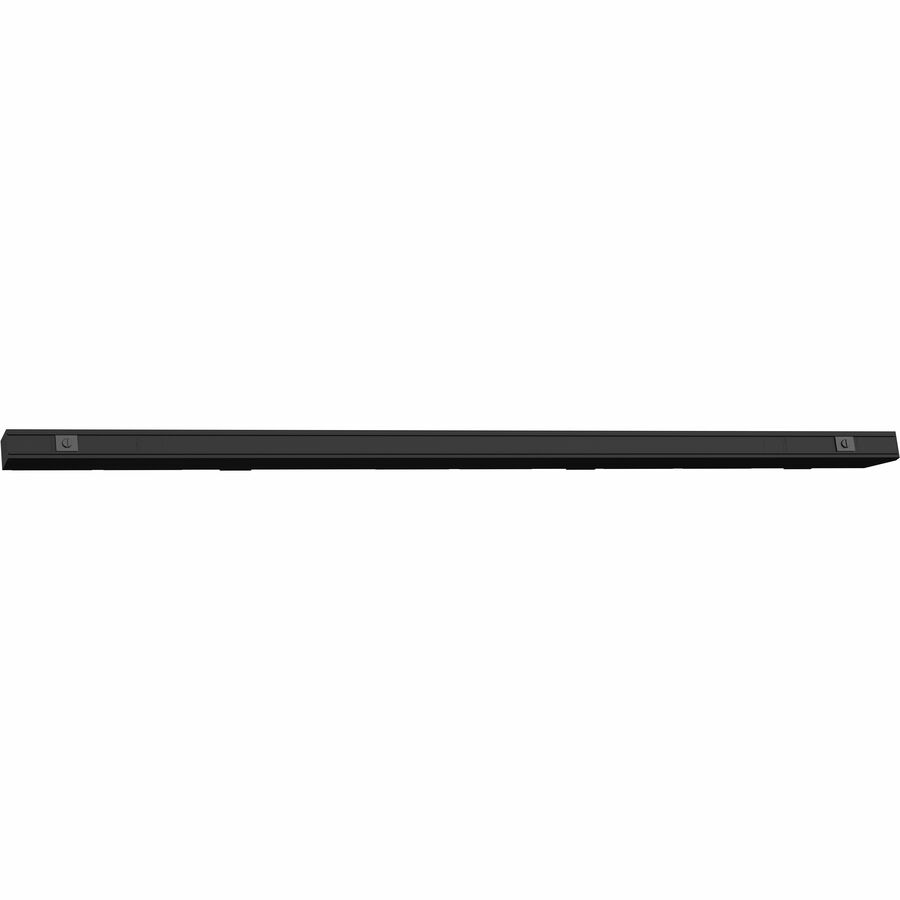

Raritan PX4-441A-E7 39-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	PX4-441A-E7
Manufacturer Website Address	http://www.legrand.us
Brand Name	Raritan
Product Series	PX4
Product Model	PX4-441A-E7
Product Name	PX4-441A-E7 39-Outlets PDU
Product Type	PDU

Technical Information

PDU Type	Metered Metered-by-Outlet
Phase	Three Phase
Plug/Connector Type	NEMA L21-30P (4P5W)
Receptacle Type	IEC 60320 C13 IEC 60320 C19 NEMA 5-20R
Receptacle Detail	18 x IEC 60320 C13 18 x IEC 60320 C19 3 x NEMA 5-20R
Protection Type	Branch Circuit Circuit Breaker Overload Protection
Locking Receptacles	P-Lock SecureLock
Features	Multi-color LCD Onboard Display
Load Capacity (VA)	8600 W

Power Description

Input Voltage	208 V AC
Input Voltage Range	190 V AC - 208 V AC
Output Voltage	120 V AC
Output Voltage Range	120 V AC - 208 V AC
Power Rating (VA)	8600 VA
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	HTTP(s) SSH (CLI) Telnet RS-232 (Serial) SNMP version v2/v3 SMTP JSON-RPC API MODBUS-TCP Redfish API
Remote Outlet Switching	No

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Mount Type	Button Mount
Cord Length	9.84 ft
Height	70.1"
Width	2.2"
Depth	2.6"
Weight (Approximate)	16.71 lb

Environmental Conditions

Maximum Operating Temperature	140°F (60°C)
Minimum Operating Humidity	5%
Maximum Operating Humidity	95%
Minimum Storage Temperature	-22°F (-30°C)
Maximum Storage Temperature	176°F (80°C)

Miscellaneous

Certifications & Standards	UL Listed Canada ICES-003 Part 15 Class A of the FCC Rules
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
