1PH, 120V AC, 30A (24A RATED); 24 OUTLETS: 24X NEMA 5-20R; PLUG: NEMA L5-30P (BO

Name: 1PH, 120V AC, 30A (24A RATED); 24 OUTLETS: 24X NEMA 5-20R; PLUG: NEMA L5-30P (BO
Brand: RARITAN
SKU: 4877AV
Price: 775 USD
Availability: InStock

RARITAN

PCN#

4877AV

MFG#

PX3-1478

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$775.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
NEMA L5
30P (2P3W)
24 x NEMA 5
20R
120 V AC
Branch Circuit, Overload Protection
Network (RJ
45)
9.84 ft Cord Length
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 16 lbs.

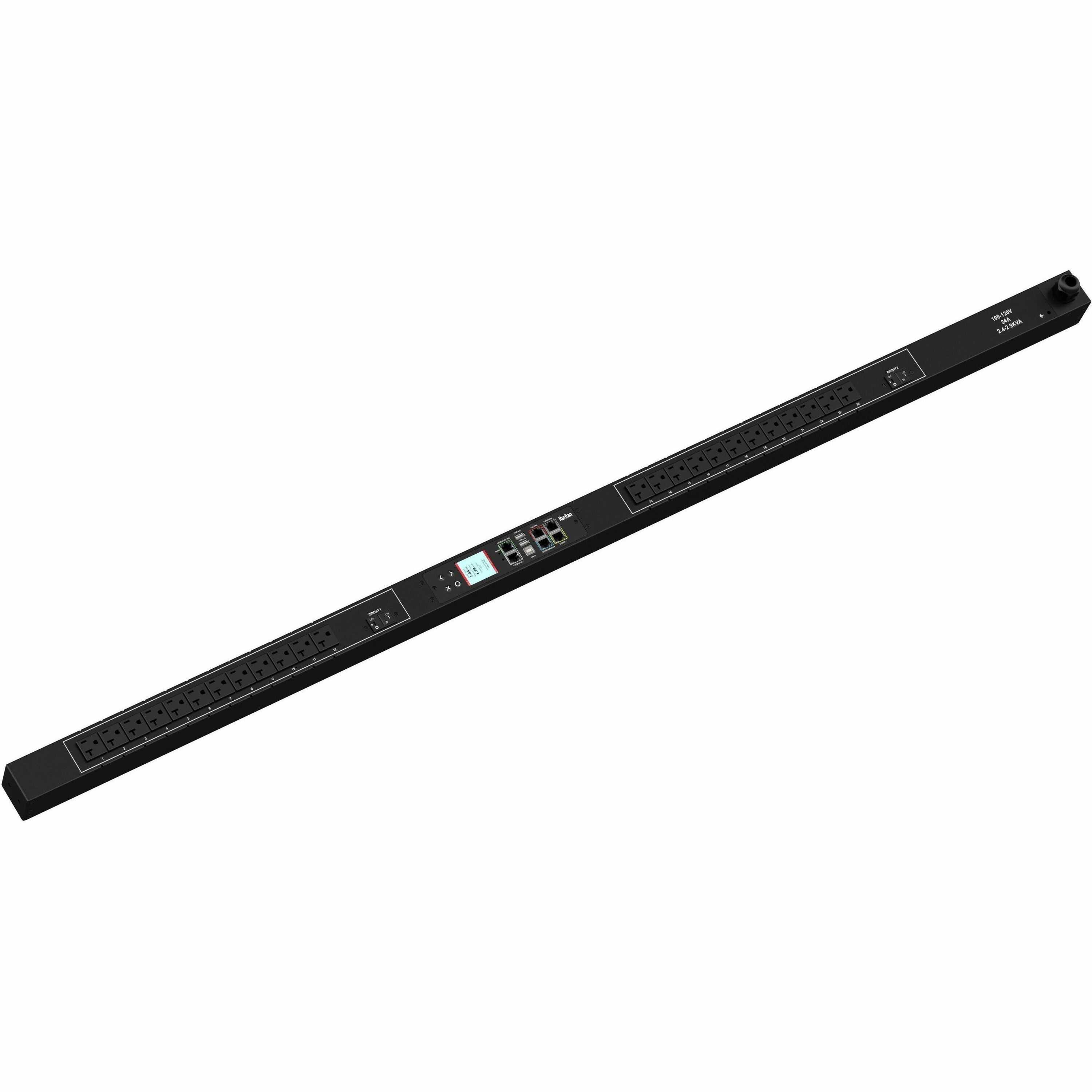

Raritan PX3-1478 24-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	PX3-1478
Manufacturer Website Address	http://www.legrand.us
Brand Name	Raritan
Product Series	PX3
Product Model	PX3-1478
Product Name	PX3-1478 24-Outlets PDU
Product Type	PDU

Technical Information

PDU Type	Metered
Phase	Single Phase
Plug/Connector Type	NEMA L5-30P (2P3W)
Receptacle Type	NEMA 5-20R
Receptacle Detail	24 x NEMA 5-20R
Protection Type	Branch Circuit Overload Protection
Features	LCD Display Onboard Display
Load Capacity (VA)	2400 W

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	120 V AC
Output Voltage Range	100 V AC - 120 V AC
Power Rating (VA)	2900 VA
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	HTTP(s) SSH Telnet RS-232 (Serial) Power IQ SNMP version v2/v3 SMTP JSON-RPC Modbus over TCP
Remote Outlet Switching	No

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Other
Product Color	Black Powder Coat
Mount Type	Rack-mountable
Cord Length	9.84 ft
Height	60.6"
Width	2.1"
Depth	2.2"

Environmental Conditions

Maximum Operating Temperature	140°F (60°C)
Maximum Operating Humidity	85%

Miscellaneous

Certifications & Standards	UL Listed Canada ICES-003 Part 15 Class A of the FCC rules
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
