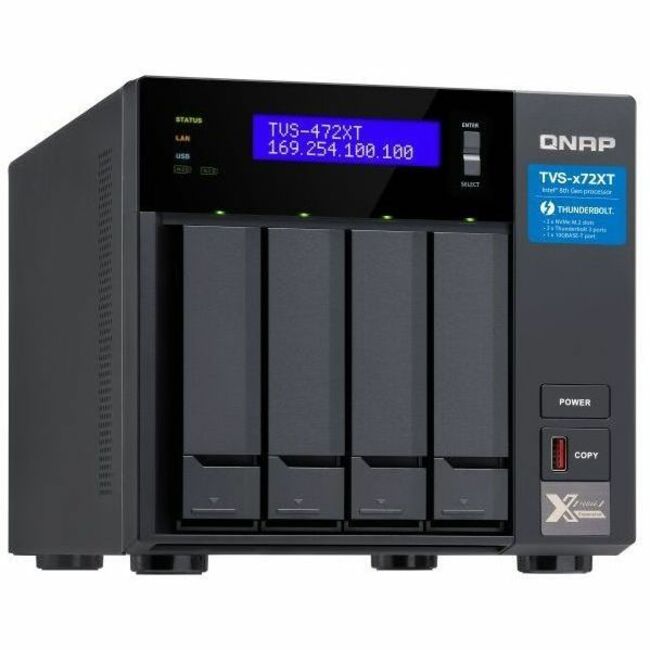

QNAP TVS-472XT-i3-4G SAN/NAS/DAS Storage System

Powered by an 8th generation Intel® Pentium® Gold / Intel® Core™ i3/i5 processor, the high-performance TVS-472XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-472XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-472XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!

1

• High-speed Thunderbolt™ 3 with SMB protocol, perfect for collaboration on media editing.

2

• 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.

3

• PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.

4

• Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.

5

• 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.

6

• Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Fast and flexible Thunderbolt™ 3 and 10GBASE-T connectivity

The TVS-472XT provides options with the powerful 8th generation Intel® Pentium® Gold processor with 4 GB dual-channel DDR4 memory (upgradable to 64 GB), and Intel® Core™ i3/i5 processor with 4 GB dual-channel DDR4 memory (upgradable to 64 GB). It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt™ 3 ports to transfer large media files across devices, providing you with a more efficient workflow.

Extend NAS functionality with a graphics card and other PCIe devices

The TVS-472XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt™ 3 card) that allow for the usage of various expansion cards to expand application potential.

Graphics cards

Accelerate NAS video processing and empower GPGPU tasks. GPUs can also be passed-through to virtual machines.

QM2 M.2 SSD/10GbE cards

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

10GbE/ 40GbE adapters

Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration.

Wireless network cards

Install a QXP-W6-AX200 Wi-Fi 6 wireless adapter to turn the TVS-472XT into a wireless NAS. Or make the TVS-472XT a wireless access point by installing the QWA-AC2600 wireless adapter and the WirelessAP Station app.

• 10 Gigabit Ethernet
• Gigabit Ethernet

• PCI Express 3.0 x16
• PCI Express 3.0 x4

• TCP/IP
• IPv4
• IPv6
• DHCP
• NAT
• STP
• DDNS
• SSH
• Telnet
• HTTP
• HTTPS
• FTP
• CIFS/SMB
• AFP
• iSCSI
• SNMP
• WEBDAV
• LDAP
• SSL/TLS
• FXP
• MTP
• PPTP
• L2TP
• IPSec
• DLNA
• UPnP

• TVS-472XT-i3-4G SAN/NAS/DAS Storage System
• 2 x Gigabit Ethernet Cables
• 1 x 10Gbase-T Ethernet Cable
• Flat Head Screw (for 2.5" HDD )
• Flat Head Screw (for 3.5" HDD)
• 2 x M.2 SSD Heatsinks
• 1 x Power Cord
• Quick Installation Guide (QIG)

The TVS-472XT is backed by a 2-year warranty at no extra cost.
