6-BAY DESKTOP AI NAS NPU 6TOPS 4C ARM CORTEX-A76 2.2GHZ 4C

Name: 6-BAY DESKTOP AI NAS NPU 6TOPS 4C ARM CORTEX-A76 2.2GHZ 4C
Brand: QNAP
SKU: HK0127
Price: 701.01 USD
Availability: InStock

QNAP

PCN#

HK0127

MFG#

TS-AI642-8G-US

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$701.01

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

ARM Cortex A76 Quad
core (4 Core) 2.20 GHz
6 x HDD Supported
0 x HDD Installed
6 x SSD Supported
0 x SSD Installed
8 GB RAM DDR4 SDRAM
Serial ATA/600 Controller
RAID Supported
0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels
6 x Total Bays
6 x 2.5"/3.5" Bay
Gigabit Ethernet, 2.5 Gigabit Ethernet
HDMI
4 USB Port(s)
2 USB 2.0 Port(s)
Network (RJ
45)
QTS 5.1.3
IPv4, IPv6, DHCP, CIFS/SMB, AFP, NFSv3, FTP, FTPS, SFTP, TFTP, HTTP, ...
4 GB Flash Memory Capacity

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThe TS-AI642 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Shipping Weight: 13 lbs.

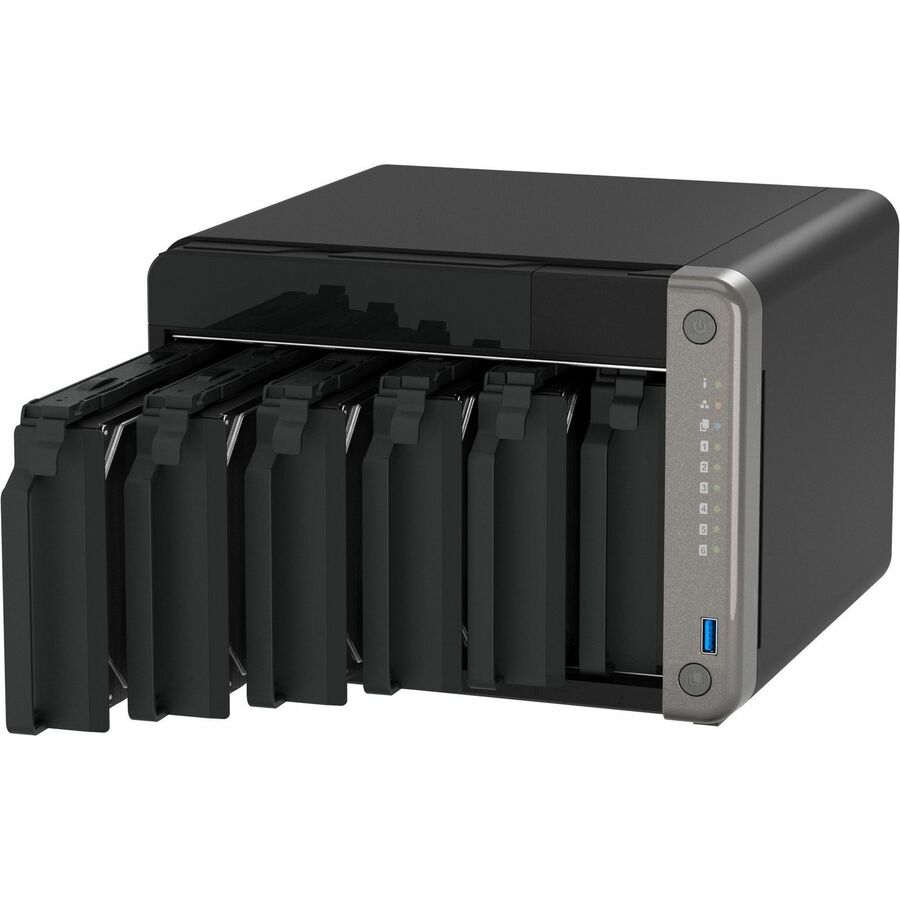

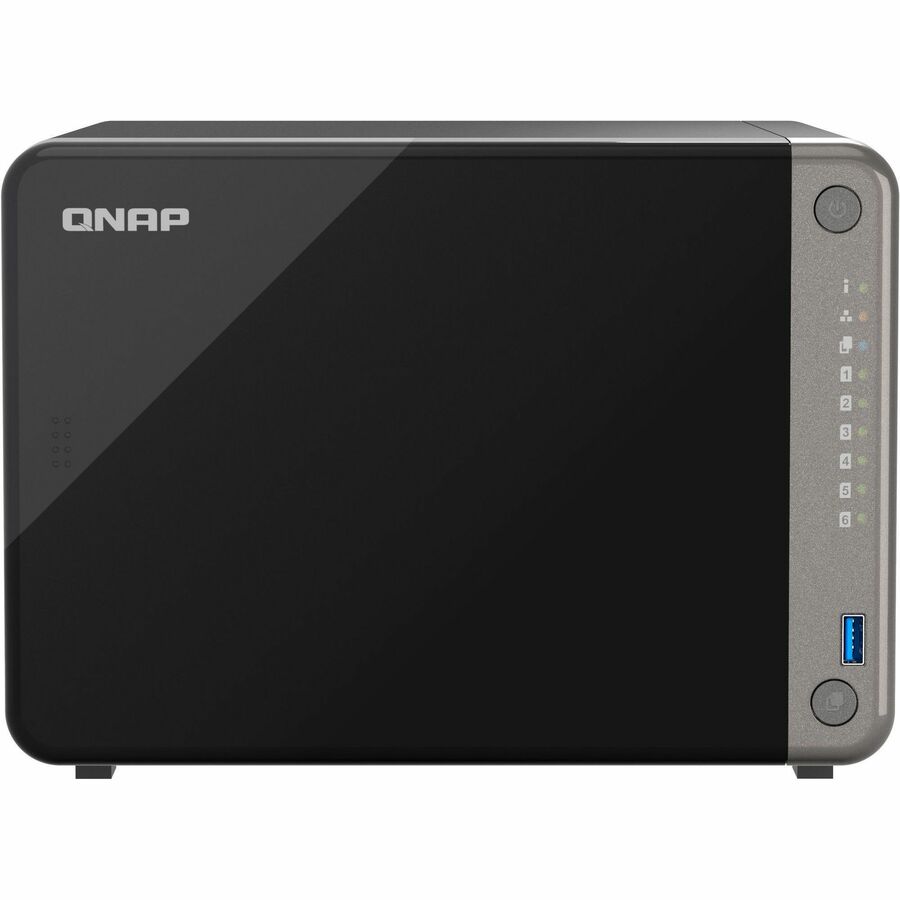

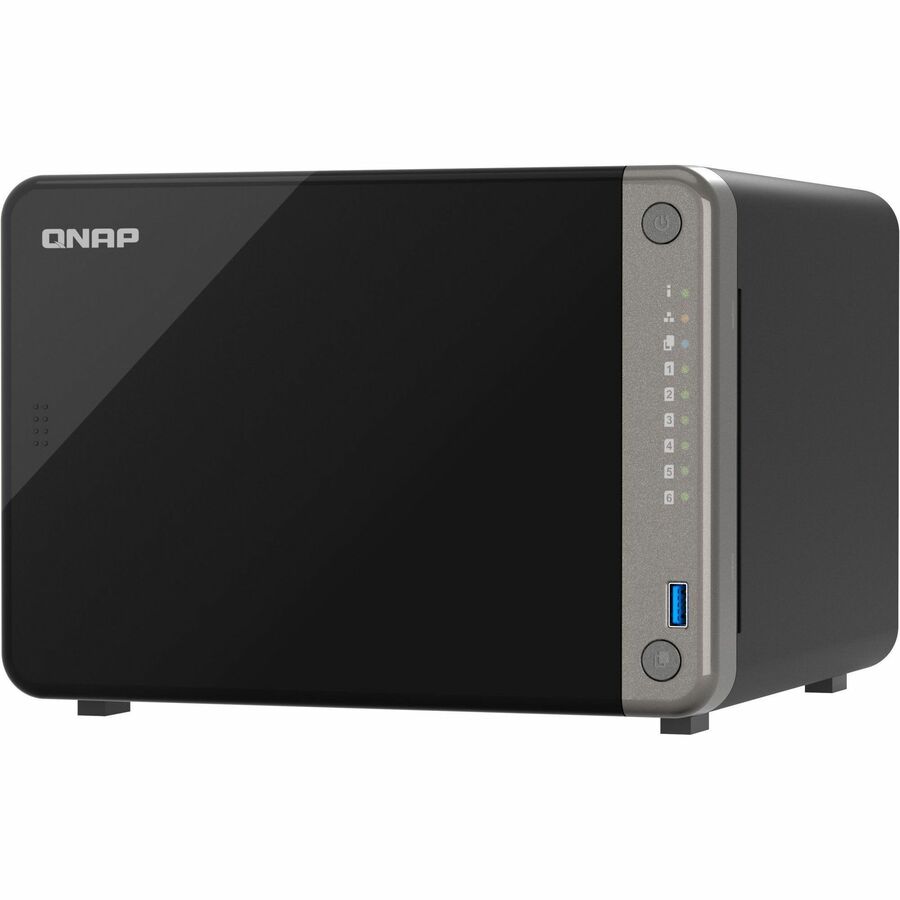

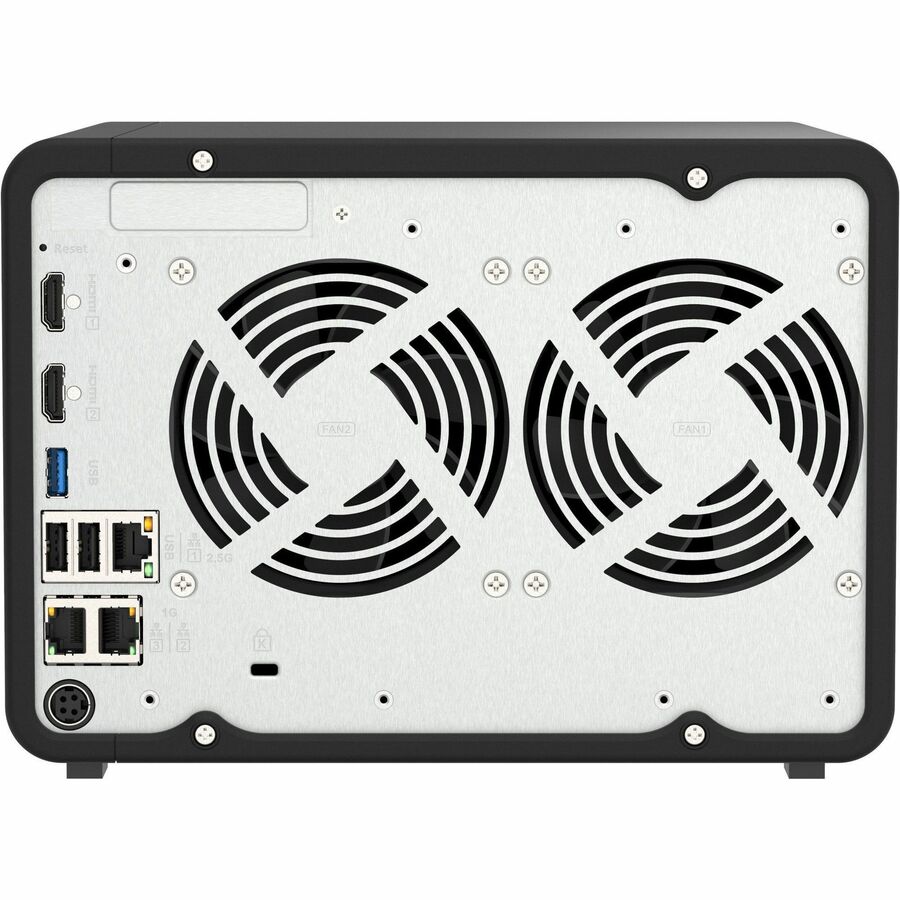

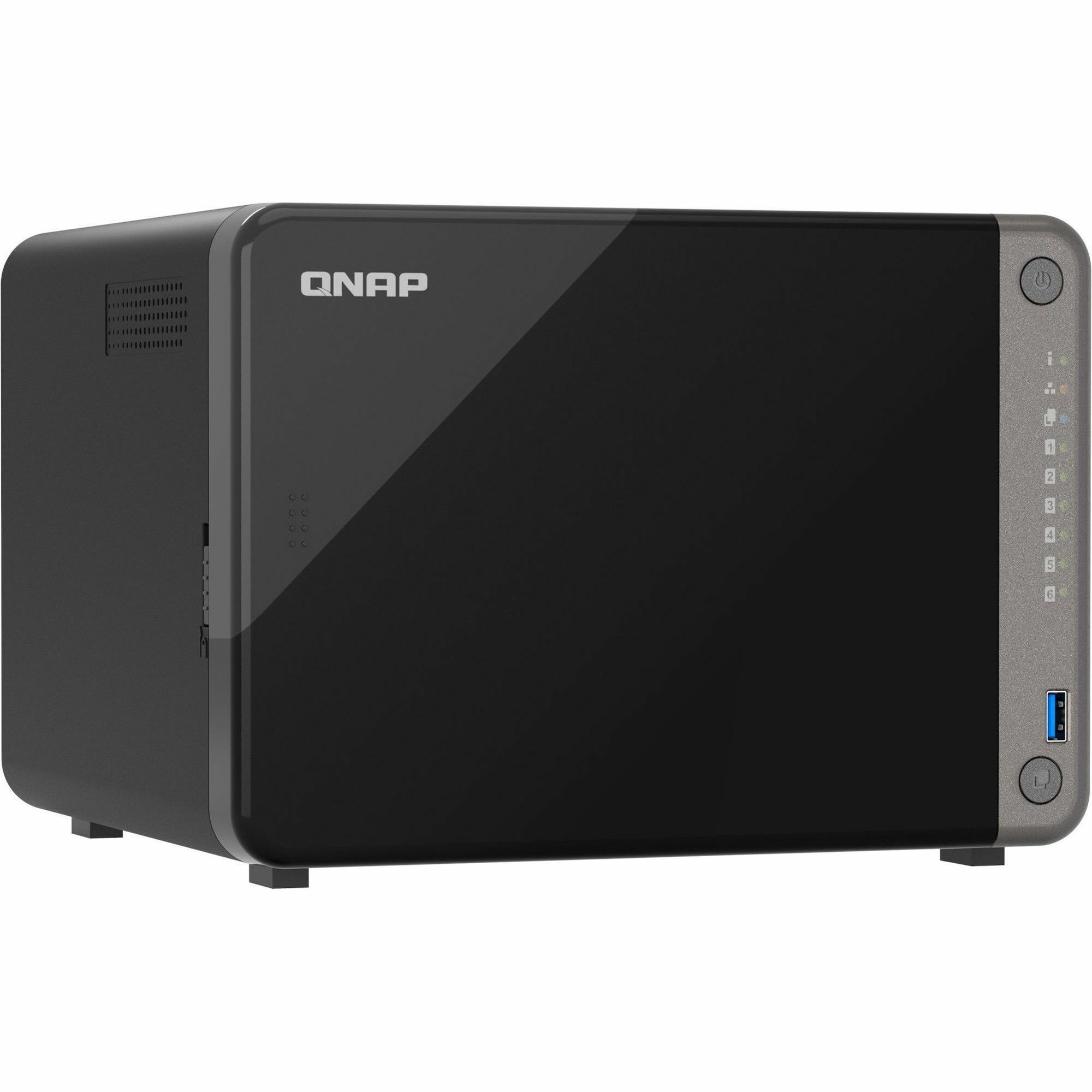

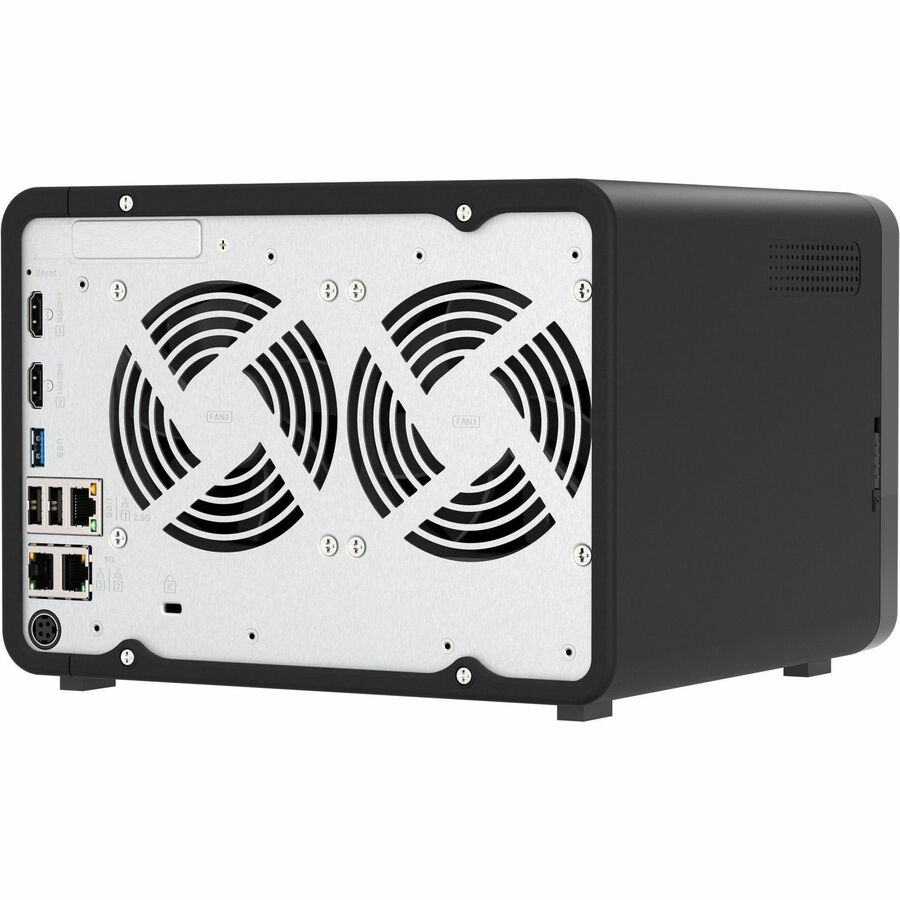

QNAP TS-AI642-8G SAN/NAS Storage System

Overview

Tech Specs

Specifications

Manufacturer	QNAP Systems
Manufacturer Part Number	TS-AI642-8G-US
Manufacturer Website Address	http://www.qnap.com
Brand Name	QNAP
Product Model	TS-AI642-8G
Product Name	TS-AI642-8G SAN/NAS Storage System
Marketing Information	The next-generation TS-AI642 AI NAS is specifically designed for AI-powered video and image recognition applications. Adopting the 64-bit ARM Cortex-A76/-A55 SoC octa-core processor with up to 6 TOPS NPU (Neural network Processing Unit), the TS-AI642 not only tackles image processing and analysis tasks, but also offloads CPU workloads when running AI applications to reduce system operation power consumption. With powerful computing performance, high-capacity storage space and flexible I/O expandability, the TS-AI642 allows enterprises to easily deploy an AI NAS solution for video surveillance, image recognition, and face recognition applications. AI computing performance of 6 TOPS NPU With a built-in NPU (Neural network Processing Unit) processor, the TS-AI642 boosts performance for high-speed face and object recognition. 2.5GbE is a must! 2.5GbE provides higher transmission speeds with existing Cat 5e cables, making file backup/restore and media conversion smoother. PCIe Gen 3 Expandability Install a 2.5/5/10GbE adapter, QM2 card, or USB 3.2 Gen 2 (10Gbps) card to increase application potential. Professional surveillance NAS solution QVR Elite allows you to deploy up to 64 channels (2 channels are included for free). Dual 4K HDMI™ Output Use two screens for a surveillance TV wall monitoring. ARM hardware transcoding Supports ARM NEON technology that accelerates video processing for a better media experience.
Product Type	SAN/NAS Storage System

Storage

Number of Hard Drives Supported	6
Number of Hard Drives Installed	0
Number of Solid State Drive Supported	6
Number of Solid State Drive Installed	0
Flash Memory Capacity	4 GB

Processor & Chipset

Processor Manufacturer	ARM
Processor Type	Cortex A76
Processor Core	Quad-core (4 Core)
Processor Speed	2.20 GHz
2nd Processor Manufacturer	ARM
2nd Processor Type	Cortex A55
2nd Processor Core	Quad-core (4 Core)
2nd Processor Speed	1.80 GHz

Memory

Standard Memory	8 GB
Memory Technology	DDR4 SDRAM

Network & Communication

Ethernet Technology

Gigabit Ethernet
2.5 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	6
Number of 2.5"/3.5" Bays	6
Total Number of Expansion Slots	1
Expansion Slot Type	PCI Express 3.0 x2

Controllers

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, 50, 60, JBOD

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	4
Number of USB 2.0 Ports	2
Number of USB 3.2 Gen 2 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	3

Software

Operating System

QTS 5.1.3

Management & Protocols

Protocols

IPv4
IPv6
DHCP
CIFS/SMB
AFP
NFSv3
FTP
FTPS
SFTP
TFTP
HTTP
HTTPS
Telnet
SSH
iSCSI
SNMP
SSL/TLS
FXP
WEBDAV
LDAP
DDNS
DNS
SNMPv2
SNMPv3
PPTP
L2TP
NFSv4
TLS

Power Description

Maximum Power Supply Wattage

120 W

Physical Characteristics

Height	6.5"
Width	9.3"
Depth	8.9"
Form Factor	Tower
Weight (Approximate)	9.70 lb

Miscellaneous

Package Contents

TS-AI642-8G SAN/NAS Storage System
1 x Ethernet cable
1 x Power cord
18 x Flat head screw (for 3.5" HDD)
18 xFlat head screw (for 2.5" HDD)
AC Adapter

Warranty

Limited Warranty	3 Year
Additional Warranty Information	The TS-AI642 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
