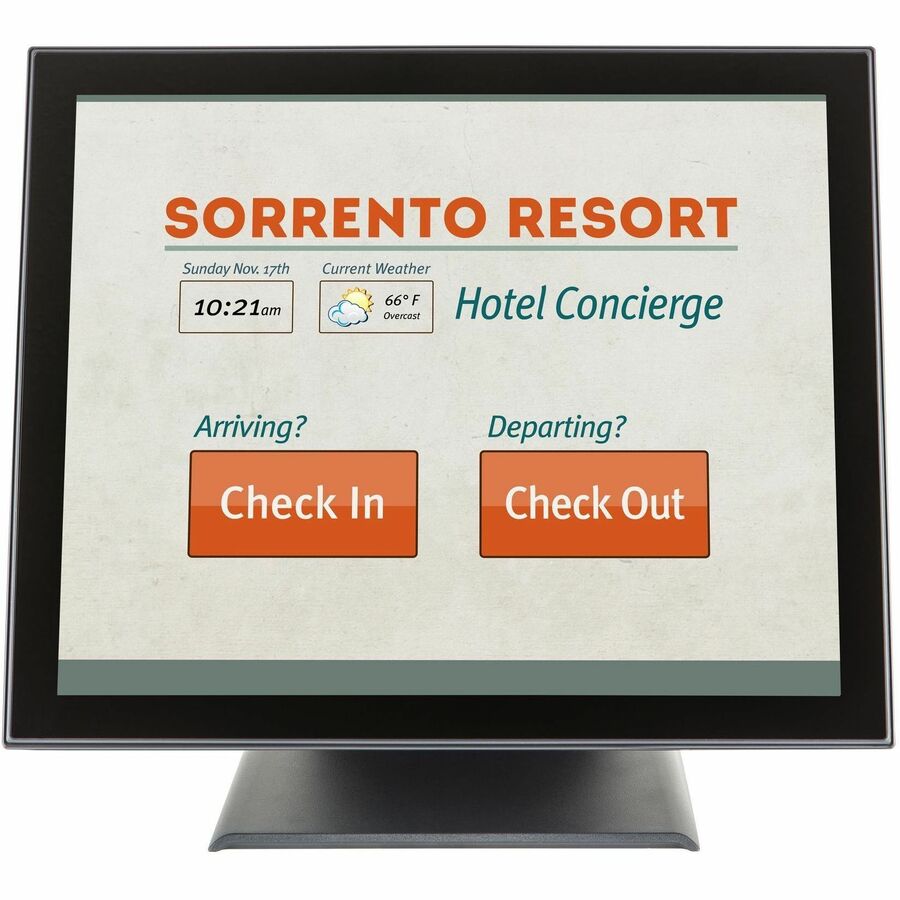

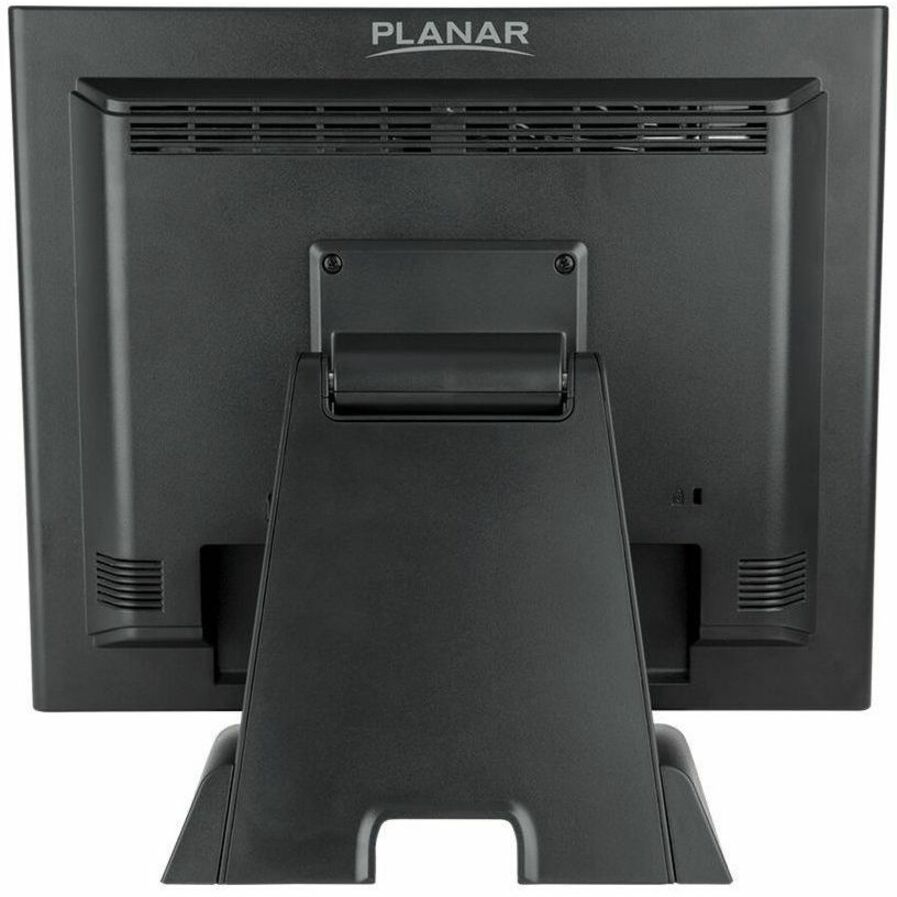

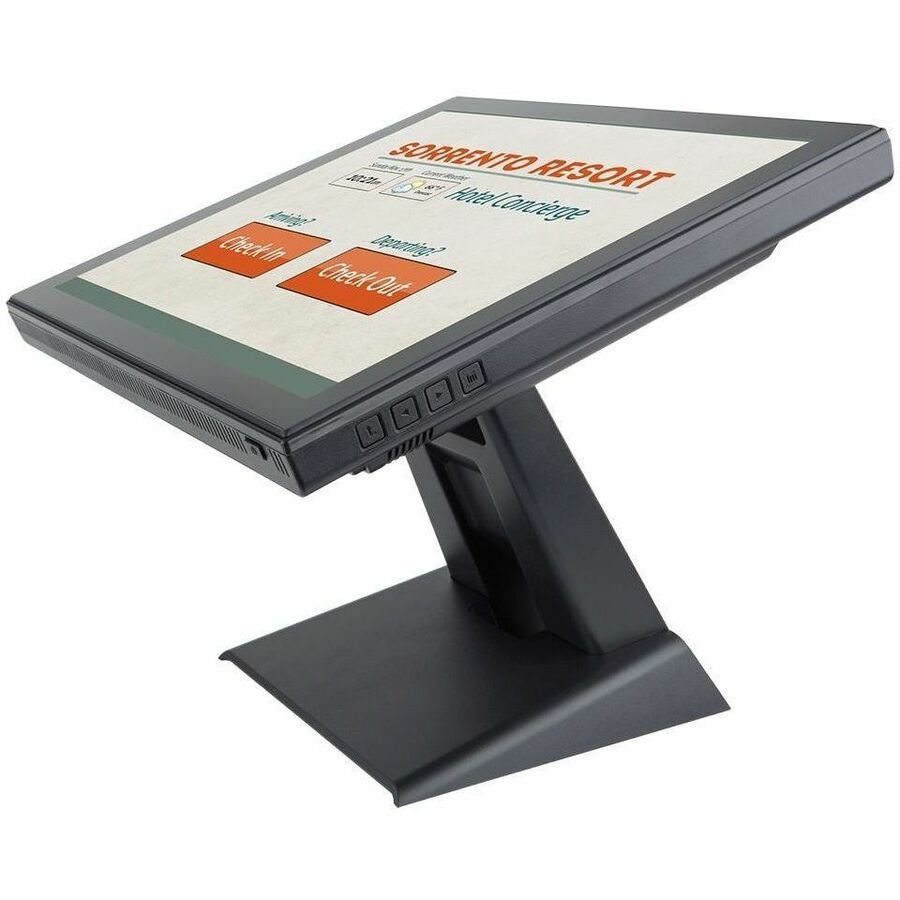

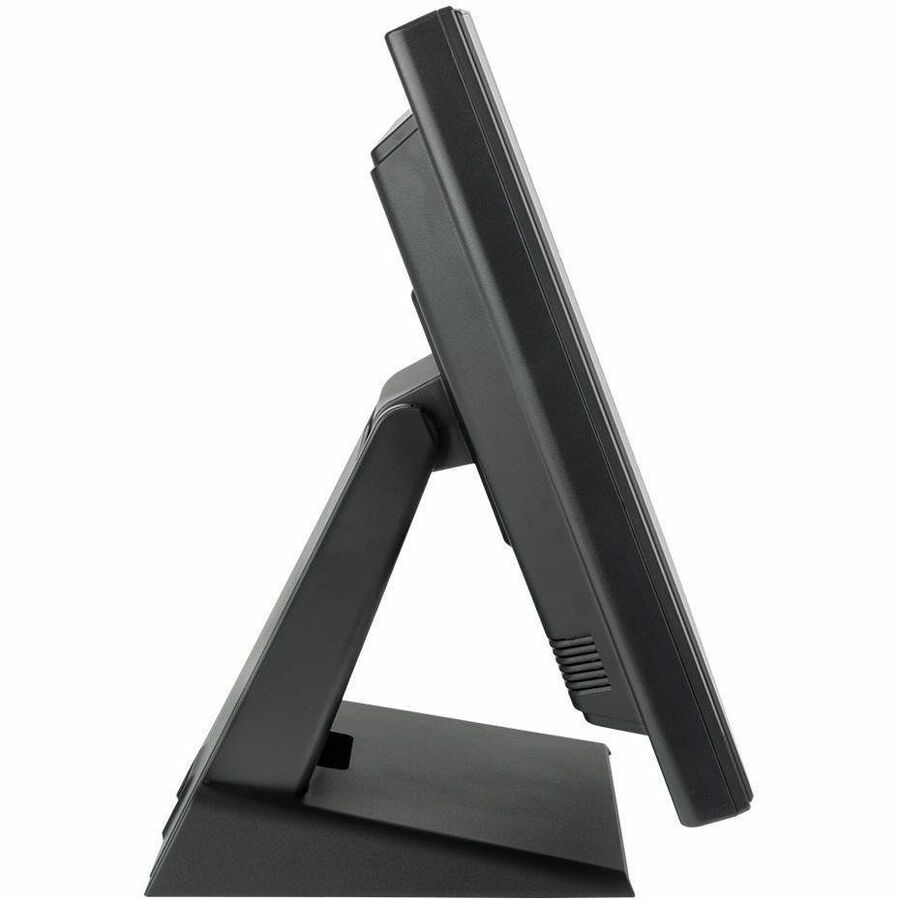

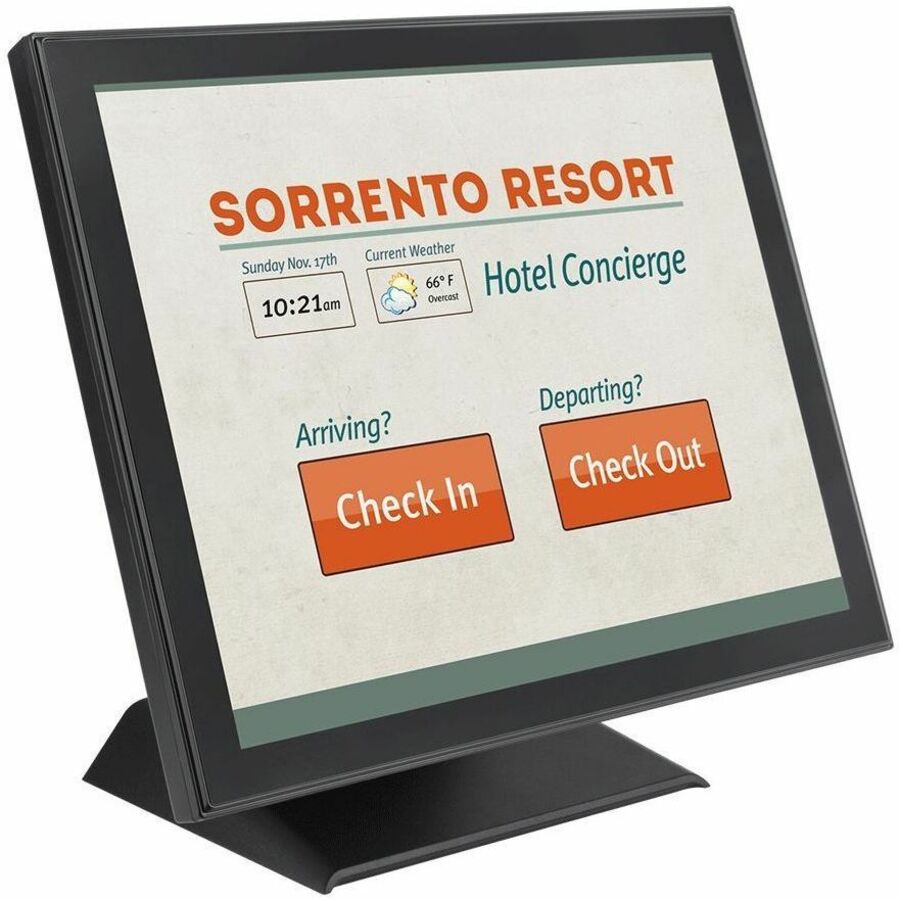

Planar PT1745P 17" Class LED Touchscreen Monitor - 5:4 - 5 ms

Name: Planar PT1745P 17" Class LED Touchscreen Monitor - 5:4 - 5 ms
Brand: PLANAR SMALL FORMAT
SKU: 9LU558
Price: 438.22 USD
Availability: InStock

PLANAR SMALL FORMAT

PCN#

9LU558

MFG#

997-7414-01

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$438.22

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

17" Viewable
Projected Capacitive
10 Point(s) Multi
touch Screen
1280 x 1024
SXGA
16.7 Million Colors
212 Nit
Edge LED Backlight
Speakers
HDMI
USB
VGA
DisplayPort
Black
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 17 lbs.

Planar PT1745P 17" Class LED Touchscreen Monitor - 5:4 - 5 ms

Overview

Tech Specs

Specifications

Manufacturer	Leyard
Manufacturer Part Number	997741401
Manufacturer Website Address	http://www.planar.com
Brand Name	Planar
Product Model	PT1745P
Product Name	PT1745P 17" Touch Screen Point of Sale Monitor
Marketing Information	The Planar® PT1745P 17" touch screen Point of Sale (POS) monitor is perfect for image-conscious retail, hospitality, or healthcare applications. With its ultra-thin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1745P provides the ultimate interactive experience and is optimized with multi-touch interactivity for space-constrained settings. The upgraded monitor now comes with HDMI® and DisplayPort input connectivity.
Product Type	LED Touchscreen Monitor

Technical Information

Screen Size Class	17"
Viewable Screen Size	17"
Screen Mode	SXGA
Pixel Pitch	10.4 mil
Response Time	5 ms
Aspect Ratio	5:4
Horizontal Viewing Angle	170°
Vertical Viewing Angle	160°
Backlight Technology	Edge LED
Features	On-screen Display (OSD) Cable Lock Slot Edge-to-Edge Glass Design
Vertical Frequency	56 Hz to 75 Hz
Stand Adjustments	Tilt
Operation Hours	16 Hours/ 7 Days
Active Display Area (H x V)	13.30" x 10.60"

Video

Maximum Resolution	1280 x 1024
Standard Refresh Rate	75 Hz
Color Supported	16.7 Million Colors
Native Contrast Ratio	1,000:1
Brightness	212 Nit

Audio

Speakers

Yes

Touchscreen Information

Touchscreen Type	Projected Capacitive
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	10

Interfaces/Ports

HDMI	Yes
USB	Yes
VGA	Yes
DisplayPort	Yes

Environmental Conditions

Operating Temperature Range

32°F (0°C) to 104°F (40°C)

Power Description

Operating Power Consumption	11.90 W
Maximum Power Consumption	11.90 W
Frequency	50 Hz 60 Hz

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Color Family	Black
Product Color	Black
Height	12.6"
Width	15.2"
Depth	2.6"
Height with Stand	13.46"
Width with Stand	15.23"
Depth with Stand	7.95"
Weight (Approximate)	8.82 lb
Weight with Stand (Approximate)	12.35 lb

Miscellaneous

Package Contents	PT1745P 17" Touch Screen Point of Sale Monitor Power Cord VGA Cable USB Cable (A to B) Audio-in Cable HDMI Cable User's Guide Landing strip
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
