Perle SRS-1110-GST05 Media Converter

Name: Perle SRS-1110-GST05 Media Converter
Brand: PERLE SYSTEMS
SKU: 5TR567
Price: 696.27 USD
Availability: InStock

PERLE SYSTEMS

PCN#

5TR567

MFG#

05092100

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$696.27

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
2 x ST Ports
DuplexST Port
Multi
mode
850 nm Fiber
Gigabit Ethernet
10/100/1000Base
T, 1000Base
SX
0.55 km
DC
DIN Rail Mountable

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

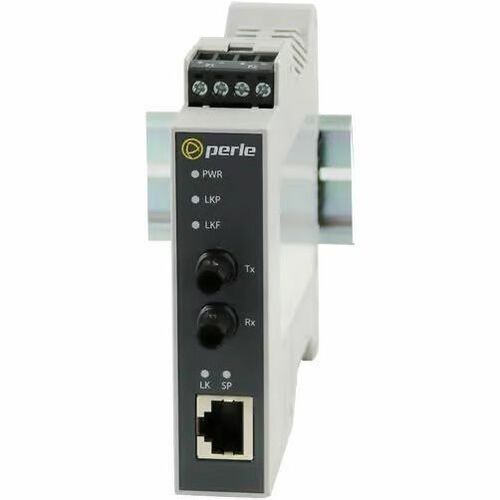

Perle SRS-1110-GST05 Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Perle Systems, Inc
Manufacturer Part Number	05092100
Manufacturer Website Address	http://www.perle.com
Brand Name	Perle
Product Series	SRS-1110-G
Product Model	SRS-1110-GST05
Product Name	SRS-1110-GST05 Media Converter
Marketing Information	SRS-1110-GST05- 10/100/1000 Industrial Media Rate Converter: 10/100/1000BASE-T (RJ-45) [100 m/328 ft] to 1000BASE-SX 850nm multimode (ST) [550 m/1804 ft]. Ruggedized to IEC 61850-3/IEEE 1613, -40F to +167F (-40C to +75C) extended operating temperature support. DIN Rail case, terminal block (Combicon) power connector for external power source .. Perle SRS-1110-G DIN Rail Media Converters transparently connect UTP CAT5/6/7 copper to Gigabit dual fiber in electric utility and power substation environments. With an extended operating temperature range of -40C to +75C and advanced electrical certifications for IEC 61850-3, IEEE1613 and EN 61000-4-16, these fiber to Ethernet converters meet all requirements necessary to operate safely in the harsh electrical environments associated with power utility and substation deployments. The SRS Media Converters are also designed to operate in hazardous industrial locations. With numerous certifications, (Hazloc: ATEX Class 1 Zone 2 / ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D) you are ensured safe and reliable operation in locations where volatile flammable gases, flammable liquid?produced vapors, or combustible liquid?produced vapors are handled, processed, or used.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	3
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of ST Ports	2
ST Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	850 nm
Maximum Distance Supported	0.55 km
Fiber Optic Cable Core/Cladding Specification	62.5/125 µm 50/125 µm 85/125 µm 100/140 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-SX

Power Description

Power Source	DC
Power Consumption	2.16 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Form Factor	DIN Rail Mountable
Height	4.5"
Width	0.9"
Depth	3.9"
Weight (Approximate)	4.23 oz

Miscellaneous

Application/Usage	Power
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

Lifetime
