Perle S-1110P-M2SC05-XT Media Converter

by
PERLE SYSTEMS
PCN#
PF8370
MFG#
05090500

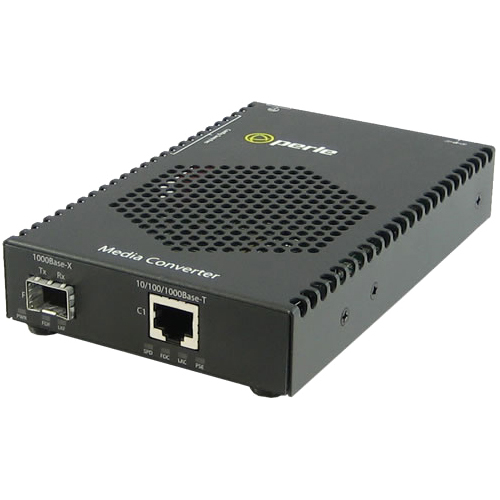

main product photo
fotorama-image
$848.97
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1x PoE (RJ
  • 45) Ports
  • 1 x SC Ports

Show more

Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 2 lbs.
Perle S-1110P-M2SC05-XT Media Converter
Overview
Tech Specs
Specifications

Manufacturer

Perle Systems, Inc

Manufacturer Part Number

05090500

Manufacturer Website Address

http://www.perle.com

Brand Name

Perle

Product Model

S-1110P-M2SC05-XT

Product Name

S-1110P-M2SC05-XT Media Converter

Marketing Information

The S-1110P-XT Industrial Temperature PoE Media Converters address the need for transparently connecting 10/100/1000 Ethernet equipment that operate in extreme temperatures to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices.

The S-1110P-XT PoE Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. Boasting this extended temperature feature along with a rugged steel casing, the S-1110P-XT Media Converter provides an economical path to extend the distance between two industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.

Product Type

Transceiver/Media Converter
Interfaces/Ports

Total Number of Ports

2

DVI

No

USB

No

Parallel Port

No

Digital Audio

No

Digital Audio/Video

No

Management Port

No

Number of PoE (RJ-45) Ports

1

Number of SC Ports

1

SC Port Type

Duplex
Media & Performance

Media Type Supported

  • Twisted Pair
  • Optical Fiber

Fiber Mode Supported

Multi-mode

Maximum Distance Supported

0.55 km

Fiber Optic Cable Core/Cladding Specification

  • 62.5/125 µm
  • 50/125 µm
Network & Communication

Network Technology

  • 10/100/1000Base-T
  • 1000Base-SX
Power Description

Input Voltage

57 V AC
Physical Characteristics

Form Factor

  • Desktop
  • Rail-mountable
  • Rack-mountable
  • Wall Mountable

Height

1"

Width

3.7"

Depth

5.9"

Weight (Approximate)

1 lb
Miscellaneous

Package Contents

  • S-1110P-M2SC05-XT Media Converter
  • Power Strain Relief Strap

Certifications & Standards

  • Immunity: EN55024

IEEE Standards:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3z
  • IEEE 802.3xy

Emissions:

  • FCC Part 15 Class A, EN55022 Class A
  • EN61000-3-2
  • CISPR 22 Class A

Electrical Safety:

  • EN60950
  • UL 60950-1
  • CE

Others:

  • ECCN: 5A991A
  • HTSUS Number: 8517.62.0050

Environmentally Friendly

Yes

Environmental Compliance

  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin

Canada
Warranty

Limited Warranty

Lifetime
