Panduit ISFCH6X04ABL-UG Copper Cable, Industrial

Name: Panduit ISFCH6X04ABL-UG Copper Cable, Industrial
Brand: PANDUIT
SKU: JL3834
Price: 2735.25 USD
Availability: InStock

PANDUIT

PCN#

JL3834

MFG#

ISFCH6X04ABL-UG

$2,735.25

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 60 lbs.

Panduit ISFCH6X04ABL-UG Copper Cable, Industrial

Tech Specs

Specifications

Manufacturer	PANDUIT CORP
Manufacturer Part Number	ISFCH6X04ABL-UG
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Line	IndustrialNet
Product Name	ISFCH6X04ABL-UG Copper Cable, Industrial

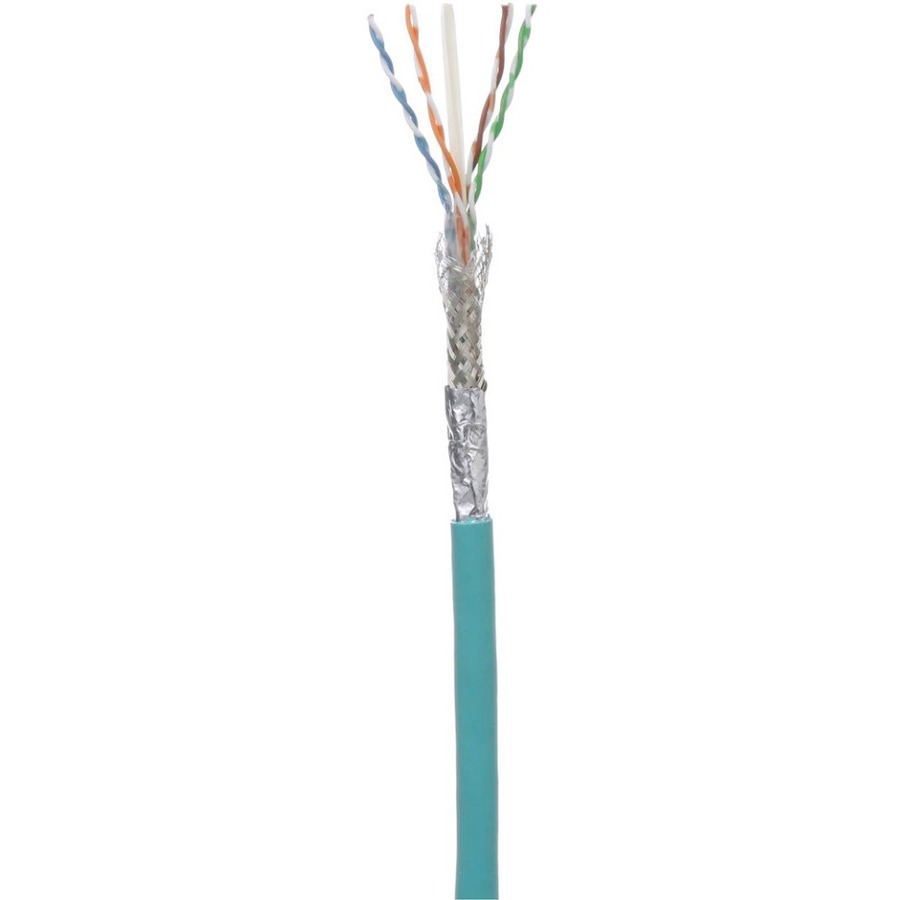

Marketing Information	Category 6A 4-pair SF/UTP copper cable shall meet or exceed the IEC 61156-6, ANSI/TIA-568-C.2 Category 6A and ODVA Ethernet/IP standards up to 80 meters. The stranded copper conductors shall be 24/7 and 26/7 AWG with high density polyethylene (HDPE) insulation. The copper conductors shall be twisted in pairs and wrapped with a foam polypropylene tape to form a core. All pairs shall then be surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The jacket shall be oil, UV, weld splatter, and abrasion resistant for enhanced chemical resistance and mechanical performance. The jacket shall be flame retardant (CMX/CM) for Industrial Ethernet applications. This cable shall support high-flex applications and be rated for panel or on-machine applications where space is shared with 600V high voltage cables.
Packaged Quantity	1000
Product Type	Network Cable

Technical Information

Cable Type	Category 6a
Cable Length	1000 ft
Connector Type on First End	Bare Wire
Connector on First End Details	Bare Wire
Connector Type on Second End	Bare Wire
Connector on Second End Details	Bare Wire
Shielding	Yes
Jacket Type	CM CMX Riser
Device Supported	Network Device Control Panel
American Wire Gauge	24/7 AWG
Data Transfer Rate	10 Gbit/s
Features	Stranded Oil Resistant UV Resistant Abrasion Resistant Weld Splatter Protection PoE Chemical Resistant Flame Retardant PoE+ Sunlight Resistant

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Copper
Insulation Material	High-density Polyethylene (HDPE)
Jacket Material	Thermoplastic Elastomer (TPE)
Weight (Approximate)	40 lb

Miscellaneous

Environmentally Friendly

Yes
