BARCODE SCANNERS,2D WIRELESS IMAGER, BLUETOOTH, BLACK

by
OPTICON INC.
PCN#
3503AT
MFG#
OPI3301I-00
$280.04
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Wireless Connectivity
  • 9.84" Scan Distance
  • 1D, 2D

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.

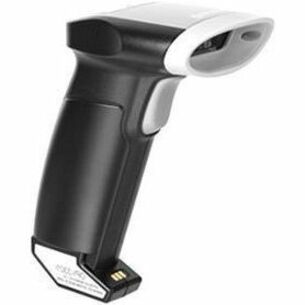

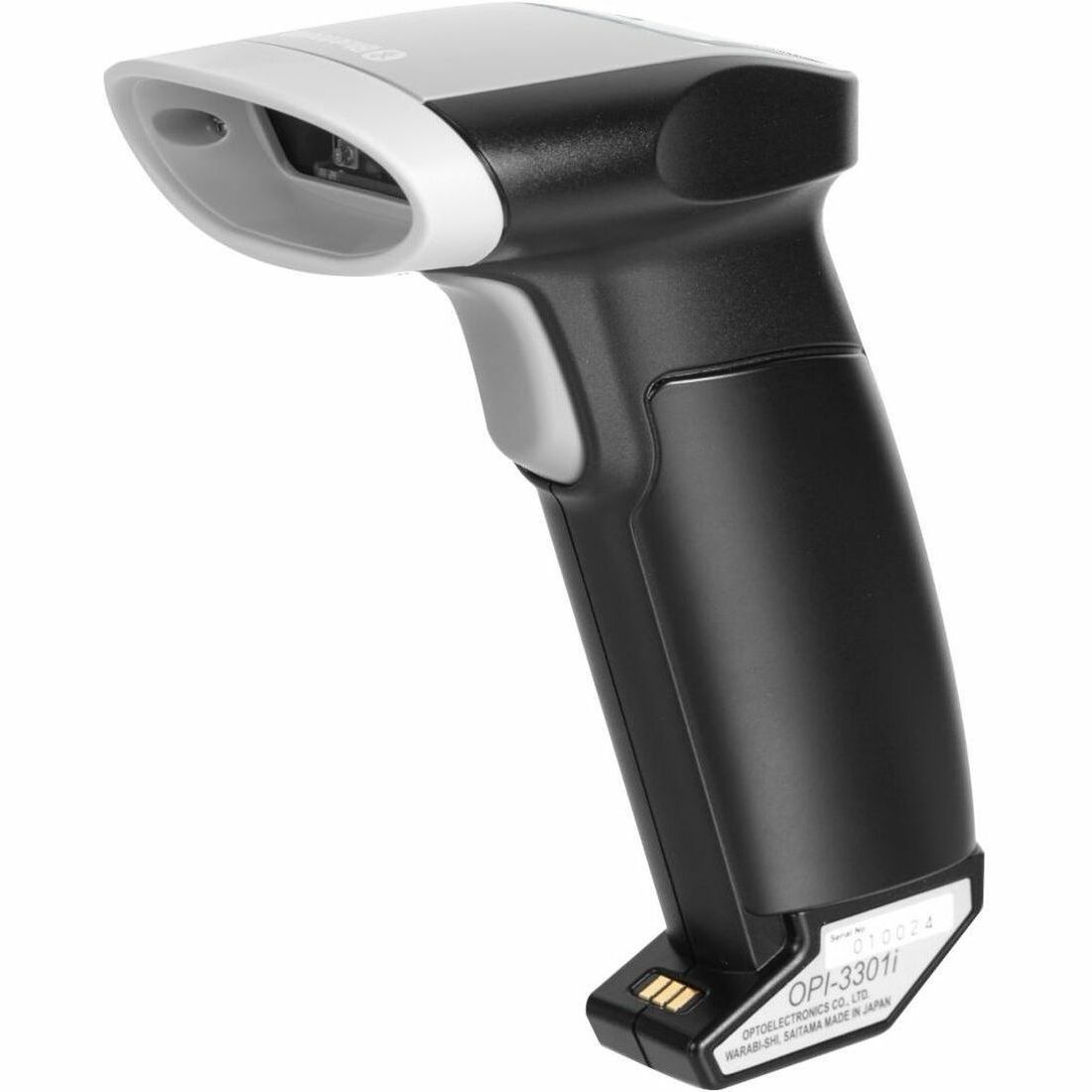

Opticon OPI-3301i 2D CMOS Imager Barcode Scanner
Tech Specs
Specifications

Manufacturer

Opticon Sensors Europe

Manufacturer Part Number

OPI3301I-00

Manufacturer Website Address

http://www.opticon.com

Brand Name

Opticon

Product Model

OPI-3301i

Product Name

OPI-3301i 2D CMOS Imager Barcode Scanner

Marketing Information

The Opticon OPI-3301i features a high speed, 2D Imager barcode scanner and a lightweight, ergonomic design that is perfect for all day, everyday use in a wide variety of industries including retail, healthcare, warehousing and distribution, and transportation and logistics. The cordless, cable-free freedom of Bluetooth® wireless communication offers the ability to roam away from the host device, which improves productivity and scanning convenience. The OPI-3301i is built to survive and thrive due to its IP42 sealing rating against dust and moisture and 5 foot drop specification. The scanner is also Apple MFI certified for the added ease of connecting and communicating with iOS host devices. OPI-3301i product highlights include:

  • Wireless 2D CMOS imager scanner that rapidly scans and decodes 1D and 2D barcodes at 60 Frames Per Second (FPS)
  • Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility
  • Memory: 1MB SDRAM, 1MB Flash ROM
  • Small form factor: 2.20" x 5.32" x 4.45" (WxHxD) and 4.5 ounces including battery
  • Extremely durable: IP42 rating against dust and moisture and survives 5 ft drop to concrete
  • Charges via cradle (CHG-3201-sold separately), Bluetooth dongle available (OPA-3201)
  • Backed by a two year warranty


Product Type

Barcode Scanner
Technical Information

Connectivity Technology

Wireless

Scanning Capability

  • 1D
  • 2D

Barcode Symbology Supported

1D:

  • JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS ), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN -ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

2D:

  • Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

POSTAL CODES:

  • Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET

Light Source

Laser

Image Sensor Type

Imager

Scan Mode

Trigger

Scanning Distance

9.84"

Features

  • Beep
  • Notification LED
  • Vibration
  • Ergonomic Design

Number of Keys

1

Field of View (Horizontal)

40°

Field of View (Vertical)

26°

Reading Angle (Skew)

50°

Reading Angle (Pitch)

50°

Reading Angle (Roll)

180°

Image Formats

  • BMP
  • JPEG

Maximum Ambient Light

100000 lux

Drop Specification

5 ft (1.5 m) drop onto concrete surface

Minimum Print Contrast

20%

Minimum Element Resolution (Code 39)

5 mil

Maximum Element Resolution (Code 39)

0.21"

Image Sensor Resolution

752 x 480

Illumination Type

LED
Memory

Standard Memory

1 MB

Flash Memory

1 MB
Network & Communication

Bluetooth

Yes
Power Description

Input Current

330 mA

Standby Current

15 mA
Battery Information

Battery Chemistry

Lithium Ion (Li-Ion)

Battery Capacity

1100 mAh

Maximum Battery Run Time

3 Hour
Environmental Conditions

Operating Temperature

32°F (0°C) to 122°F (50°C)

Storage Temperature

-14°F (-25.6°C) to 140°F (60°C)

Humidity (Non-condensing)

20% to 85%
Physical Characteristics

Form Factor

Handheld

Color Family

Black

Product Color

Black

Product Material

Acrylonitrile Butadiene Styrene (ABS)

Durability

Dust Resistant

Height

5.3"

Width

2.2"

Depth

4.5"

Weight (Approximate)

4.66 oz
Miscellaneous

Package Contents

  • OPI-3301i 2D CMOS Imager Barcode Scanner
  • Wrist Strap

Compatibility

Apple iPad, iPhone, iPod

Ingress Protection (IP) Rating

IP42

Application/Usage

  • Retail
  • Healthcare
  • Warehouse
  • Distribution
  • Transportation
  • Logistics

Country of Origin

Japan

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

2 Year
