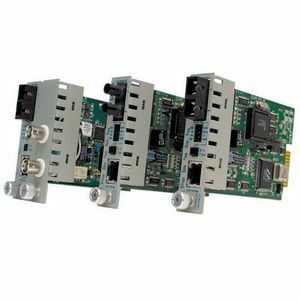

Omnitron Systems iConverter T1/E1 Manageable Media Converter

iConverter T1/E1 Manageable Media Converter is member of the modular iConverter product family. It provides T1/ E1 Copper to Fiber conversion. The RJ45/RJ48 port supports T1 and E1, and a DCE/DTE switch eliminates the need for a crossover cable and facilitates connectivity to devices such as PBXs and CSUs. The iConverter T1/E1 module is hot-swappable. It conforms to ANSI, AT&T, ETSI and ITU specifications and provides LED displays for immediate visual status of each port.

Management is accomplished by using a Network Management Module (NMM) that can be accessed via Telnet using the serial port through Omnitron's NetOutlook SNMP-based management software or any other SNMP software. The management provides real-time port and module information, remote parameter configuration and trap notification. The user can override the T1/E1 module's physical switch settings by using SNMP or Telnet to remotely configure switch-selectable parameters such as Link Propagate, Link Segment, Remote Fault Detection or connection type and distance.

In addition to all standard iConverter SNMP traps such as module insertion and removal, the T1/E1 modules can generate traps on port state changes including link-up and link-down. Trap monitoring of specific events can be selectively enabled or disabled by the network administrator.

• Twisted Pair
• Optical Fiber
• Coaxial

• 19-Module Chassis
• 5-Module Chassis
• 2-Module Chassis
• 1-Module Chassis
