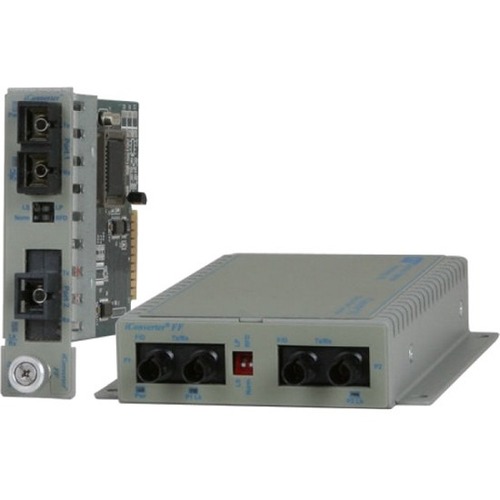

Omnitron Systems Gigabit Fiber-to-Fiber Managed Media Converter

Name: Omnitron Systems Gigabit Fiber-to-Fiber Managed Media Converter
Brand: OMNITRON SYSTEMS
SKU: ZH6720
Price: 909.14 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

ZH6720

MFG#

8642-1-E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$909.14

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

2 x SC Ports
DuplexSC Port
Multi
mode, Single
mode
Gigabit Ethernet
1000Base
X
12 km
Power Supply
Wall Mountable

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

Omnitron Systems Gigabit Fiber-to-Fiber Managed Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	8642-1-E
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	iConverter
Product Series	1000FF
Product Name	Gigabit Fiber-to-Fiber Managed Media Converter
Marketing Information	The iConverter 1000FF managed media converter provides multimode to single-mode and dual fiber to single fiber conversion, and is a cost-effective solution for extending fiber network distances. iConverter 1000FF models feature SC connectors and are available with multimode, single-mode and single-fiber options. The single-mode fiber port supports distances up to 80km, and the multimode fiber port supports distances up to 550m. The 1000FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection, isolation, and reporting. The iConverter 1000FF is available as a compact, unmanaged standalone unit, or as a chassis plug-in module that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input. The standalone 1000FF can be wall-mounted and is DC powered. It can be ordered with an external AC/DC power adapter, or it can be directly powered using a 2-pin terminal connector.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	No
DVI	No
USB	No
Management Port	No
Number of SC Ports	2
SC Port Type	Duplex

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode Single-mode
Fiber Optic Wavelength	850 nm 1310 nm
Maximum Distance Supported	12 km
Fiber Optic Cable Core/Cladding Specification	100/140 µm 62.5/125 µm 50/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X

Power Description

Power Source

Power Supply

Physical Characteristics

Form Factor	Wall Mountable
Height	1"
Width	3.8"
Depth	4.8"
Weight (Approximate)	1 lb

Miscellaneous

Package Contents	Gigabit Fiber-to-Fiber Managed Media Converter Universal AC power supply
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
