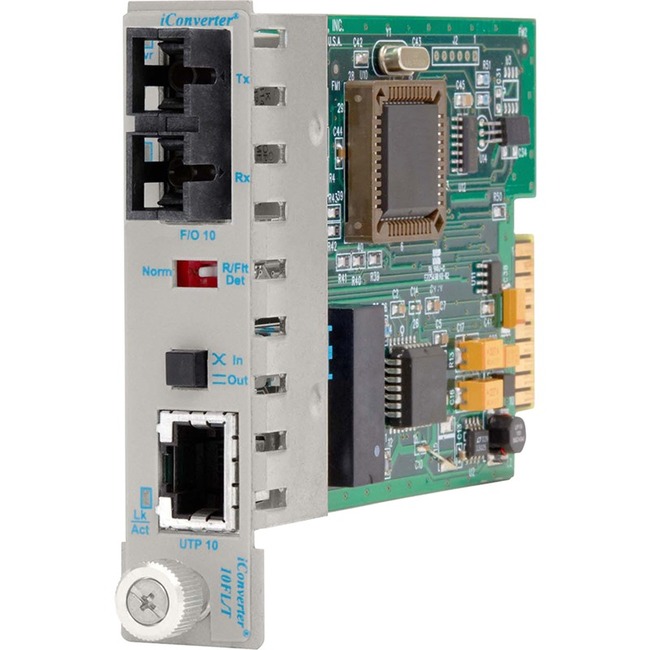

iConverter 10Mbps Ethernet Fiber Media Converter RJ45 SC Multimode 2km Module

Name: iConverter 10Mbps Ethernet Fiber Media Converter RJ45 SC Multimode 2km Module
Brand: OMNITRON SYSTEMS
SKU: 453590
Price: 345.04 USD
Availability: InStock

OMNITRON SYSTEMS

PCN#

453590

MFG#

8302-0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$345.04

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x 10BASE
T; 1 x 10BASE
FL; Internal Module; Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

iConverter 10Mbps Ethernet Fiber Media Converter RJ45 SC Multimode 2km Module

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	8302-0
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	iConverter
Product Series	10FL/T
Product Model	8302-0-x
Product Name	iConverter 10FL/T SC Multimode 2km Plug-In Module
Marketing Information	iConverter 10FL/T Manageable Media Converter provides 10Base-T UTP to 10Base-FL Fiber conversion. It is an In-Band or Out-of-Band SNMP-managed media converter and is suitable for LAN and MAN networks where copper to fiber conversions are required. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations. Management is accomplished by using a Network Management Module (NMM) that can be accessed via Telnet using the serial port through Omnitron's NetOutlook SNMP-based management software or any other SNMP software. The user can override the 10FL/T module's physical switch settings by using SNMP or Telnet to remotely configure switch-selectable parameters such as Link Propagate, Link Segment or Remote Fault Detection.
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Maximum Distance Supported	1.24 Mile

Network & Communication

Ethernet Technology	Ethernet
Network Technology	10Base-FL 10Base-T

Power Description

Power Consumption

1.30 W

Physical Characteristics

Form Factor	Rack-mountable Desktop Internal Wall Mountable
Height	2.8"
Width	0.9"
Depth	4.5"
Weight (Approximate)	8 oz

Miscellaneous

Package Contents	iConverter 10FL/T SC Multimode 2km Plug-In Module User Manual
Additional Information	User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting. MTBF(hrs): 921,659 Controls: UTP X-over LS/LP RFD
Compatibility	iConverter 19-Module Chassis iConverter 5-Module Chassis iConverter 2-Module Chassis iConverter 1-Module Chassis
Certifications & Standards	Compliance: UL CE FCC Class A IEEE 802.3
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
