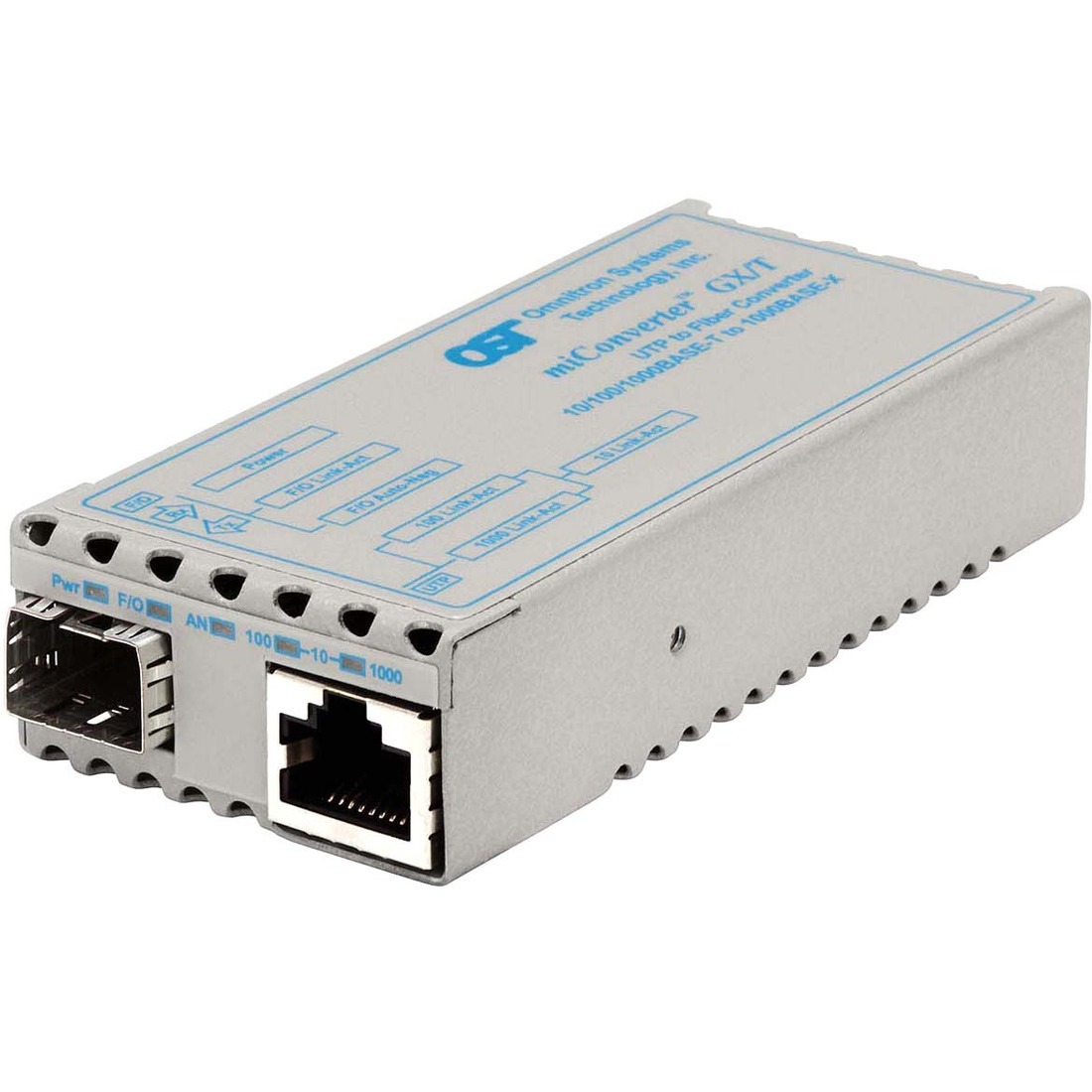

Omnitron Systems miConverter 1000Mbps Gigabit Ethernet Single-Fiber Media Converter RJ45 SFP

Name: Omnitron Systems miConverter 1000Mbps Gigabit Ethernet Single-Fiber Media Converter RJ45 SFP
Brand: OMNITRON SYSTEMS
SKU: 8W6170
Price: 236.32 USD
Availability: OutOfStock

OMNITRON SYSTEMS

PCN#

8W6170

MFG#

1219-0-1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

1 x 1000BASE
T, 1 x 1000BASE
X (SFP), US AC Powered, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

Omnitron Systems miConverter 1000Mbps Gigabit Ethernet Single-Fiber Media Converter RJ45 SFP

Overview

Tech Specs

Specifications

Manufacturer	Omnitron Systems
Manufacturer Part Number	1219-0-1
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	miConverter
Product Series	Gx
Product Model	1219-0-x
Product Name	miConverter GX SFP US AC Powered
Marketing Information	The miConverter Gx is a miniature 1000BASE-T UTP copper to 1000BASE-X fiber Gigabit Ethernet media converter. The miConverter Gx provides cost-effective fiber connectivity from Gigabit switches to diagnostic equipment, desktop and laptop computers. The miConverter Gx is the first Gigabit media converter powered by a USB port (1.0, 1.1, and 2.0). An optional USB Power Adaptor Cable is available, which reduces the module's weight and eliminates the need to tether the miConverter Gx to an electrical outlet. Miniature Gigabit Ethernet media converter Supports 1000BASE-T, 1000BASE-X and the IEEE 802.3 specification Plug-and-Play capability USB power via optional Power Adapter Cable Supports Full/Half-Duplex fiber optic auto-negotiation Multimode, single-mode fiber and SFP options LED indicators for UTP and fiber status Domestic, Universal and Country/Region specific power supply options Wall-mount with optional mounting brackets or included Velcro® strips Small and lightweight, only 5 ounces (without power supply) Cost-effective Lifetime Warranty and free 24/7 Technical Support
Package Type	Retail
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported

Twisted Pair
Optical Fiber

I/O Expansions

Number of Total Expansion Slots	1
Expansion Slot Type	SFP
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-BX10-D 1000Base-LX 1000Base-X 1000Base-LX10 1000Base-BX-D 1000Base-T 1000Base-ZX 1000Base-BX10-U 1000Base-BX 1000Base-LX/SX 1000Base-LX/LH 1000Base-SX/LX 1000Base-BX-U 1000Base-SX

Power Description

Power Source	AC
Input Voltage	120 V AC

Physical Characteristics

Form Factor	Rack-mountable Desktop External Wall Mountable
Height	0.8"
Width	1.7"
Depth	4.1"
Weight (Approximate)	5 oz

Miscellaneous

Package Contents	miConverter GX SFP US AC Powered US Power Supply - 120Volt / 60Hz VELCRO Strip User Manual
Additional Information	Input Voltage: 5-12VDC via 2.5mm barrel (0.5A @ 5VDC) 100-120VAC/60Hz (0.02A @ 120VAC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL, CE, FCC Class A IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

Lifetime
