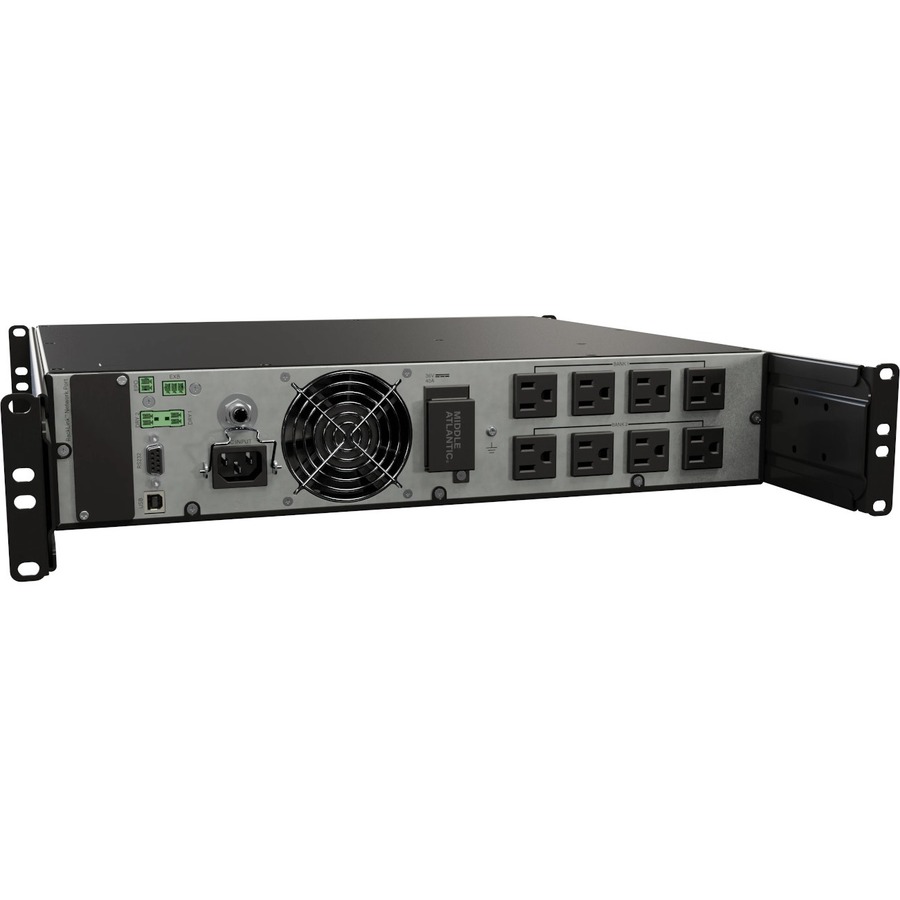

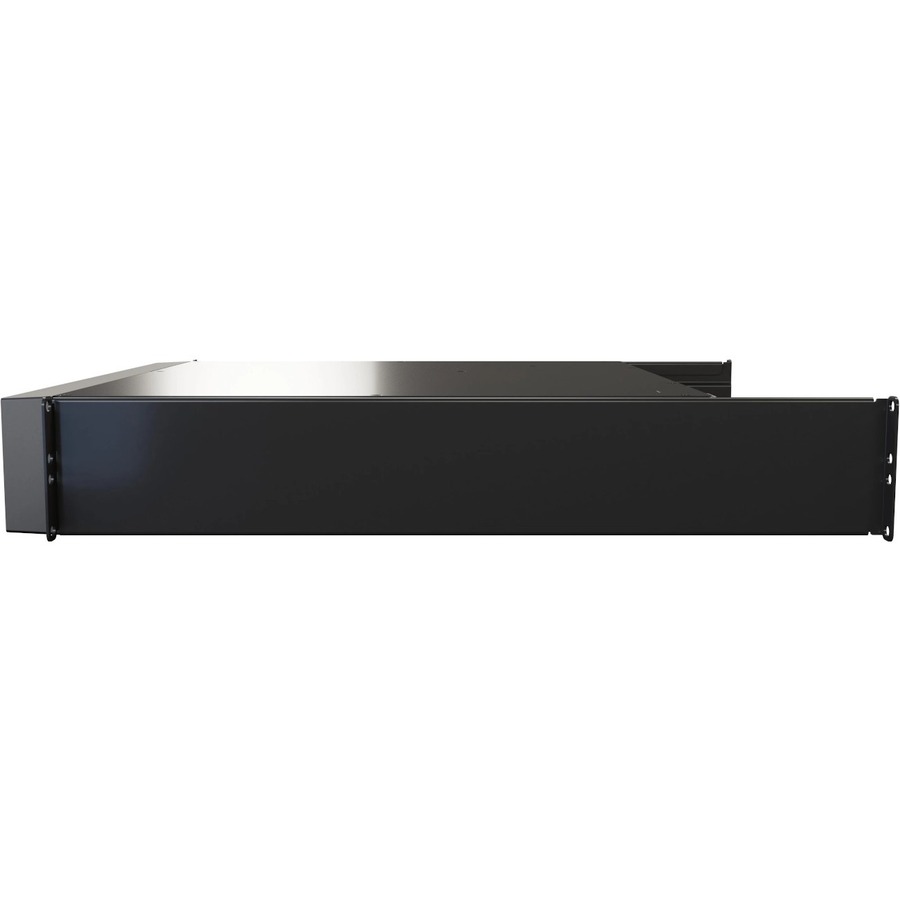

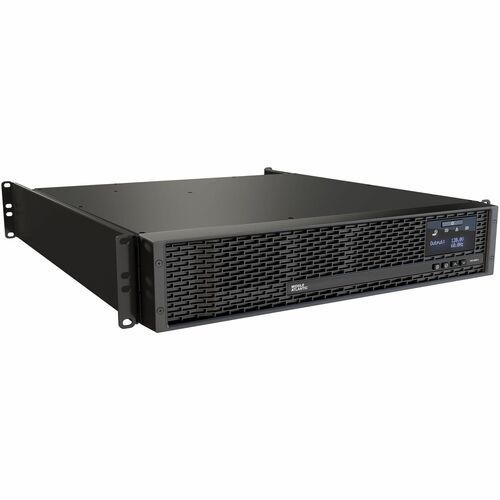

Middle Atlantic 2RU NEXSYS Series 15Amp UPS Backup Power System with Bank Outlet Control - 1500VA - Black

Name: Middle Atlantic 2RU NEXSYS Series 15Amp UPS Backup Power System with Bank Outlet Control - 1500VA - Black
Brand: MIDDLE ATLANTIC
SKU: JF6084
Price: 2160 USD
Availability: InStock

MIDDLE ATLANTIC

PCN#

JF6084

MFG#

UPX-1500R-2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,160.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

2U Rack
mountable
AVR
120 V AC Input
110 V AC, 120 V AC, 127 V AC Output
Pure Sine Wave
Serial Port
LCD Display
8 x NEMA 5
15R

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information2 Years Battery

Shipping Weight: 52 lbs.

Middle Atlantic NEXSYS Series 2RU 15Amp UPS Backup Power System with Bank Outlet Control - 1500VA

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	UPX-1500R-2
Manufacturer Website Address	http://www.legrand.us
Brand Name	Middle Atlantic
Product Line	NEXSYS
Product Name	NEXSYS 1500VA Rack-mountable UPS
Marketing Information	NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect. 1500VA & 15 Amp. 8 Outlets with Bank Control. (2) outlet banks with 4 outlets each. An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rack rail. The battery is already connected so just plug it in. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended. Set reminders or notifications for things like battery replacement, etc. via email or on the UPS. The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6ft (1.8m) IEC power cord. Easily locate the Serial Number, replacement Battery Part Number, Battery Replacement Date, and UPS Firmware Version via the front LCD screen. You can even see the battery installation date. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards. Hot swappable battery from the front access panel for easy service without disrupting the system. The NEXSYS UPS is RackLink compatible (RackLink card sold separately) and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices. Included RS232 port for control. (2) dry contact ports for alerts. 1 contact is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold. 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds. Energy Star Certified.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R
Application/Usage	Audio/Video Equipment

Power Description

Load Capacity (VA)	1500 VA
Load Capacity (Watt)	1350 W
Input Voltage	120 V AC
Output Voltage	110 V AC 120 V AC 127 V AC
Waveform Type	Pure Sine Wave

Display & Graphics

Display

LCD

Interfaces/Ports

Serial Port

Yes

Battery Information

DC System Voltage	36 V DC
Hot Swappable	Yes

Environmental Conditions

Maximum Operating Temperature

104°F (40°C)

Physical Characteristics

Color Family	Black
Product Color	Black
Height	3.5"
Width	19"
Depth	16"
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	44.09 lb

Miscellaneous

Package Contents	NEXSYS 1500VA Rack-mountable UPS 6' (1.8m) IEC Power Cord Network Card
Energy Star	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	2 Years Battery
