Middle Atlantic NEXSYS Compact Power Series Surge Protection - PDX-215C-SP

Name: Middle Atlantic NEXSYS Compact Power Series Surge Protection - PDX-215C-SP
Brand: MIDDLE ATLANTIC
SKU: HB5133
Price: 378 USD
Availability: InStock

MIDDLE ATLANTIC

PCN#

HB5133

MFG#

PDX-215C-SP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$378.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

NEMA 5
15P
2 x NEMA 5
15R
120 V AC
0U
Rack
mountable, Wall
mountable
Rack

Product Condition: New and Factory Fresh

Limited Warranty12 Year

Shipping Weight: 1 lbs.

Middle Atlantic NEXSYS Series Compact Power Distribution Unit - 15 Amp, 2 Outlet

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	PDX215CSP
Manufacturer Website Address	http://www.legrand.us
Brand Name	Middle Atlantic
Product Line	NEXSYS
Product Model	PDX-215C-SP
Product Name	NEXSYS Series Compact Power Distribution Unit - 15 Amp, 2 Outlet

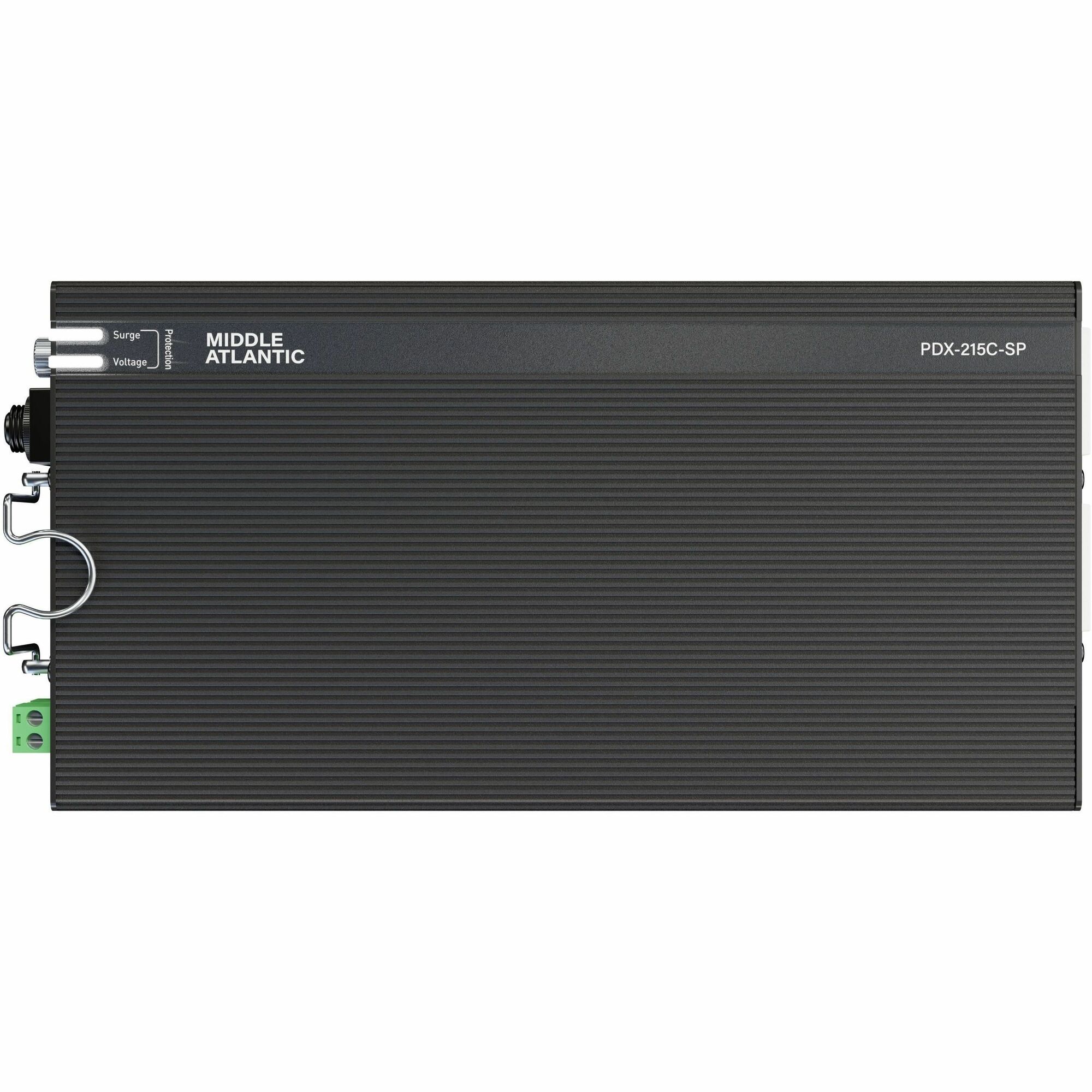

Marketing Information	The Middle Atlantic PDX-215C-SP is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (2) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes Series stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	2 x NEMA 5-15R
Protection Type	Surge Protection
Features	Compact

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Input Current	15 A

Physical Characteristics

Mount Type	Rack-mountable Wall-mountable
Form Factor	Rack
Rack Height	0U
Height	1.7"
Width	4.6"
Depth	9"

Miscellaneous

Package Contents	NEXSYS Compact Power Series Surge Protection - PDX-215C-SP Clamp L-brackets Standard 2' Cord
Country of Origin	Malaysia

Warranty

Limited Warranty

12 Year
