6IN FURNITURE FEED-BRONZE

Name: 6IN FURNITURE FEED-BRONZE
Brand: MIDDLE ATLANTIC
SKU: 7797BD
Price: 836.5 USD
Availability: InStock

MIDDLE ATLANTIC

PCN#

7797BD

MFG#

6ATCFFBZ

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$836.50

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Poke Thru Device
Bronze Powder Coat
Aluminum

Product Condition: New and Factory Fresh

Shipping Weight: 9 lbs.

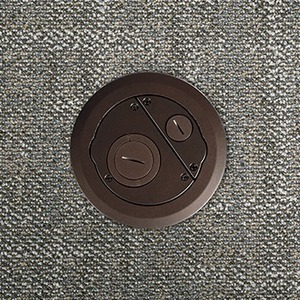

Middle Atlantic Evolution 6ATCFF Poke Thru Device

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	6ATCFFBZ
Manufacturer Website Address	http://www.legrand.us
Brand Name	Middle Atlantic
Product Line	Evolution
Product Series	6AT
Product Name	Evolution 6ATCFF Poke Thru Device
Marketing Information	For carpet, tile, wood and laminate concrete floor coverings. For use in 6" (152mm) diameter opening. Devices are recessed 3 1/4" (83mm) below floor surface. Die-cast aluminum cover assembly provides one (1) 3/4" trade size screw plug opening and one (1) concentric 2"-1 1/4" trade size screw plug opening and is available in the following powder coated finishes: (BK) black, (GY) gray, (NK) nickel, (BS) brass, and (BZ) bronze. INCLUDED: For Side Compartments: No Device Plates are provided. For Center Compartment: No Device Plates are provided. For Bottom Feed Compartment: One (1) 5PTHA 1/2-Gang Pass-Through Housing Assembly, One (1) 5FFHA 1 1/2-Gang Pass-Through Housing Assembly, One (1) 575CHA 1/2-Gang 3/4" Conduit Housing Assembly (also includes junction box attached to the 3/4" conduit). NOTE: UL Fire Classified for up to 2-hour rated floors. Aluminium cover assemblies: The Evolution Series poke-thru design includes all metal die-cast aluminium cover assemblies, with two unique spring-loaded slide egress doors. Available in surface style and flush style in standard finishes of brass, gray, black, nickel, bronze, and aluminium offering a wider range of aesthetic options. Added furniture feed capacity: The 6ATCFF Series Poke-Thru Device offers the largest dual service furniture feed capability on the market. TopGuard Protection: All Evolution Series Poke-Thru Devices like every Wiremold/Legrand Poke-Thru Device meets and exceeds UL scrub water exclusion requirements for tile, carpet, and wood covered floors. Meets ADA Accessibility Guidelines: Wide trim flange is designed to meet the ADA Accessibility Guidelines as it pertains to ADA Standard 4.5 which addresses changes in floor and ground surface levels. The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio. Suitable for use in air handling spaces: In accordance with Sec 300-22(C) of the National Electrical Code. "Step-on-it" installation: Quick and easy installation without the need for additional fasteners or a second installer. UL Listed and UL Fire Classified to U.S. and Canadian safety standards: UL Fire rated for up to 2-hour rated floors maintains the fire classification of the floor.
Product Type	Cable Organizer

Product Information

Cable Manager Type

Poke Thru Device

Physical Characteristics

Product Color	Bronze Powder Coat
Product Material	Aluminum

Miscellaneous

Package Contents	1 x 3/4" Trade Size Screw Plug Opening 1 x Concentric 2"-1 1/4" Trade Size Screw Plug Opening 1 x 5PTHA 1/2-Gang Pass-Through Housing Assembly 1 x 5FFHA 1 1/2-Gang Pass-Through Housing Assembly 1 x 575CHA 1/2-Gang 3/4" Conduit Housing Assembly Junction Box Attached to the 3/4" Conduit
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
