6IN FURNITURE FEED ASSY BLACK

Name: 6IN FURNITURE FEED ASSY BLACK
Brand: MIDDLE ATLANTIC
SKU: 7796BD
Price: 836.5 USD
Availability: InStock

MIDDLE ATLANTIC

PCN#

7796BD

MFG#

6ATCFFBK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$836.50

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

7.8" Width x 16.3" Depth x 7.8" Height
Black
Die
cast Aluminum

Product Condition: New and Factory Fresh

Shipping Weight: 11 lbs.

Wiremold Evolution Recessed Furniture Feed Assembly with Surface Style Cover in Black

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	6ATCFFBK
Manufacturer Website Address	http://www.legrand.us
Brand Name	Wiremold
Product Line	Evolution
Product Name	Evolution Recessed Furniture Feed Assembly with Surface Style Cover in Black

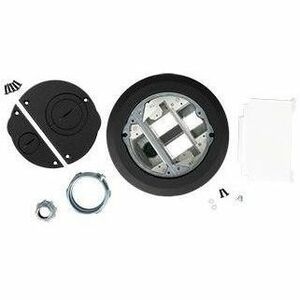

Marketing Information	For carpet, tile, wood and laminate concrete floor coverings. For use in 6in (152mm) diameter opening. Devices are recessed 3 1/4in (83mm) below floor surface. Die-cast aluminum cover assembly provides one (1) 3/4in trade size screw plug opening and one (1) concentric 2in-1 1/4in trade size screw plug opening and is available in the following powder coated finishes: (BK) black, (GY) gray, (NK) nickel, (BS) brass, and (BZ) bronze. INCLUDED: For Side Compartments: No Device Plates are provided. For Center Compartment: No Device Plates are provided. For Bottom Feed Compartment: One (1) 5PTHA 1/2-Gang Pass-Through Housing Assembly, One (1) 5FFHA 1 1/2-Gang Pass-Through Housing Assembly, One (1) 575CHA 1/2-Gang 3/4in Conduit Housing Assembly (also includes junction box attached to the 3/4in conduit). NOTE: UL Fire Classified for up to 2-hour rated floors. The Evolution Series poke-thru design includes all metal die-cast aluminum cover assemblies, with two unique spring-loaded slide egress doors. Available in surface style and flush style in standard finishes of brass, gray, black, nickel, bronze, and aluminum offering a wider range of aesthetic options. The 6ATCFF Series Poke-Thru Device offers the largest dual service furniture feed capability on the market. All Evolution Series Poke-Thru Devices like every Wiremold/Legrand Poke-Thru Device meets and exceeds UL scrub water exclusion requirements for tile, carpet, and wood covered floors. Wide trim flange is designed to meet the ADA Accessibility Guidelines as it pertains to ADA Standard 4.5 which addresses changes in floor and ground surface levels. The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio. In accordance with Sec 300-22(C) of the National Electrical Code. Quick and easy installation without the need for additional fasteners or a second installer. UL Listed and UL Fire Classified to U.S. and Canadian safety standards. UL Fire rated for up to 2-hour rated floors maintains the fire classification of the floor.
Product Type	Furniture Feed Assembly

Physical Characteristics

Color Family	Black
Product Color	Black
Finishing	Powder Coat
Product Material	Die-cast Aluminum
Material Details	Die-cast aluminum cover assembly
Height	7.8"
Width	7.8"
Depth	16.3"

Miscellaneous

Application/Usage

Furniture
Carpet
Tile
Wood
Concrete Floor
