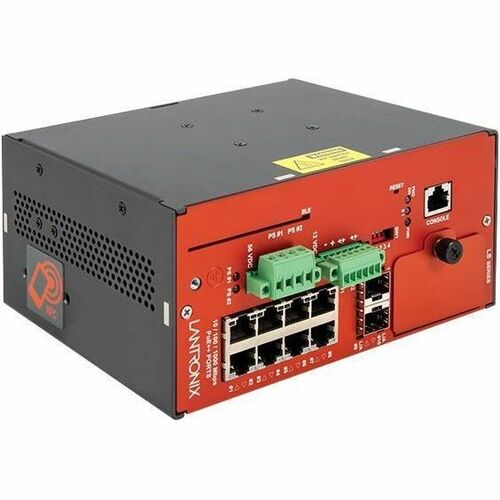

Lantronix LS LSS2200-8P Ethernet Switch

Name: Lantronix LS LSS2200-8P Ethernet Switch
Brand: LANTRONIX
SKU: 08RF39
Price: 1411.8 USD
Availability: InStock

LANTRONIX

PCN#

08RF39

MFG#

LSS2200-8P

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,411.80

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
T, 1000Base
X
TAA Compliant
2 Layer Supported
750 W Power Consumption
720 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
Wall Mountable, DIN Rail Mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 3 lbs.

Lantronix LS LSS2200-8P Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	LSS22008P
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	LS
Product Model	LSS2200-8P
Product Name	LS LSS2200-8P Ethernet Switch
Marketing Information	The LS Series offers a small footprint and hardened temperature rating plus cloud-based management making this new PoE++ switch ideal for IoT and IP devices throughout smart buildings or in rugged environments. The LSS2200-8P is a managed Layer 2+ Gigabit Ethernet switch offering (8) 1GBase-T interfaces with full IEEE 802.3bt 90W support, (2) 10/5/2.5/1GBase-T multi-gigabit SFP+ slots, (2) programmable Digital Input/Outputs with 12V power output, and (1) RJ-45 console port. The switch accepts simplified transfer of pre-configurations through the LSS2200-8P Mobile App using Near Field Communications (NFC) prior to power up or dispatch, saving valuable time at the installation site. The device comes pre-enabled with easy-to-use LantronixConsoleFlow™ device management for the Cloud, which allows users to find specific switches, check device properties and scan through telemetry status data in real time from anywhere. This switch offers 720W total PoE budget for powering LED lighting, high-powered security and surveillance cameras and other IP devices. Its small footprint and hardened temperature rating make it ideal for powering IP devices distributed throughout a building. The LSS2200-8P also incorporates Bluetooth Low Energy (BLE) for wireless CLI without requiring physical access to troubleshoot, configure, or reset the device. Cloud management and APIs for integrating with building management systems make the switch very easy to deploy and manage and simplifies configuration, installation, and troubleshooting of devices to help lower construction and maintenance costs. The LSS2200-8P helps commercial building owners and managers improve building efficiency and enhance the tenant and guest experience within buildings.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	8
Uplink Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x Gigabit Ethernet PoE++ 2 x Gigabit Ethernet Expansion Slot 1 x RJ-45

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X

I/O Expansions

Expansion Slot Type	SFP+
Number of SFP+ Slots	2

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.1Q IEEE 802.3x IEEE 802.1ab IEEE 802.1w

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	720 W
Input Voltage	56 V DC
Power Source	DC
Power Consumption	750 W

Physical Characteristics

Product Color	Gray Orange
Form Factor	Wall Mountable DIN Rail Mountable
Height	7.1"
Width	3.3"
Depth	5.1"
Weight (Approximate)	2.87 lb

Miscellaneous

Package Contents	LS LSS2200-8P Ethernet Switch DIN Rail Wall Mount Bracket Kit
Application/Usage	Enterprise Network Surveillance
TAA Compliant	Yes

Warranty

Limited Warranty

5 Year
