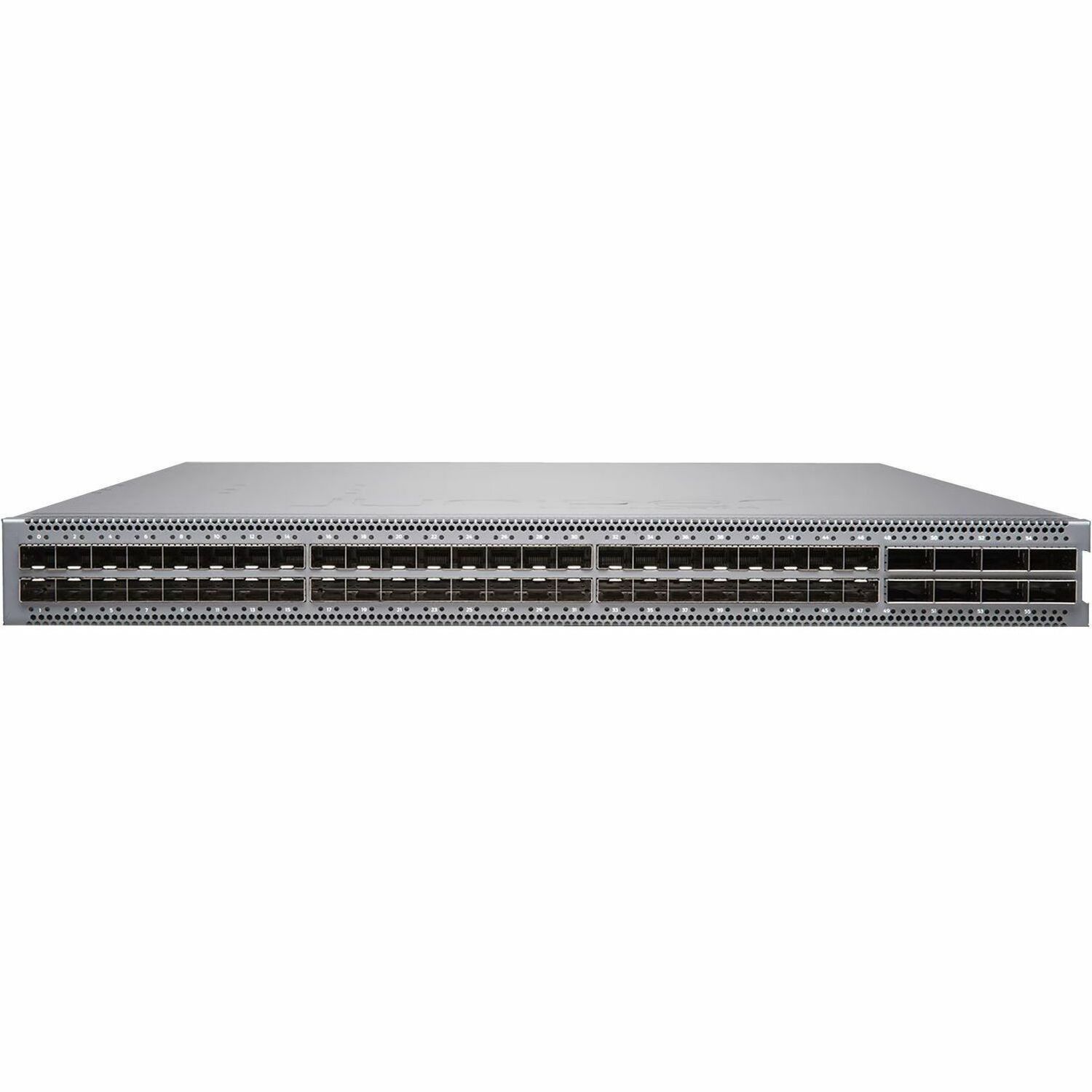

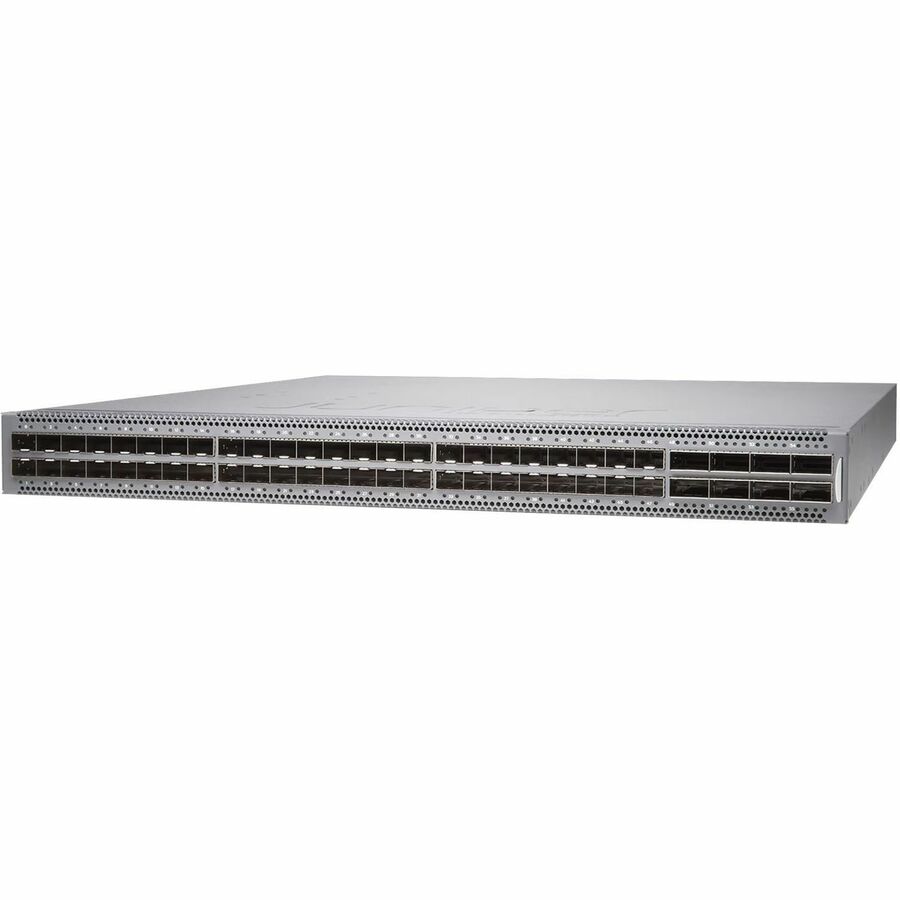

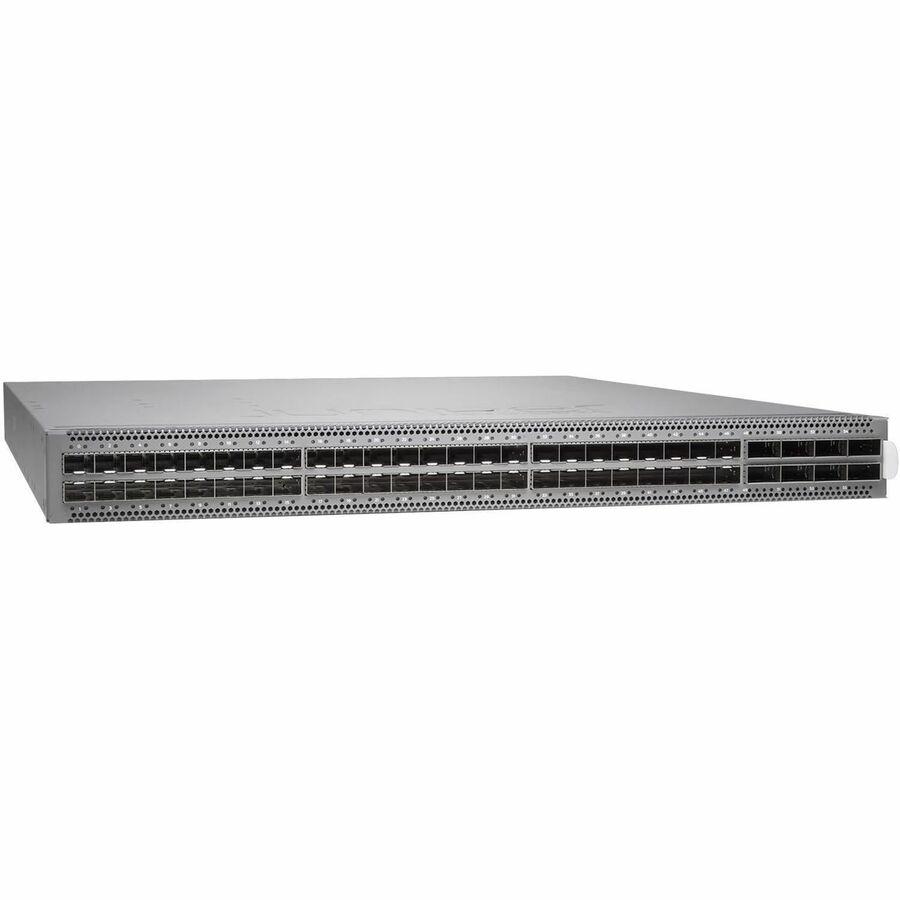

Juniper QFX5120-48Y Ethernet Switch

Name: Juniper QFX5120-48Y Ethernet Switch
Brand: JUNIPER
SKU: 04YL55
Price: 44562.49 USD
Availability: InStock

JUNIPER

PCN#

04YL55

MFG#

B1-Q5120-48TI-A-A5

$44,562.49

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 1 lbs.

Juniper QFX5120-48Y Ethernet Switch

Tech Specs

Specifications

Manufacturer	Juniper Networks, Inc
Manufacturer Part Number	B1Q512048TIAA5
Manufacturer Website Address	http://www.juniper.net
Brand Name	Juniper
Product Series	QFX
Product Model	QFX5120-48Y
Product Name	QFX5120-48Y Ethernet Switch
Marketing Information	The QFX5120 delivers low-latency, native 25GbE, rich Layer 2 and Layer 3 features, VXLAN overlay support, and 100GbEoverlay support, and 100GbE uplinks, making it the ideal switch for access and top-of-rack deployments. Featuring Layer 3 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that demand support for overlay/ underlay network architectures. The high-density 10GbE, 25GbE, 40GbE, and 100GbE ports also make the QFX5120 ideally suited for deployment as leaf-and-spine and leaf topologies.
Product Type	Ethernet Switch

Interfaces/Ports

Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	48 x 25 Gigabit Ethernet Expansion Slot 8 x 100 Gigabit Ethernet Expansion Slot

Media & Performance

I/O Expansions

Expansion Slot Type	QSFP28 SFP+
Number of SFP+ Slots	48

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.1D IEEE 802.1w IEEE 802.1s IEEE 802.1Q IEEE 802.3ad IEEE 802.1p IEEE 802.1Qbb IEEE 802.1ad IEEE 802.1ab IEEE 802.3x IEEE 802.1Qaz

Management & Protocols

Manageable

Yes

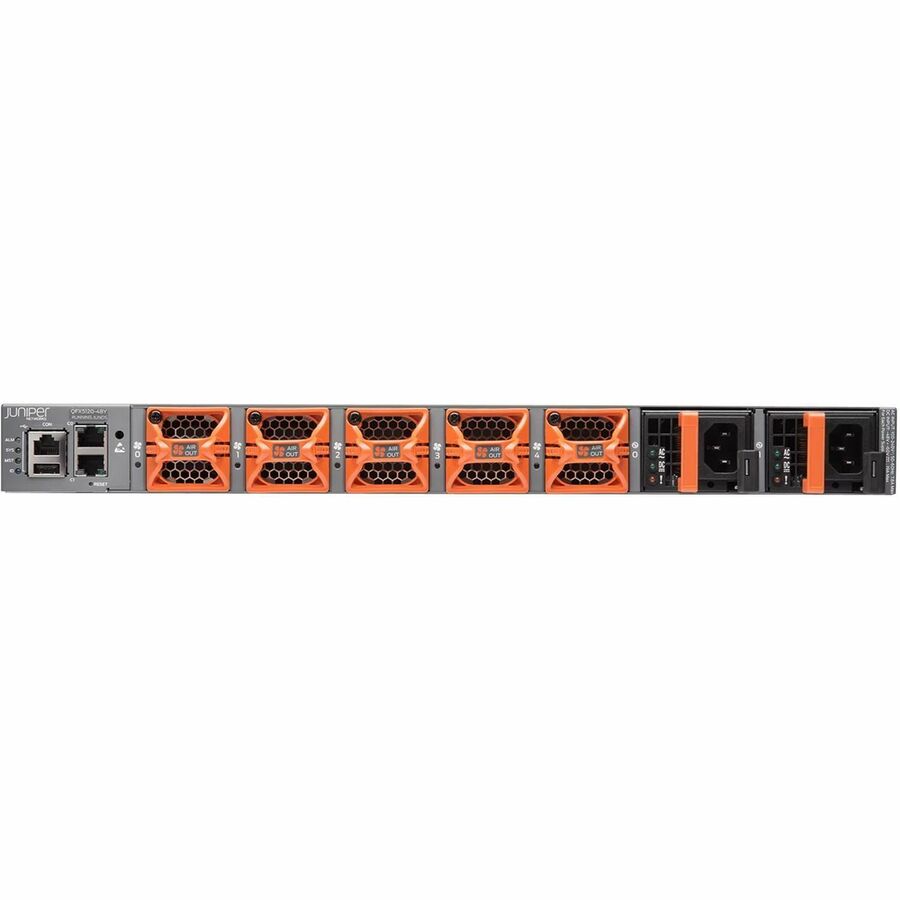

Power Description

Input Voltage	120 V AC 230 V AC -48 V DC -60 V DC
Frequency	50 Hz 60 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Power Consumption	450 W

Physical Characteristics

Miscellaneous

Application/Usage	Data Center Enterprise Business Network
Environmentally Friendly	Yes
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

1 Year
