16-PORT GIGABIT POE+ SWITCH

Name: 16-PORT GIGABIT POE+ SWITCH
Brand: INTELLINET
SKU: 5670AF
Price: 270.58 USD
Availability: InStock

INTELLINET

PCN#

5670AF

MFG#

561419

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$270.58

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

20 Ports
Gigabit Ethernet
1000Base
X, 10/100/1000Base
T, 100Base
TX
2 Layer Supported
Modular
2 SFP Slots
300 W Power Consumption
300 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
Desktop, Rack
mountable
3 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 12 lbs.

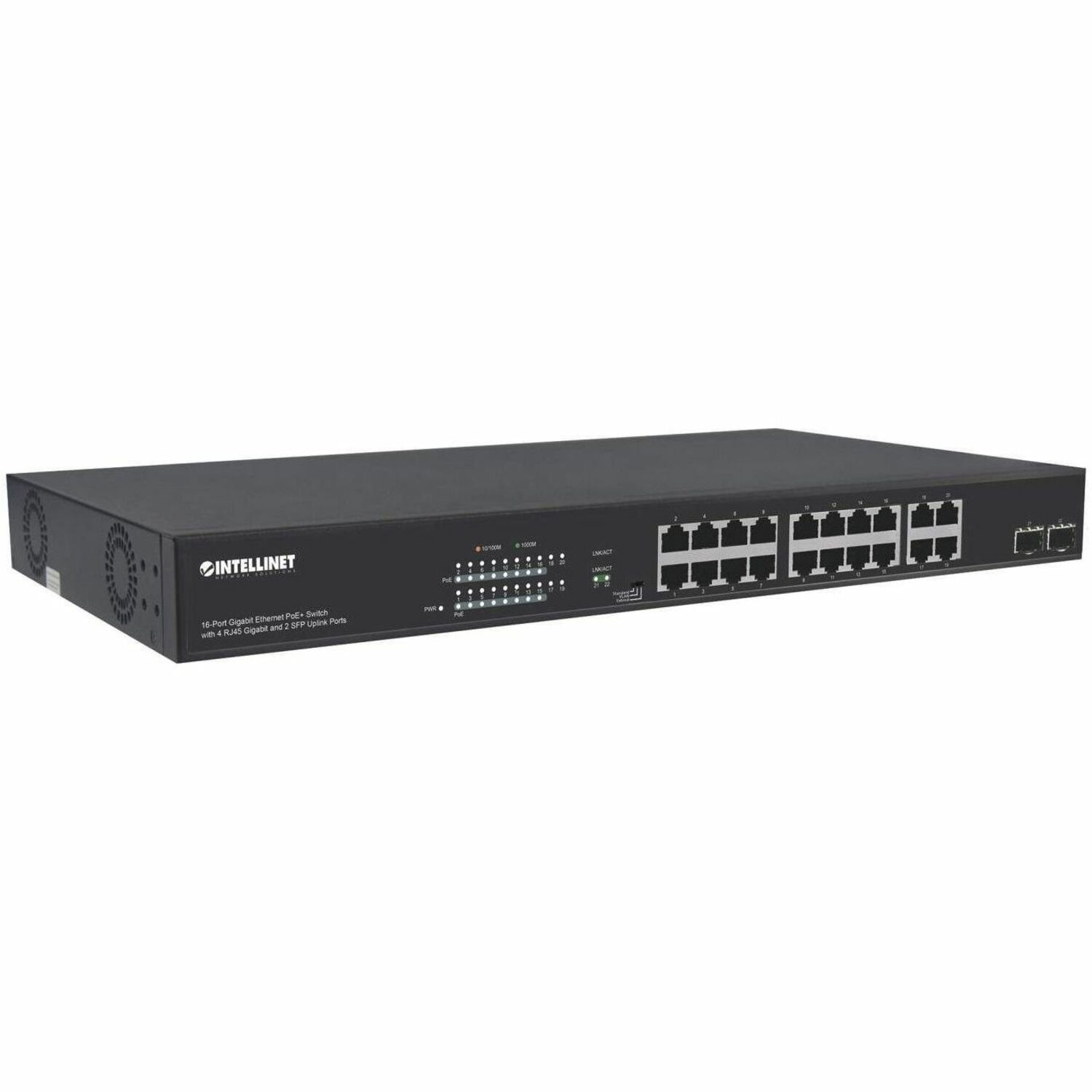

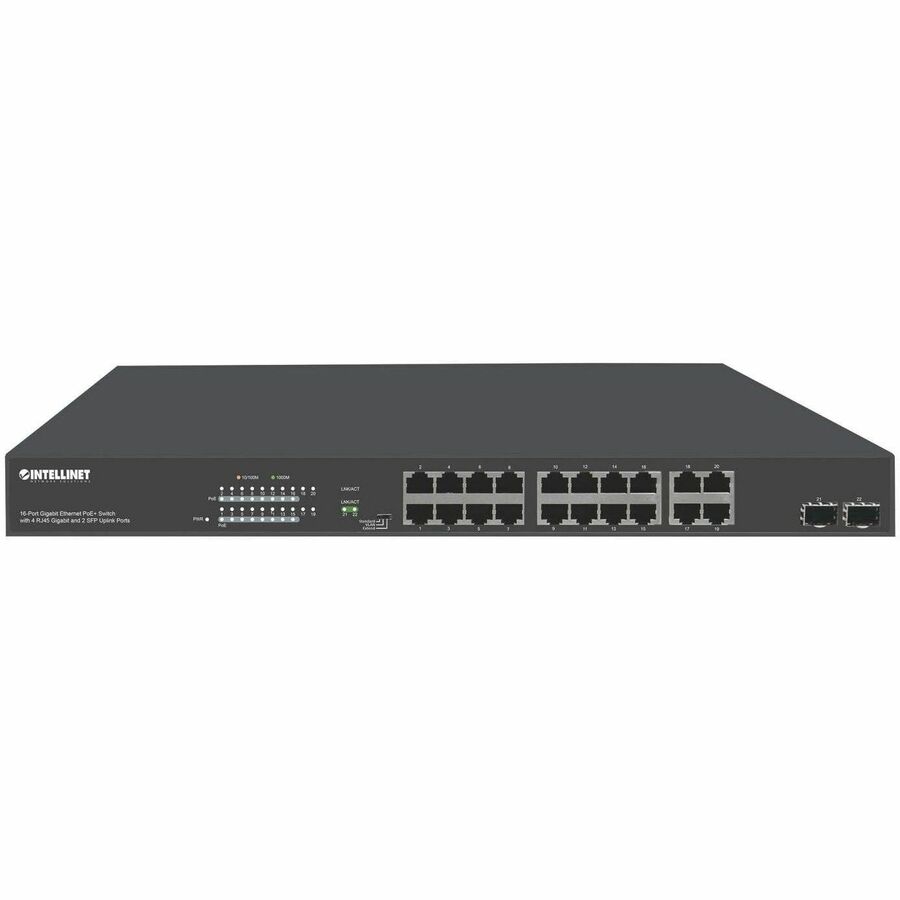

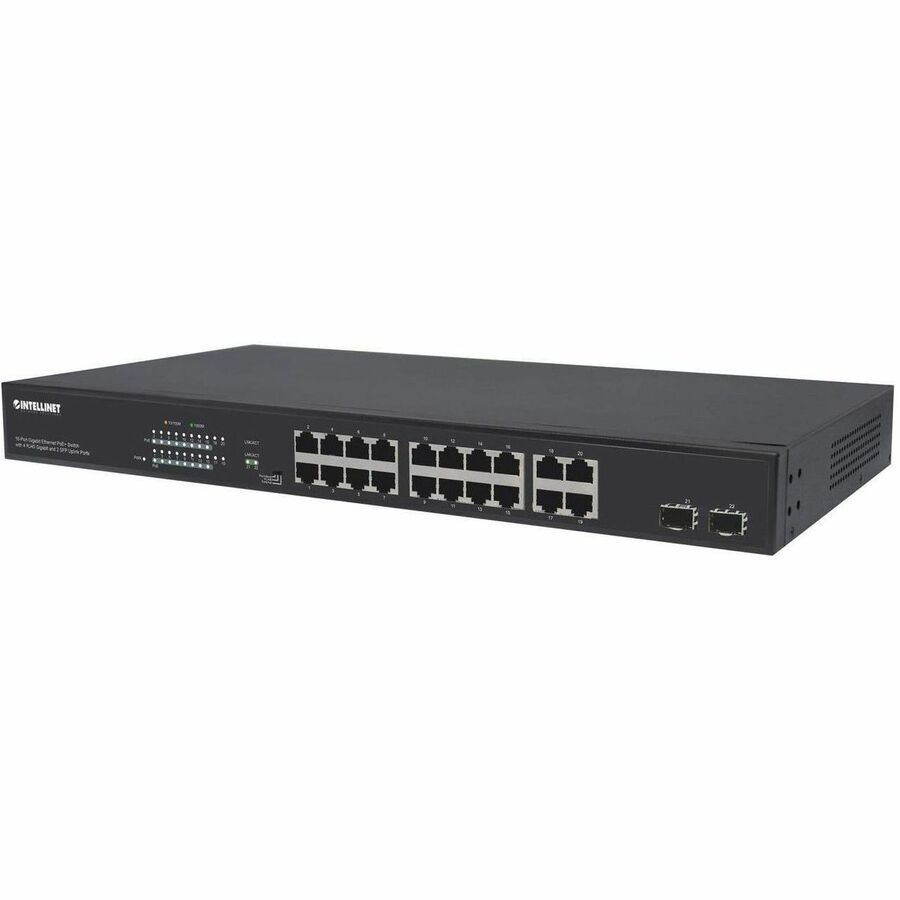

Intellinet 16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports

Overview

Tech Specs

Specifications

Manufacturer	IC INTRACOM
Manufacturer Part Number	561419
Manufacturer Website Address	http://www.icintracom.com
Brand Name	Intellinet
Product Model	561419
Product Name	16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports
Marketing Information	The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports passes both data and electrical power to a number of PoE-compatible devices via standard network cables. Equipped with 16 Gigabit Ethernet ports, the switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1,000 Mbps. Power over Ethernet 802.3at This high-powered switch supports the IEEE 802.3at protocol and can inject up to 32 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported. Thanks to its built-in short-circuit-, overload- and high-voltage-protection functions, your equipment is well-protected. For devices that are not 802.3at/af compliant (e.g., legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter. Equipped with 16 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, four RJ45 and two SFP uplink ports, the Intellinet Network Solutions switch offers plenty of performance for your computers, servers and other networking devices.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	20
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	20 x Gigabit Ethernet Network 2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X 10/100/1000Base-T 100Base-TX

I/O Expansions

Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	2

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3x IEEE 802.3 IEEE 802.3ab IEEE 802.3u

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	300 W
Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply AC
Power Consumption	300 W

Physical Characteristics

Product Material	Metal
Form Factor	Desktop Rack-mountable
Height	1.7"
Width	17.3"
Length	9.1"
Weight (Approximate)	11.02 lb

Miscellaneous

Package Contents	16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports Power Cable User Guide Rubber Feet 19" Mounting Brackets
Application/Usage	Wireless Access Point Network VoIP Phone IP Camera IP Phone
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
