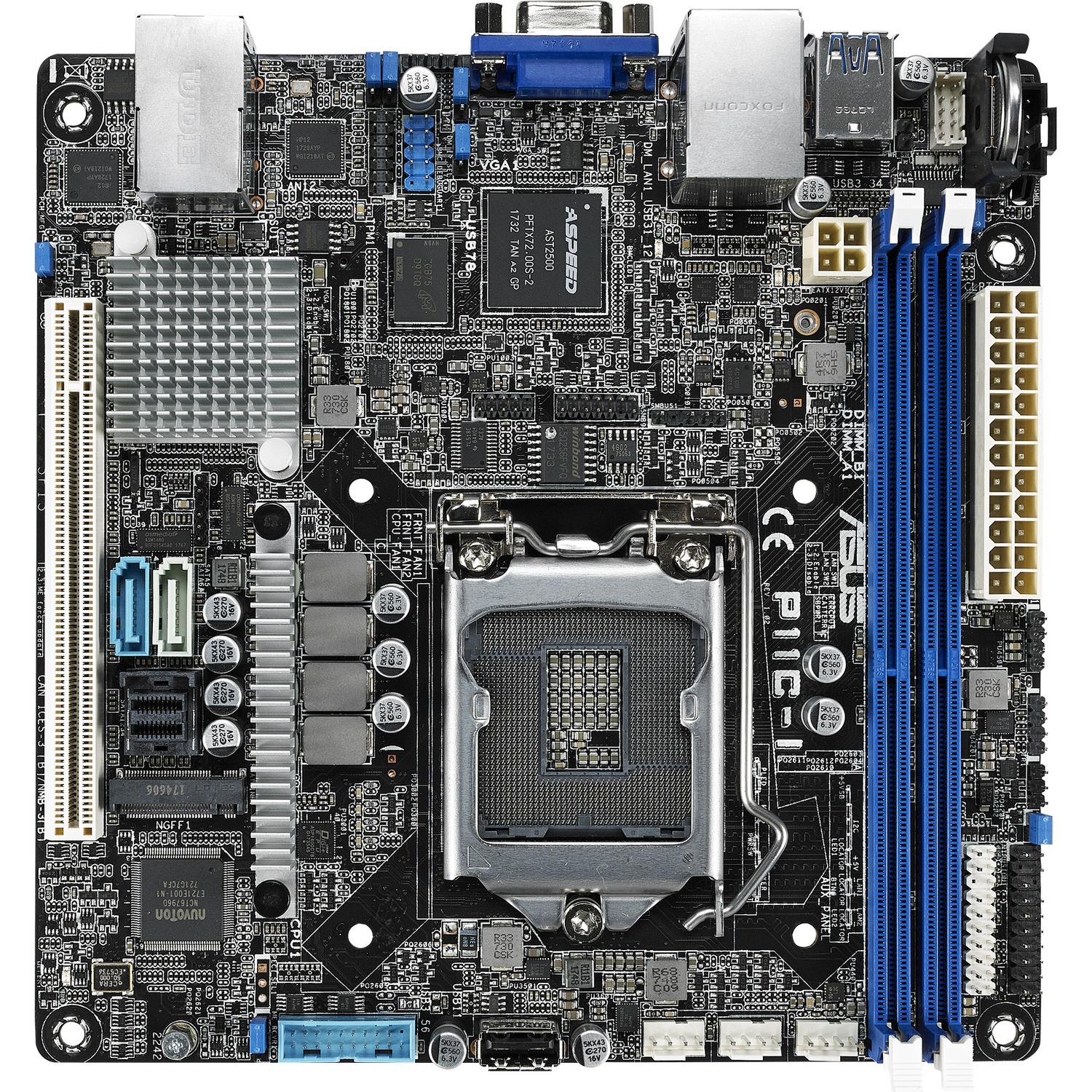

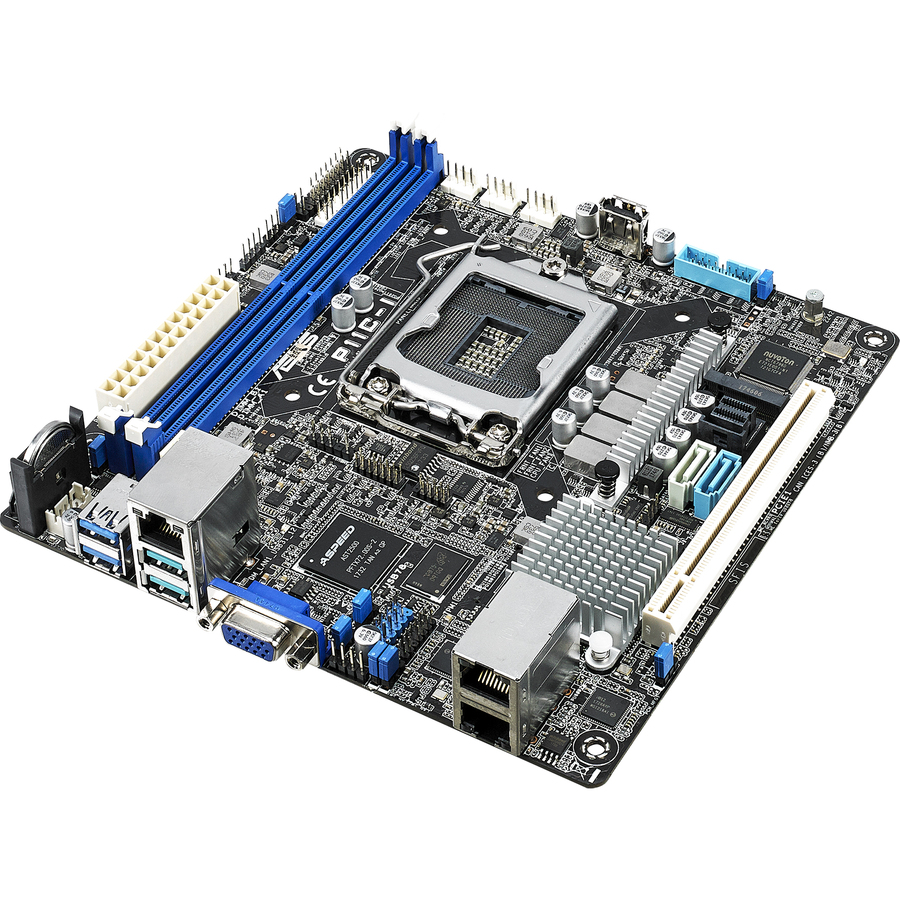

P11C-I LGA1151 DDR4EEC/NON-ECC UDIMM MINI-SAS HD M.2 C242 SERVERWS

ASUS P11C-I LGA1151 DDR4 EEC/non-ECC UDIMM Mini-SAS HD M.2 C242 Server Workstation Mini ITX Motherboard for Intel® Xeon® E-Series Processors with Dual Gigabit LAN and USB 3.1

• Intel® Mehlow Platform Mini ITX Motherboard for Intel® Xeon® E-Series Processors LGA1151 socket featuring M.2, USB 3.1, support for ECC/non-ECC DDR4 UDIMM and Intel® Optane™ Memory
• Dual Intel® I210AT Gigabit Ethernet with teaming support and additional dedicated management port
• Flexible NVMe Storage Options via high-speed mini-SAS HD connections and port-to-port OCuLink
• TPM-M 2.0 Ready with a 14.1 TPM header to securely store keys, digital certificates, passwords and data
• Complete IT Infrastructure Management with in-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching

Mini-ITX compact server board with multiple expandability options

P11C-I is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering dual server-class Intel® Ethernet and flexible expandability with M.2, six SATA 6G. The 6.7" x 6.7" Mini-ITX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.

The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.

Accelerated data-transfer speeds of up to 32Gbps with M.2

With PCIe 3.0 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe - that's up to 5.3X faster than traditional SSDs. P11C-I also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.

High-speed mini-SAS HD connections

P11C-I comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-I also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-I, making it a great upgrade option.

Dual Intel® I210AT Gigabit Ethernet

P11C-I features dual server-class Intel® Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

TPM-M 2.0 ready

P11C-I supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

Comprehensive IT infrastructure management

P11C-I features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers.
