HP SMART ARRAY AROC (ADAPTIVE RAID ON CHIP) P816I-A SR GEN10 16

Name: HP SMART ARRAY AROC (ADAPTIVE RAID ON CHIP) P816I-A SR GEN10 16
Brand: HPE
SKU: JS8288
Price: 4969.86 USD
Availability: InStock

HPE

PCN#

JS8288

MFG#

871041-001

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$4,969.86

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Free Shipping

Estimated Shipment:

Product Highlights:

12Gb/s SAS, Serial ATA/600
PCI Express 3.0 x8
Plug
in Module
RAID Supported
0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM RAID Level
4 x4 internal Mini
SAS ports
16 Total SAS Port(s)
16 SAS Port(s) Internal
4 GB Flash Backed Cache
CentOS, ClearOS, Hyper
V, Windows Server, Red Hat Enterprise Linux, SuSE Linux Enterprise Server Supported Operating System

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

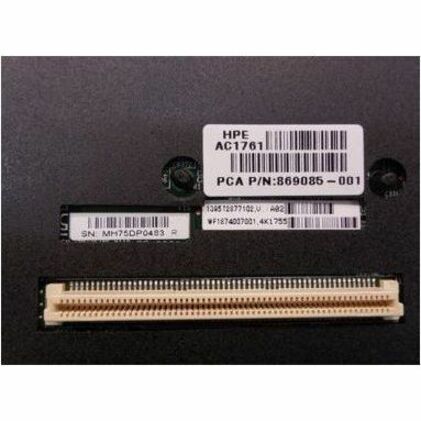

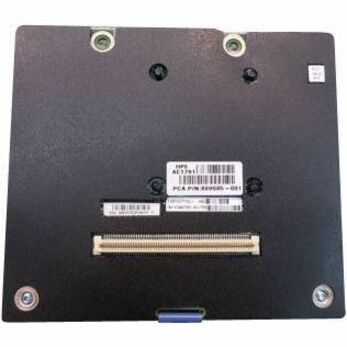

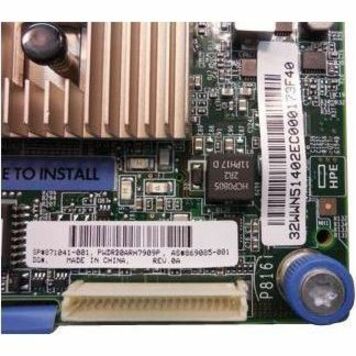

HPE - Certified Genuine Parts Smart Array P816i-a SR Gen10 SAS Controller

Overview

Tech Specs

Specifications

Manufacturer	HPE - Certified Genuine Parts
Manufacturer Part Number	871041-001
Manufacturer Website Address	https://imaginenext.ingrammicro.com/sourcing-and-certified-pre-owned
Brand Name	HPE - Certified Genuine Parts
Product Line	Smart Array
Product Series	P
Product Model	P816i-a SR Gen10
Product Name	Smart Array P816i-a SR Gen10 SAS Controller
Marketing Information	HPE Smart Array P816i-a SR Gen10 Controller The HPE Smart Array P816i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is ideal for maximizing performance while supporting advanced RAID levels with 4 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has 16 internal SAS lanes, allowing connection of up to 16 SAS or SATA drives without need for the SAS Expander Card providing point to point connectivity to SSDs for lower latency. It also offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption and accelerates access to data on HDDs with HPE Smart Array SR SmartCache which comes enabled on this controller. This type-a flexible/modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs.
Product Type	SAS Controller

Technical Information

Host Interface	PCI Express 3.0 x8
Controller Type	12Gb/s SAS Serial ATA/600
RAID Supported	Yes
RAID Levels	0 1 5 6 10 50 60 1 ADM 10 ADM
Data Backup Type	Flash Backed Cache
Device Supported	Server Storage System
Operating System Supported	CentOS ClearOS Hyper-V Windows Server Red Hat Enterprise Linux SuSE Linux Enterprise Server

Memory

Cache Memory

4 GB

Interfaces/Ports

Total Number of SAS Ports	16
Number of SAS Ports (Internal)	16
SAS Connector Details	4 x4 internal Mini-SAS ports

Physical Characteristics

Form Factor

Plug-in Module

Miscellaneous

Compatibility

HPE Apollo 4200 G10 192TB Hyb Nd Qumulo
HPE Apollo 4200 G10 336TB Arch Nd Qumulo
HPE Apollo 4200 Gen10 192TB Hybrid Node with 100Gb
HPE Apollo 4200 Gen10 336TB Archive Node with 25Gb
HPE Apollo 4200 Gen10 36TB Hybrid Node for Qumulo
HPE Apollo 4200 Gen10 36TB Hybrid Node with 25Gb N
HPE Apollo 4200 Gen10 90TB Hyb Nd Qumulo
HPE Apollo 4200 Gen10 90TB Hybrid Node with 25Gb N
HPE DL560 G10 8268 4P512G16SFF Reman Server
HPE DL560 G10 8268 512G 16SFF Reman Server
HPE DL560 Gen10 8164 256G 16SF Reman Server
HPE DL560 Gen10 8164 4P256GB Adv2 CN Server
HPE DL560 Gen10 8164 4P256GB Adv2 JP Server
HPE DL560 Gen10 8164 4P256GB Adv2 WW Server
HPE DL560 Gen10 8170 256G 16SF Reman Server
HPE DL560 Gen10 8170 4P256GB Adv CN Server
HPE DL560 Gen10 8170 4P256GB Adv JP Server
HPE DL560 Gen10 8170 4P256GB Adv WW Server
HPE DL560 Gen10 8264 4P256GB Adv2 CN Server
HPE DL560 Gen10 8264 4P256GB Adv2 JP Server
HPE DL560 Gen10 8264 4P256GB Adv2 WW Server
HPE DL560 Gen10 8268 4P 512G 16SFF Server
HPE DL560 Gen10 8268 4P512GB Adv CN Server
HPE DL560 Gen10 8268 4P512GB Adv JP Server
HPE DL560 Gen10 8268 4P512GB Adv WW Server
HPE OEM DL560G10 5122 GEHC Server
HPE OEM DL560G10 6126 GEHC Server
HPE OEM GEHC DL560G10 5122 2018 Server
HPE SA P816i-a SR Gen10 LH FIO Ctrlr
