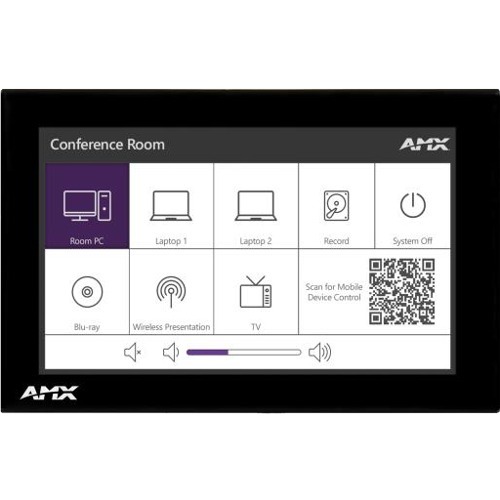

AMX 7" N-Touch Wall Mount Touch Panel

The NT-SD-701 and NT-ST-701 N-Touch Panels allow you to easily add a control interface to your SVSI system. Each touch panel combines a high-quality user interface and controller into a single unit, enabling user control of SVSI devices in conference rooms, classrooms, and other types of spaces.

With a generous selection of mounting options, the NT-SD-701 can be placed on any flat surface (including glass) inside a conference room or classroom. Key features include control of network-based devices, a brilliant 24-color depth, and PoE connectivity - all at an economical price point.

• 7" N-Touch Wall Mount Touch Panel
• Wall Mounting Template
• Backbox, Wall Mount, 7"

TOUCH SCREEN DISPLAY

• Display Type: TFT Active Matrix Color LCD with Fringe Field Switching (FFS) - Wide Viewing Angle Technology
• Display Size (WH): 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
• Viewable Area (WH): 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
• Resolution (WH): 1024x600
• Aspect Ratio (WH): 16:9
• Brightness: 400 cd/m2
• Contrast Ratio: 800:1
• Color Depth: 16.7M colors
• Illumination: LED
• Touch Overlay: Resistive
• Viewing Angle: 89°/89°/89°/89° (Up/Down/Left/Right)

MEMORY

• SDRAM: 512 MB
• Flash: 4 GB
• Maximum Project Size: 1 GB flash available to user

COMMUNICATIONS

• ETHERNET: 10/100 port, RJ-45 connector. Supported IP and IP-Based Protocols: UDP, TCP, DHCP, HTTP, HTTPS
• USB: (1) USB host 2.0, Type A port: future use

AUDIO

• Microphone: -42dB ± 3dB sensitivity FET microphone
• Speakers: 4 ohm, 1.5 Watt, 500Hz cutoff frequency

GRAPHICS ENGINE

• SVSI N-Touch: The UI Engine is the SVSI N-Touch technology, based on HTML5 and Javascript

FRONT PANEL COMPONENTS

• Top Button: Use top button for factory restoration
• Red/Green LEDs: Programmable LEDs on left and right side.

CONNECTIONS

• Ethernet: 10/100 port, RJ-45 connector
• USB: (1) USB host 2.0, Type A port
• Power: PoE (Power over Ethernet), 802.3af, class 0

ENVIRONMENTAL

• Temperature (Operating): 32° F to 104° F (0° C to 40° C)
• Temperature (Storage): 4° F to 140° F (20° C to 60° C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation
• On: 27.3 BTU/hr
• Standby: 10.9 BTU/hr

• Conference Room
• Classroom

• WEEE
• RoHS
