Martin MAC Encore Wash WRM Special Effect Light

HIGH QUALITY WARM LIGHT SOFT EDGE MOVING HEAD

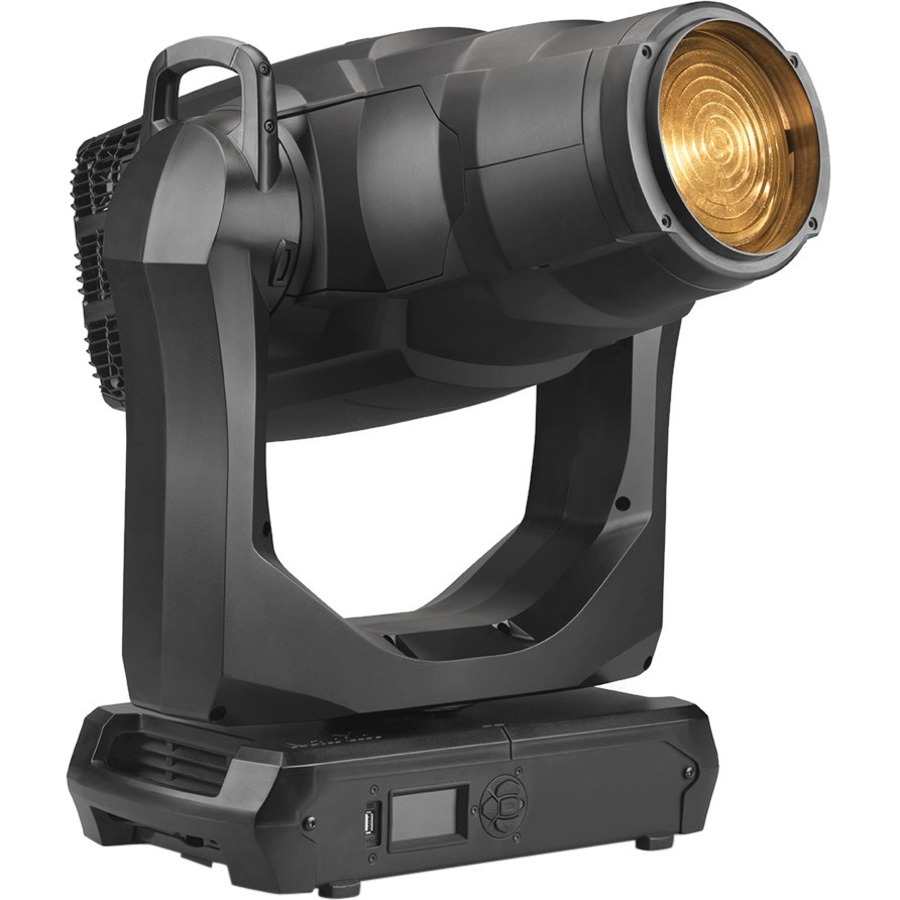

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash WRM is a perfect, LED-based, replacement for the much-loved, discontinued MAC TW1. The feature-packed soft edge moving head offers unparalleled 3000 K warm tungsten emulation that truly challenges the output quality of a real incandescent light source, and doubles as a modern replacement for generic fixtures like tungsten based Fresnel fixtures, with the additional benefit of color mixing and movement.

• Unparalleled 3000 K warm white light quality
• Super silent cooling and effects operation
• Best-in-class size/weight/performance ratio

Designed for real life applications, its pure white 3000 K CCT offers the most comprehensive spectrum available to date in a soft edge LED moving head. High CRI, TM-30 and R9 values, ensure that skin tones, costumes, set pieces, and more will render their true colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

WHISPER-SILENT

This is the most silent, soft edge moving head we've ever built. All motorized effect operations-cooling fans, barndoors, iris, zoom, pan and tilt-are engineered for applications where strict noise levels are a necessity. Even while running at maximum operation mode, MAC Encore Wash WRM is still a stealth operator.

COLOR PALETTE

Precise color temperature control with variable color temperature correction (CTB) that stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options to match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries.

A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.

INTERNAL BARNDOORS

Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam's wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.

• MAC Encore Wash WRM Special Effect Light
• 2 x Omega Brackets with 1/4 Turn Fasteners for Rigging Clamp Attachment

• Protection rating: IP20

DYNAMIC EFFECTS:

• Color mixing: CMY, independently variable 0 - 100%
• Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
• Iris: Variable 0 - 100%
• Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation
• Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
• Zoom: Motorized
• Pan: 540°
• Tilt: 268°
• Position correction system: Absolute position monitoring
• Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity

• DMX channels: 24
• 16-bit control: Dimming, pan and tilt
• Movement control options: Tracking and vector
• Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
• Fixture Identification: User-settable ID number
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Transceiver: Opto-isolated RS-485
• Fixture software update: USB memory device or over DMX link

• Minimum LED lifetime: 50,000 hours (to >80% luminous output)
• Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4)
• Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5)

• Light engine luminous output: ? 39,400 lumens
• Fixture luminous output with Fresnel lens (standard): 11,000 lumens
• Fixture luminous output with PC lens (optional): 12,000 lumens
• CRI (Color Rendering Index): >80
• CQS (Color Quality Scale): >80
• TM-30 Rf (IES TM-30-15 Fidelity Index): >80
• TM-30 Rg (IES TM-30-15 Gamut Index): >96
• TLCI (Television Lighting Consistency Index): >70
• CCT: 6000 K (+/- 250 K)

• Mounting points: 4 pairs of 1/4-turn locks
• Orientation: Any
• Minimum distance to combustible materials: 0.2 m (8 in.)
• Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

CONNECTIONS:

• AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
• DMX and RDM data in/out: 5-pin locking XLR

• AC power: 120-240 V nominal, 50/60 Hz
• Power Consumption: 64 W
• Power supply unit: Auto-ranging electronic switch-mode
• Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
