QVGA RADIOMETRIC BULLET

Name: QVGA RADIOMETRIC BULLET
Brand: HANWHA TECHWIN AMERICA
SKU: JQ8172
Price: 3562.05 USD
Availability: InStock

HANWHA TECHWIN AMERICA

PCN#

JQ8172

MFG#

TNO-C3030TRA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,562.05

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

H.265, H.264, MJPEG, H.265M, H.265B, H.265H, H.264M, H.264B, H.264H
9.70 mm Fixed Lens
30 fps
Gigabit Ethernet
USB
Pole Mount, Corner Mount, Gang Box Mount, Conduit Mount, Backbox Mount
IK10
IP66
Motion Detection, Privacy Masking, Vehicle Detection, Human Detection, AI Analytics, Audio Detection, Shock Detection, Alarm Triggering, SD Card Local Storage, PTZ

Product Condition: New and Factory Fresh

Shipping Weight: 5 lbs.

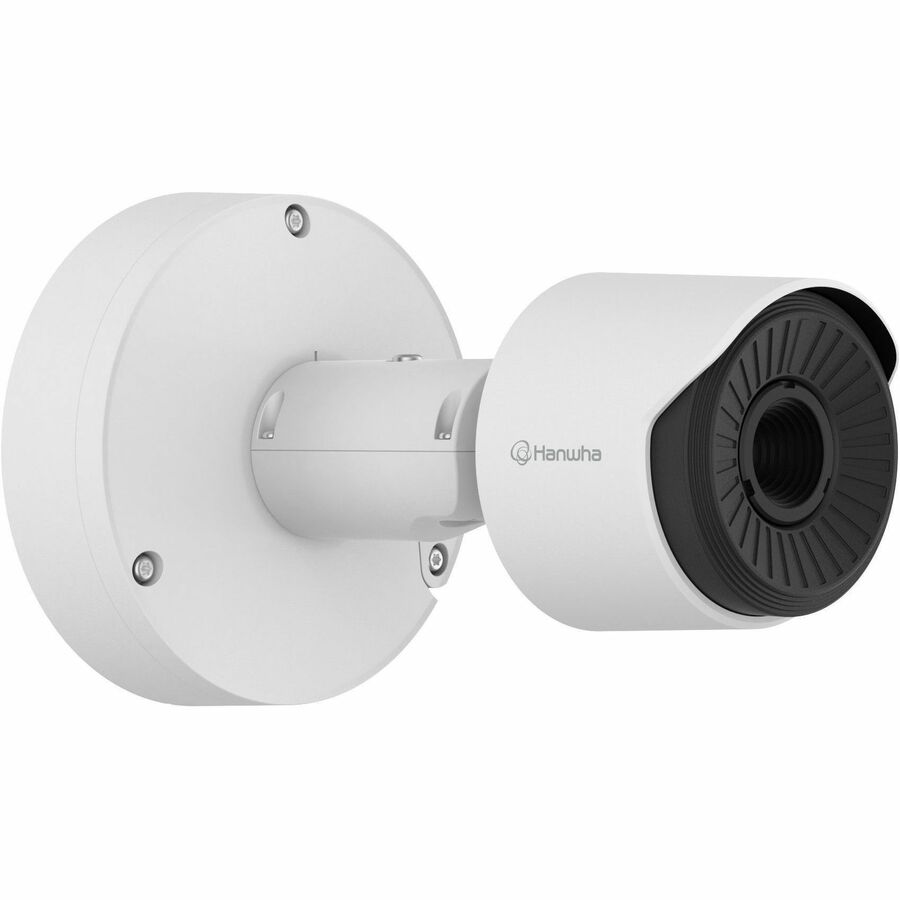

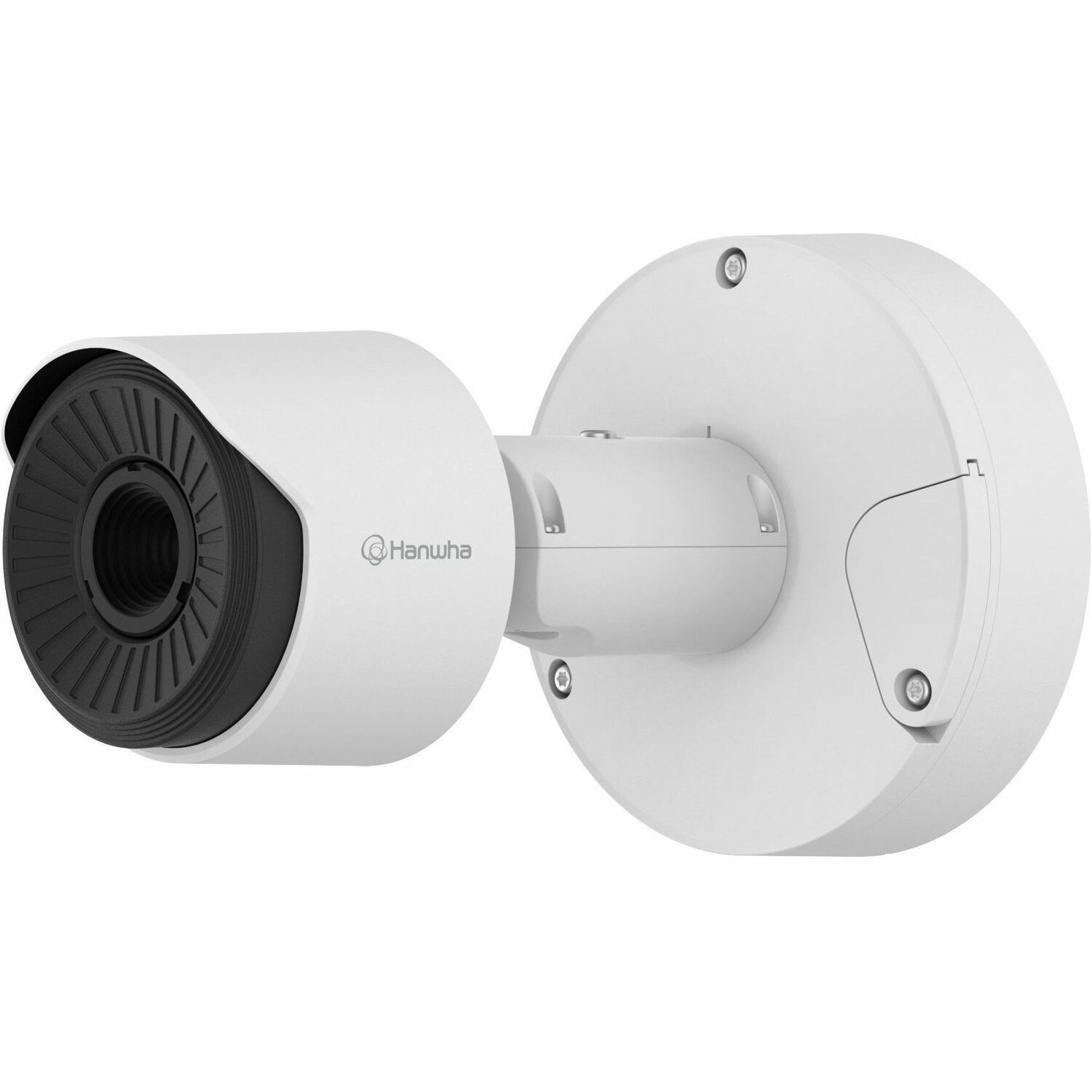

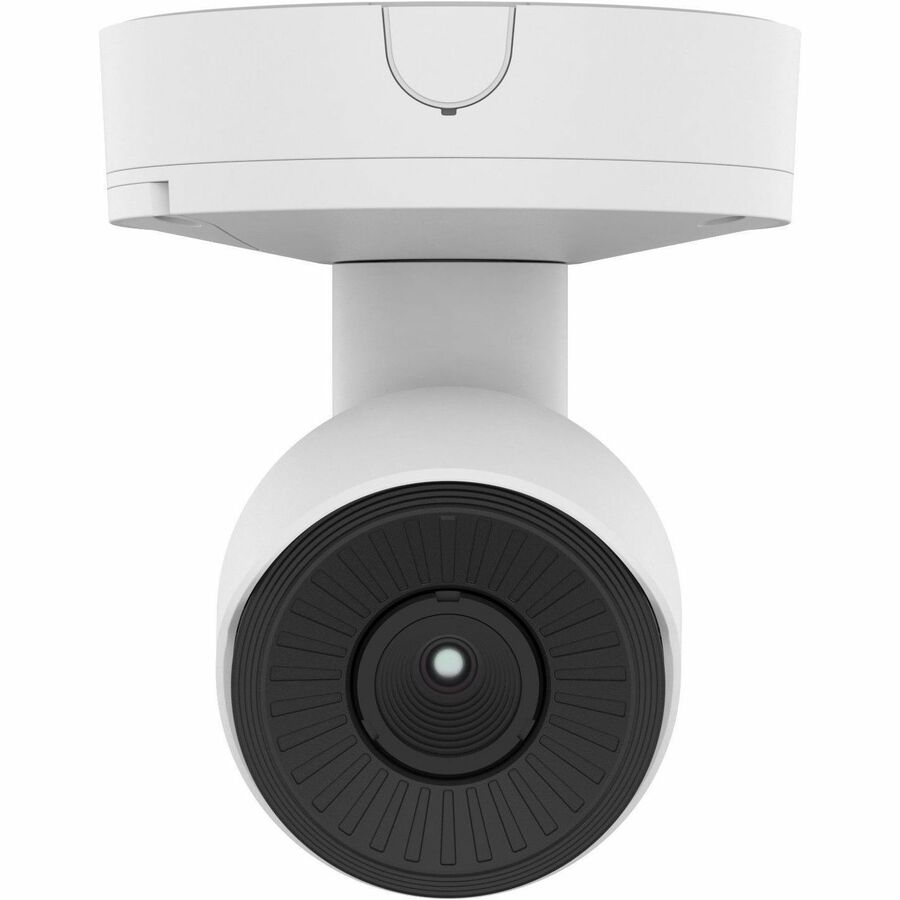

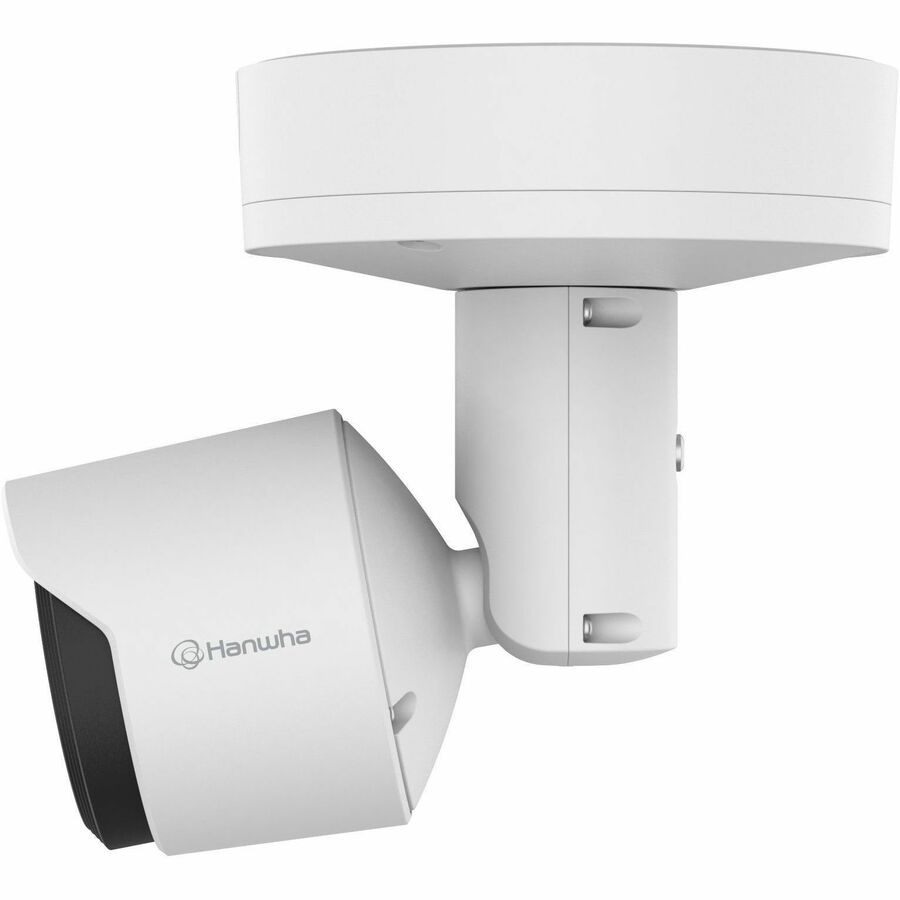

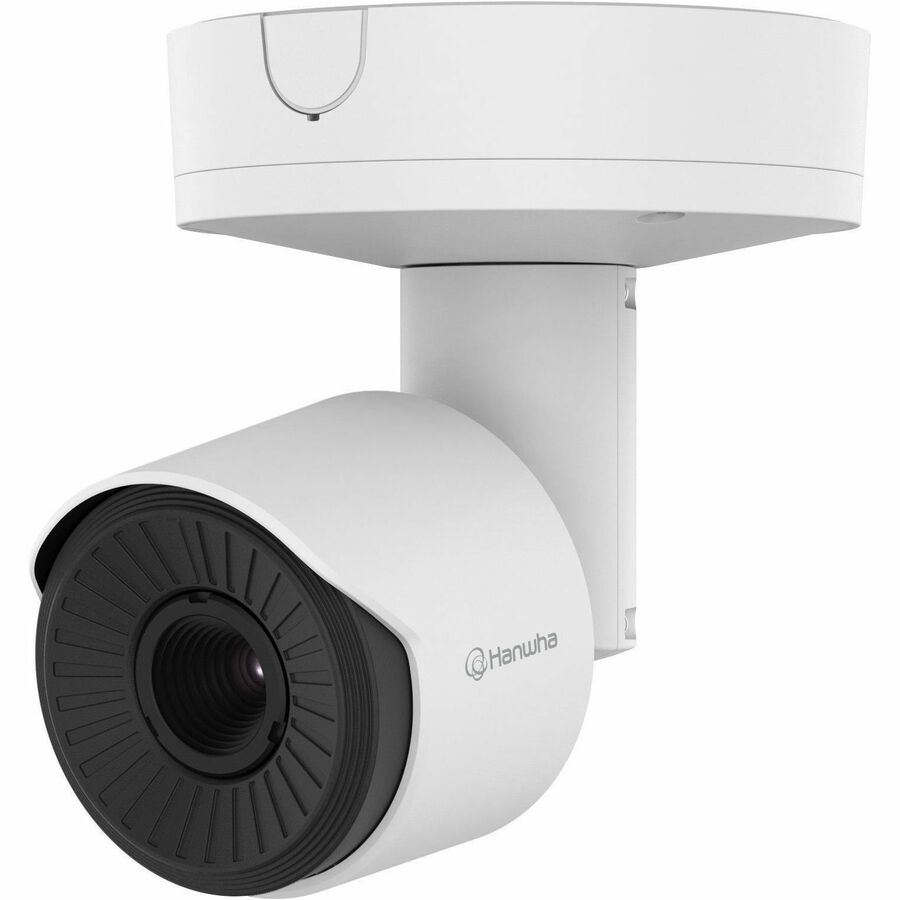

Hanwha TNO-C3030TRA Network Camera - Color - Bullet - White

Overview

Tech Specs

Specifications

Manufacturer	Hanwha Group
Manufacturer Part Number	TNO-C3030TRA
Manufacturer Website Address	http://www.hanwha.com
Brand Name	Hanwha
Product Model	TNO-C3030TRA
Product Name	Radiometric AI Thermal Camera
Product Type	Network Camera

Technical Information

AI-powered

Yes

Display & Graphics

Thermal Image Sensor Type	Uncooled Microbolometer
Color Supported	Color
Field of View	H: 37.9° / V: 28.7° / D: 46.7° (iFoV: 1.8 mRad )

Video

Video Formats	H.265 H.264 MJPEG H.265M H.265B H.265H H.264M H.264B H.264H
Thermal Video Resolution	768 x 576
Maximum Frame Rate	30 fps

Lens

Lens Type	Fixed
Maximum Focal Length	9.70 mm
Lens Included	Yes
Maximum Aperture	f/1.0

Exposure

PTZ Modes

Preset Point

Network & Communication

Connectivity Technology	Wired
Ethernet Technology	Gigabit Ethernet
Protocols	IPv4 IPv6 TCP/IP UDP/IP RTP/UDP RTP/TCP RTCP RTSP NTP HTTP HTTPS SSL/TLS DHCP FTP SMTP ICMP IGMP SNMPv1/v2c/v3 (MIB2) ARP DNS DDNS QoS UPnP Bonjour LLDP CDP SRTP TCP UDP Unicast MQTT ONVIF Multicast
Remote Management	Yes

Storage

Storage Type	Memory Card
Internal Memory	512 MB

Interfaces/Ports

USB	Yes
Network (RJ-45)	Yes

Power Description

Maximum Power Consumption	10.80 W
Input Voltage	12 V DC
Power Source Type	PoE DC

Physical Characteristics

Mount Type	Pole Mount Corner Mount Gang Box Mount Conduit Mount Backbox Mount
Form Factor	Bullet
Color Family	White
Product Color	White
Product Material	Aluminum Polycarbonate
Diameter	3.7"
Weight (Approximate)	3.75 lb

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-58°F (-50°C)
Maximum Storage Temperature	140°F (60°C)
Maximum Operating Humidity	95%
Maximum Storage Humidity	95%

Miscellaneous

Features	Motion Detection Privacy Masking Vehicle Detection Human Detection AI Analytics Audio Detection Shock Detection Alarm Triggering SD Card Local Storage PTZ
Package Contents	Radiometric AI Thermal Camera Backbox
Impact Protection Rating	IK10
Ingress Protection Rating	IP66
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
