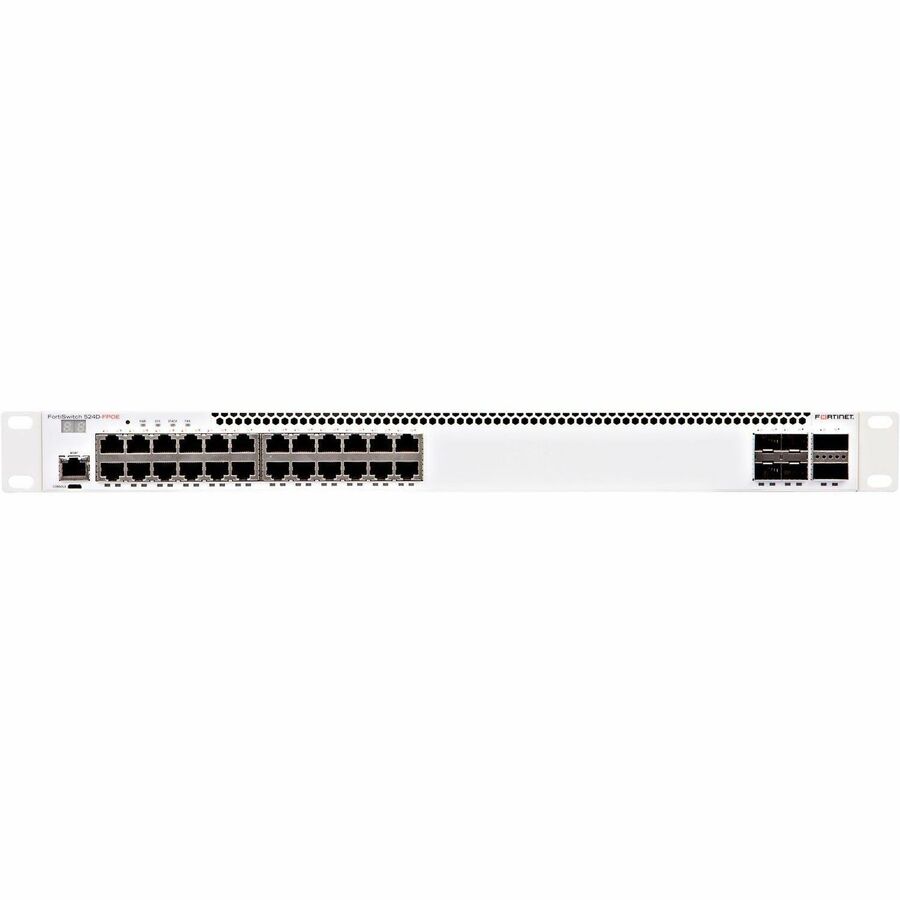

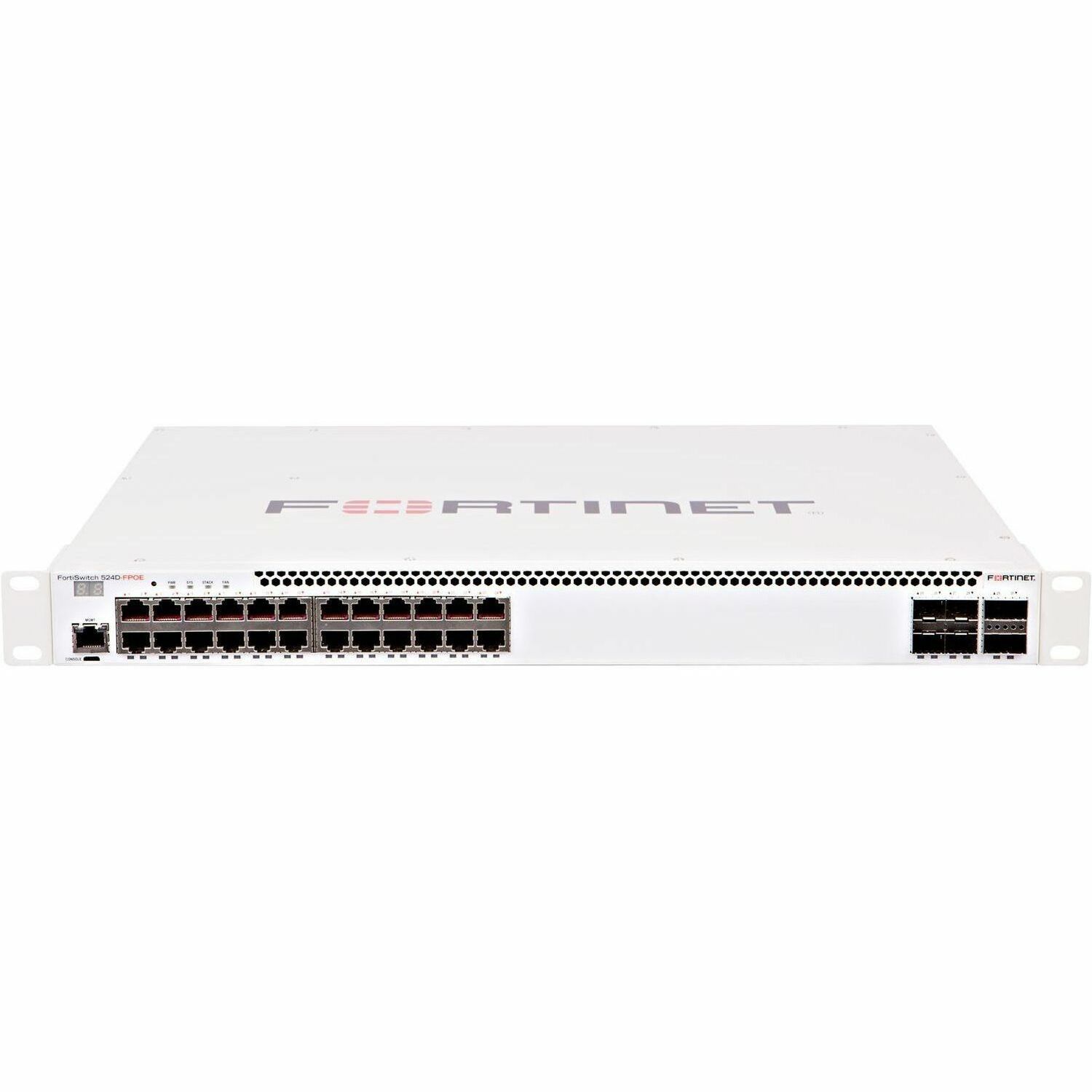

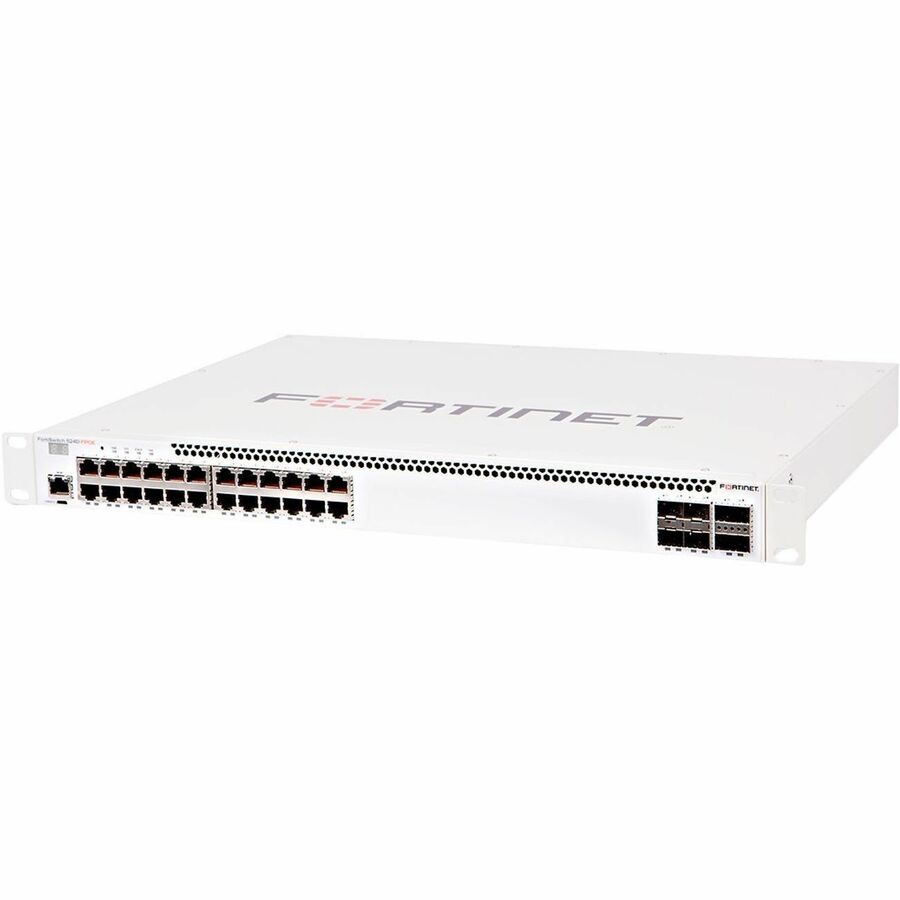

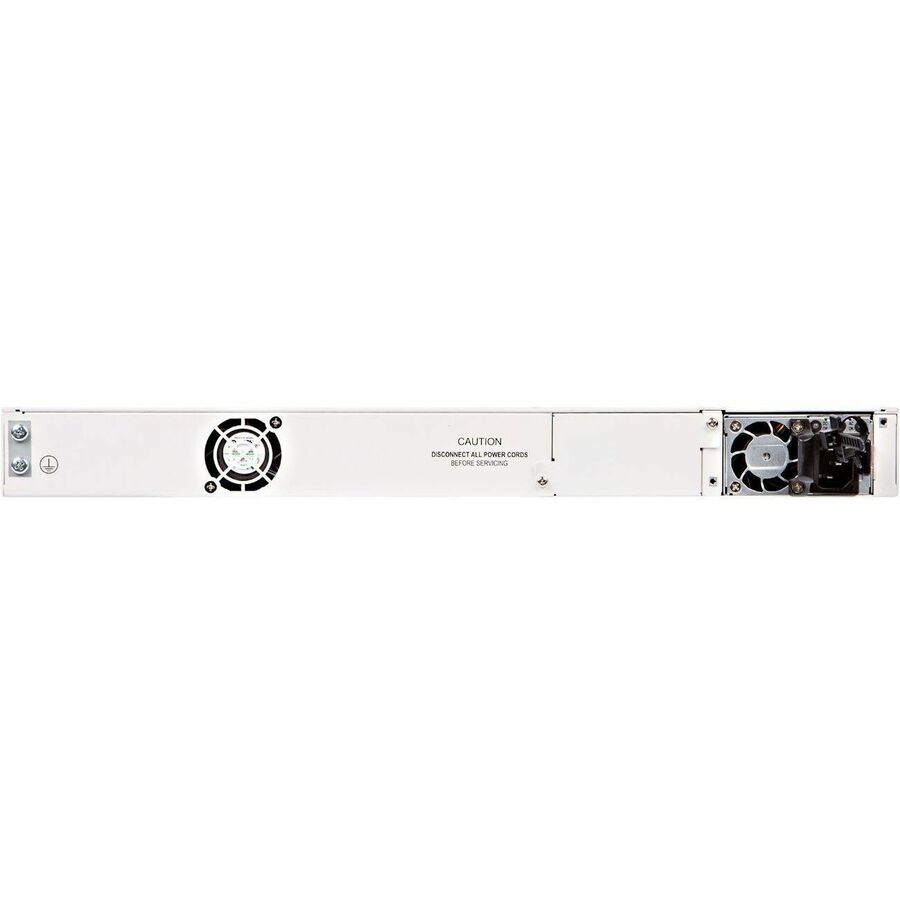

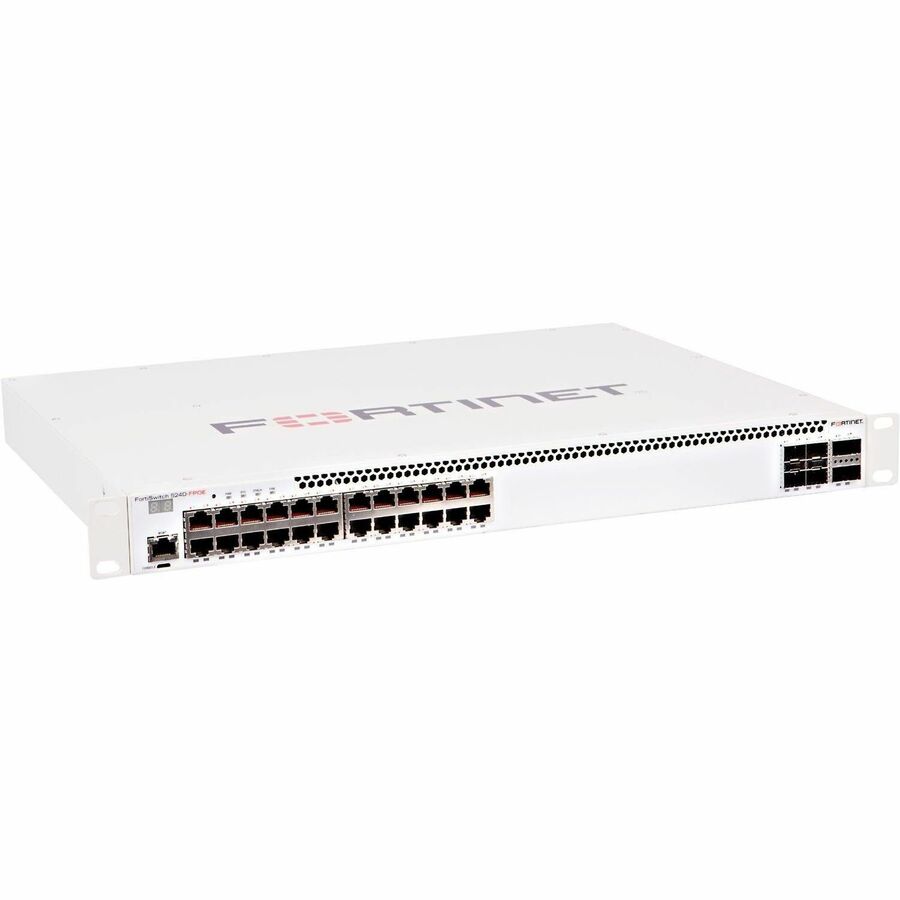

Fortinet FortiSwitch FS-500 524D-FPOE Ethernet Switch

Name: Fortinet FortiSwitch FS-500 524D-FPOE Ethernet Switch
Brand: FORTINET
SKU: 1Z5921
Price: 3697.5 USD
Availability: InStock

FORTINET

PCN#

1Z5921

MFG#

FS-524D-FPOE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,697.50

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Ports
Manageable
Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet
10GBase
X, 40GBase
X, 10/100/1000Base
T
3 Layer Supported
Modular
579 W Power Consumption
400 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
1U High
Rack
mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 15 lbs.

Fortinet FortiSwitch FS-500 524D-FPOE Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Fortinet, Inc
Manufacturer Part Number	FS524DFPOE
Manufacturer Website Address	http://www.fortinet.com
Brand Name	Fortinet
Product Line	FortiSwitch
Product Series	FS-500
Product Model	524D-FPOE
Product Name	FortiSwitch FS-500 524D-FPOE Ethernet Switch
Marketing Information	Security, Performance, and Manageability The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat- conscious businesses of all sizes. Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access. Integration \| Security Fabric Integration through FortiLink FortiLink is an innovative proprietary management protocol that allows our FortiGate Next- Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	24
Uplink Port	Yes
Modular	Yes
Stack Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	24 x Gigabit Ethernet PoE 4 x 10 Gigabit Ethernet Expansion Slot 2 x 40 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet 40 Gigabit Ethernet
Network Technology	10GBase-X 40GBase-X 10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots	6.0
Expansion Slot Type	SFP+ QSFP+
Number of SFP+ Slots	4

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.3af IEEE 802.3at IEEE 802.1D IEEE 802.1w IEEE 802.1s IEEE 802.1Q IEEE 802.3ad IEEE 802.1AX IEEE 802.3x IEEE 802.3 IEEE 802.3ab IEEE 802.3az IEEE 802.3u IEEE 802.3z IEEE 802.3ae IEEE 802.3bz IEEE 802.1x IEEE 802.1ab IEEE 802.1ae IEEE 802.1ad IEEE 802.3bj IEEE 802.3bm IEEE 802.1p

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	400 W
Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Power Consumption	579 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	13.8"
Weight (Approximate)	15.70 lb

Miscellaneous

Application/Usage

Business
Network
Data Center
Campus

Warranty

Limited Warranty

Lifetime
