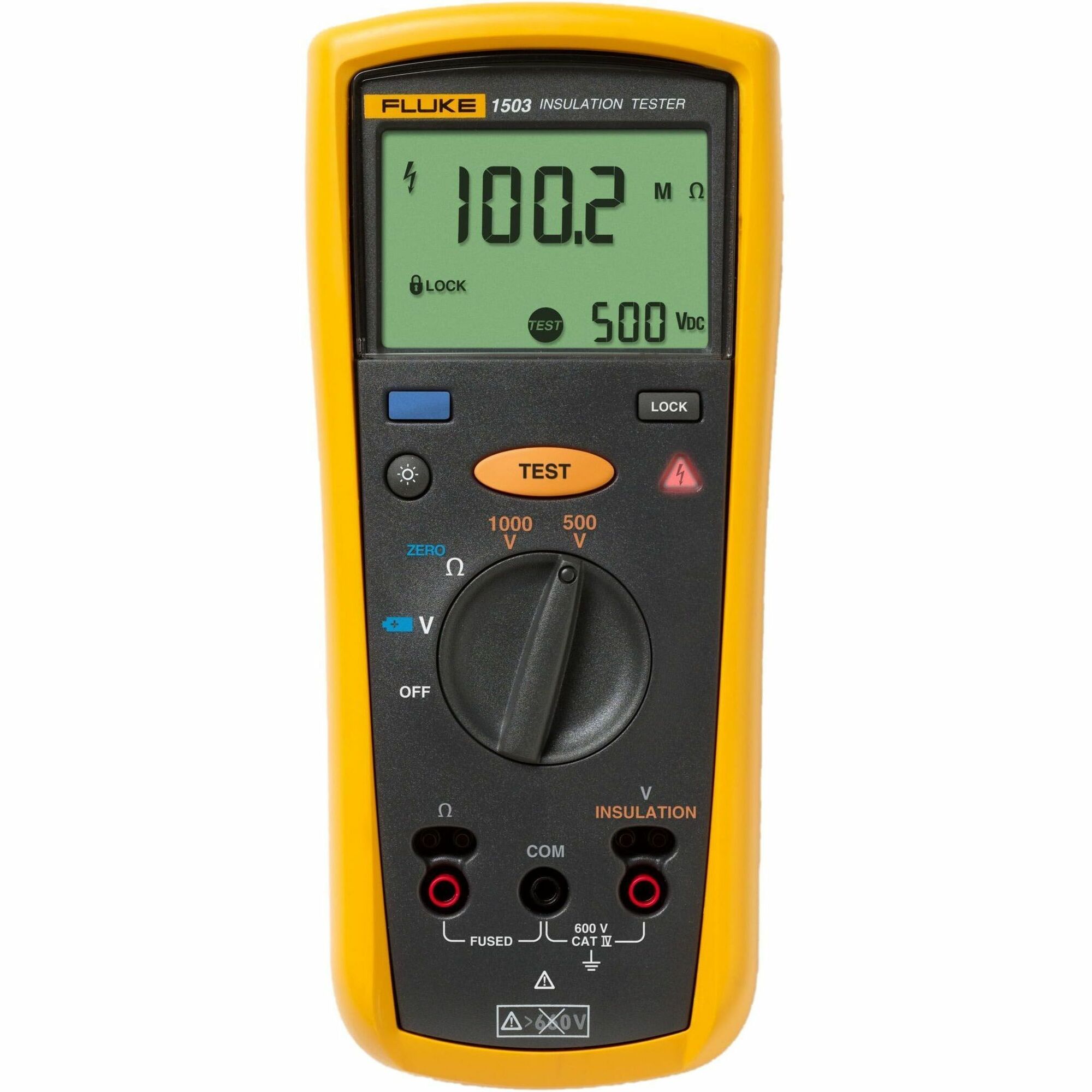

Fluke Fluke 1503/EX-LEAD Extended Lead Insulation Resistance Meter Kit

Compact, rugged, reliable, and easy to use, this insulation resistance tester features multiple test voltages, which is ideal for many troubleshooting, commissioning, and preventative maintenance applications. Additionally, it comes equipped with a remote probe, test leads, test probes, alligator clips, and 50' test lead.

Handle all the basic insulation testing needs with this insulation resistance tester.

Ideal for basic residential and commercial electrical insulation testing, this rugged, compact, and easy to use tool fits in the palm of your hand. You can depend on it to handle the most common tests and additional features, such as the remote probe, decreases the time needed to perform repetitive testing.

Features

• A rugged, compact insulation resistance tester for residential and commercial electricians
• Performs insulation tests from 0.01 to 2000 MΩ
• Offers two insulation test voltages: 500 and 1000 V
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Measures resistance from 0.01 to 20.00 kΩ
• Measures AC/DC voltage from 0.1 to 600 V
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Runs on 4 x AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
• Save battery power with auto power off

Applications

• Troubleshooting
• Commissioning
• Preventative maintenance

• Residential
• Commercial

• Insulation Resistance Tester
• Remote Probe
• 50' Test Lead
• Test Leads
• Test Probes
• Alligator Clips
• User Documentation
• 4 x Battery
