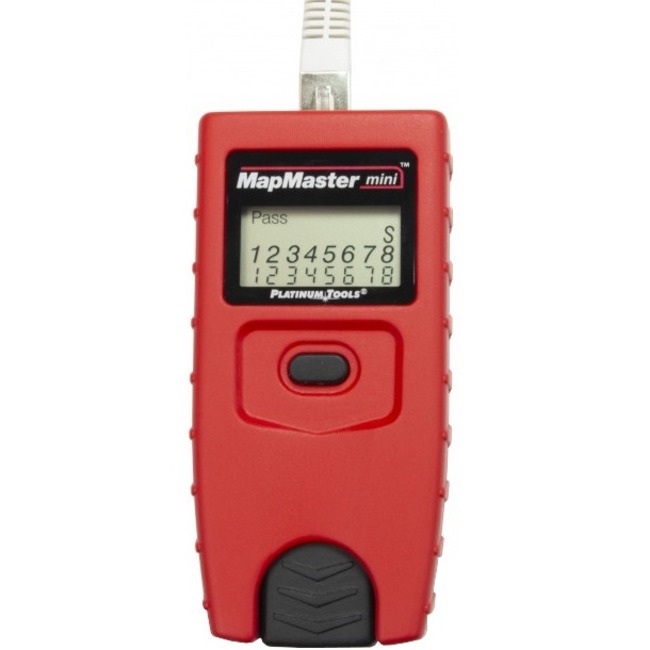

MAPMASTER MINI CLAMSHELL

The MapMaster™ mini detects faults and locations of RJ45 network cables. Good terminations, causes of faults and locations of cables are displayed on an LCD display. A set of five mapping remotes is included for locating cables terminated in wall jacks or patch panels. A built-in tone generator with 4 different tone combinations can be used with a tone probe to detect where a cable is routed and the location of the end of the cable.

• Detects Shorts, Opens, Miswires, Reversals, and Split-Pairs
• Built-in Tone Generator
• Map Multiple Locations
• Auto-off to Extend Battery Life

Application

• Installation, troubleshooting, and maintenance on network cables
• Identify patch panel port where network cable is terminated
• Determine wiring condition
• Identify up to 5 network cable runs at a time
• Find and fix position of exposed or hidden cables

• Cable Fault Testing
• Twisted Pair Cable Testing
• Tone Detection
• Short Circuit Testing
• Open Circuit Testing
• Mismatched Wiring Testing
• Reversed Pair Testing
• Split Pair Testing

• MapMaster mini Pocket Cable Test
• #1-5 ID Only Remotes
• Clamshell
